Main Body Dimensions
– Main Body 156 x 103 x 26.5 (mm) / 6.14 x 4.06 x 1.04 (inch)
– Weight 0.3kg / 0.66lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

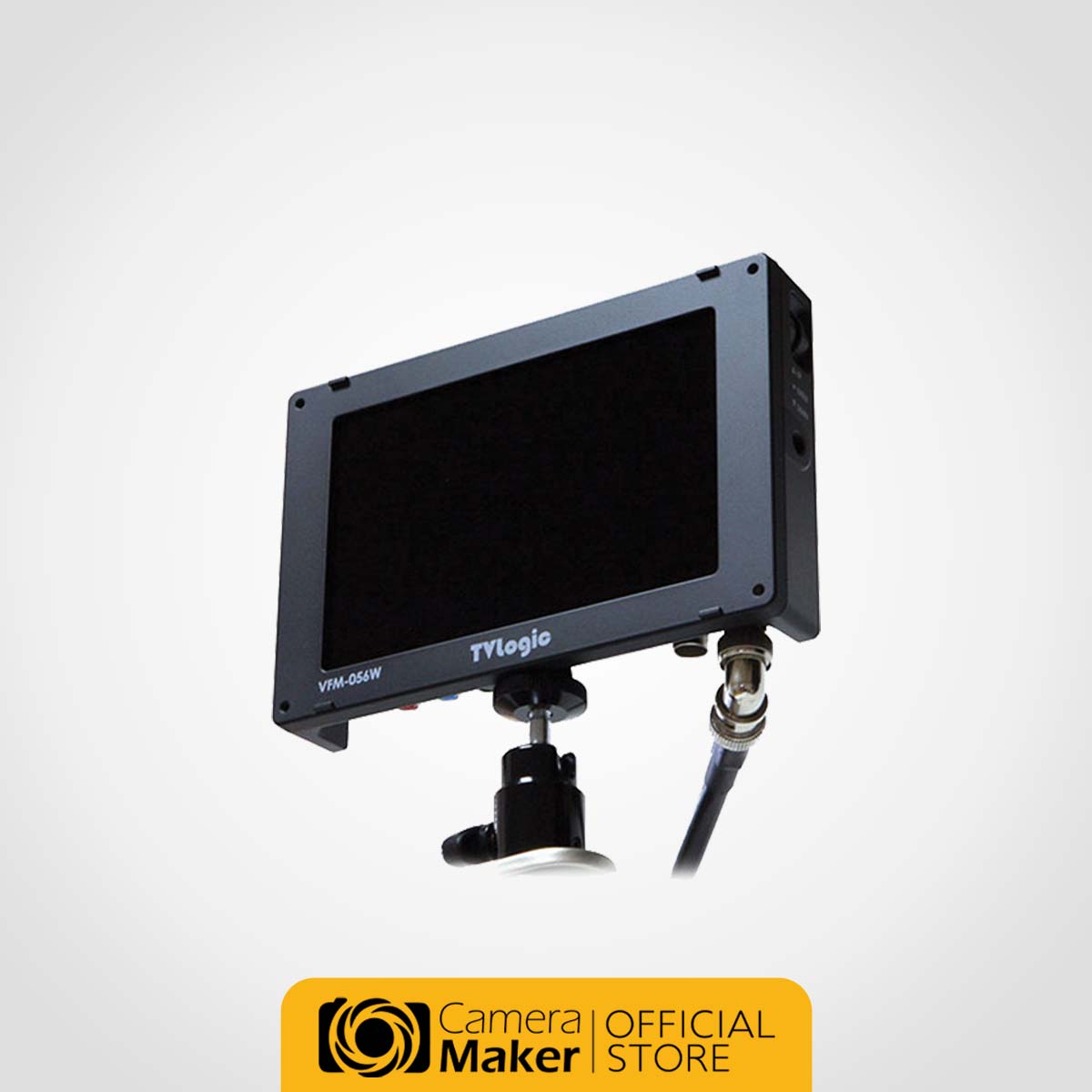

The VFM-056WP is available in two configurations and is ideal for HD-SLR production. A 6″x 4″x 1″ lightweight magnesium-alloy case houses a 5.6” 1280×800 LED backlit LCD display with a full complement of preferred eatures, including DSLR Scale, Focus Assist, Various Scan Models, Markers, Audio Level Metering with speaker, Time code Display, HDMI loop out via HD-SDI(720p), WaveformVector Scope, Y Level Check and Range Error Check.
Display Spec
| Size | 5.6″ |
| Resolution | 1280 X 800 (16 : 10) |
| Pixel Pitch | 0.094mm |
| Color Depth | 16.7M |
| Viewing Angle | 170°(H) / 170°(V) |
| Luminance | 300cd/m2 |
| Contrast Ratio | 500:1 |
| Display Area | 121(H) × 76(V) mm |

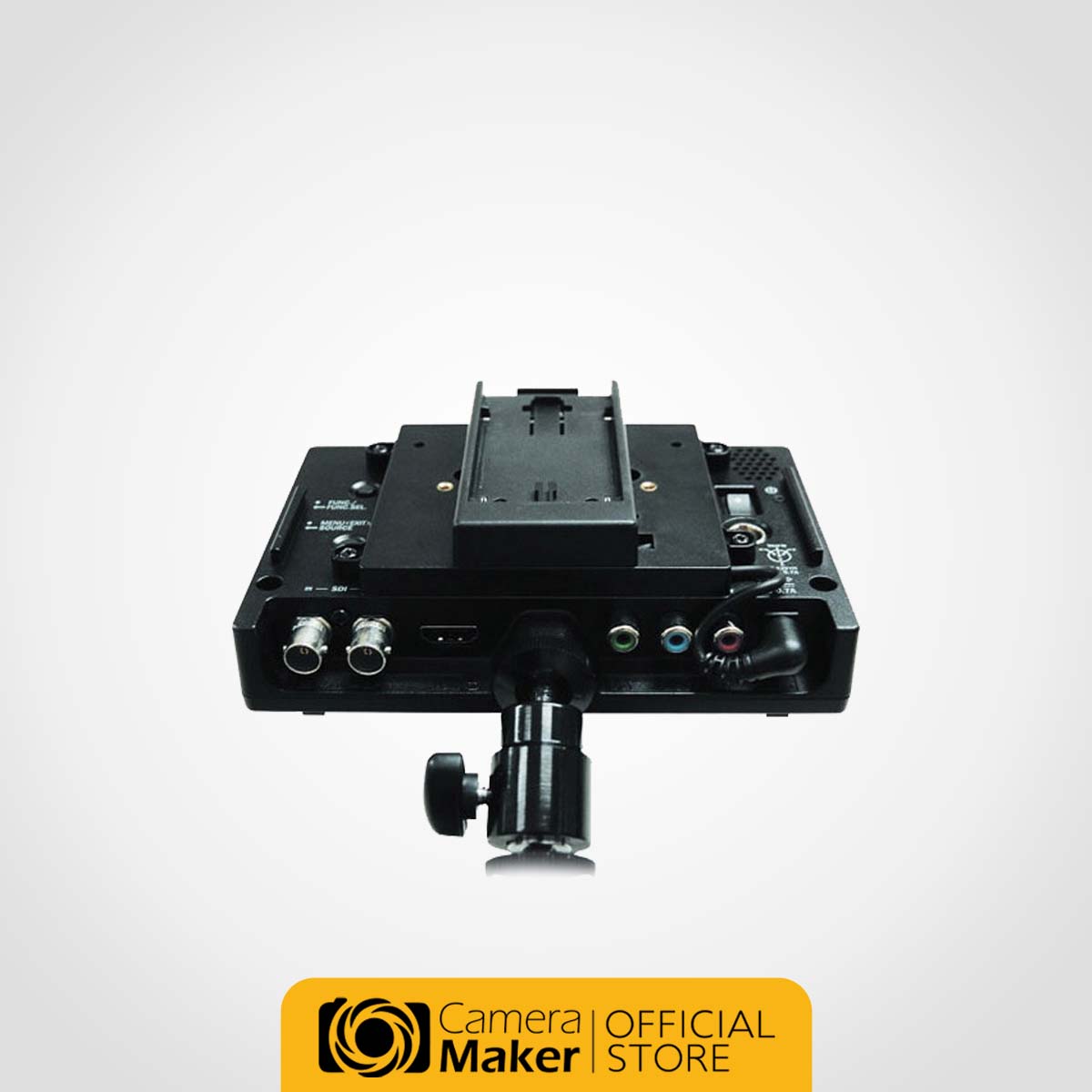

Input
| 1 X RCA | Analog Input (Composite) |
| 3 X RCA | Analog Input (Component) |
| 1 X BNC | 3G-SDI A Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
Input Signal
| Analog | CVBS / S-Video / Component Video |
| 3G SDI | 2.970Gb/s |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA/IBM Modes |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
Audio
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Other Functions
| USB | Firmware update by USB memory stick |
| Ethernet |
Options
| Battery Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Sun Hood, V-Mount |
