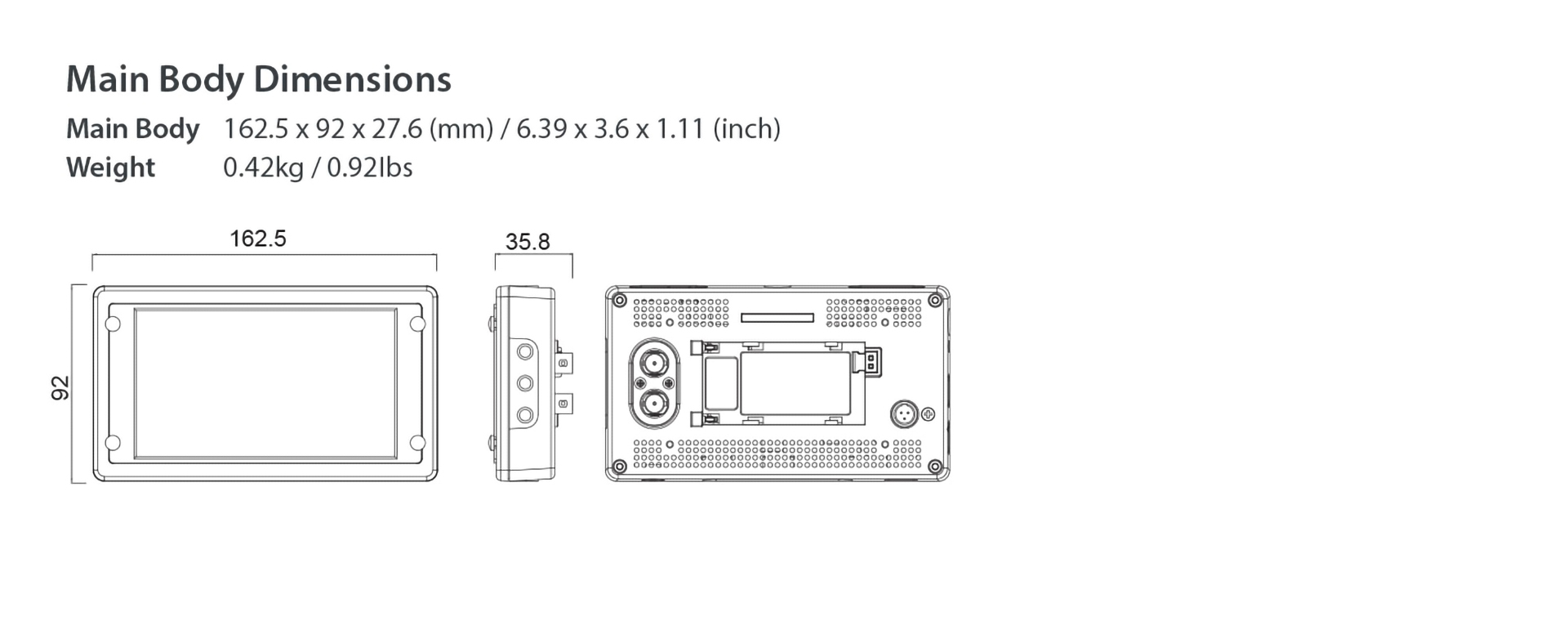

Main Body Dimensions
– Main Body 162.5 x 92 x 27.6 (mm) / 6.39 x 3.6 x 1.11 (inch)
– Weight 0.42kg / 0.92lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

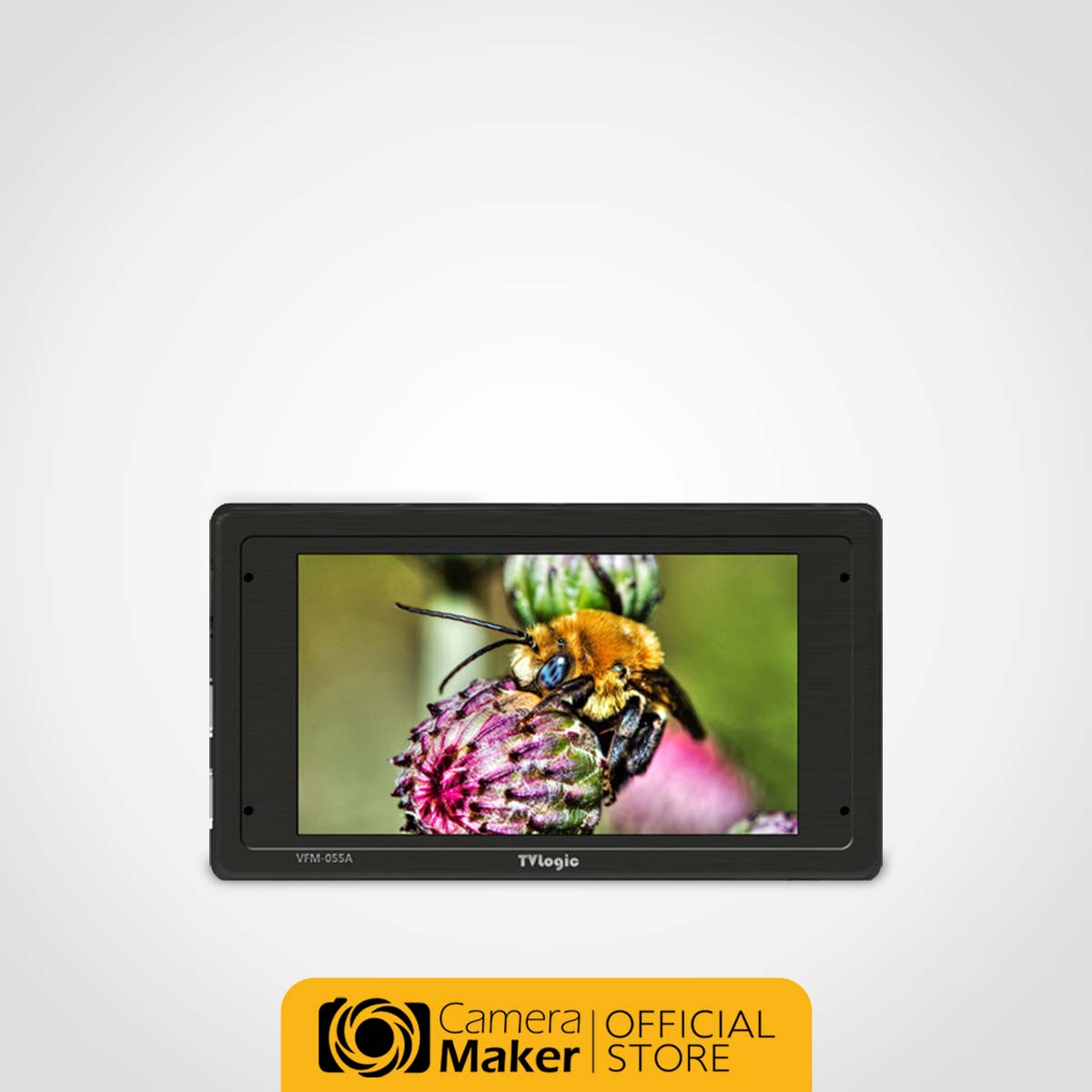

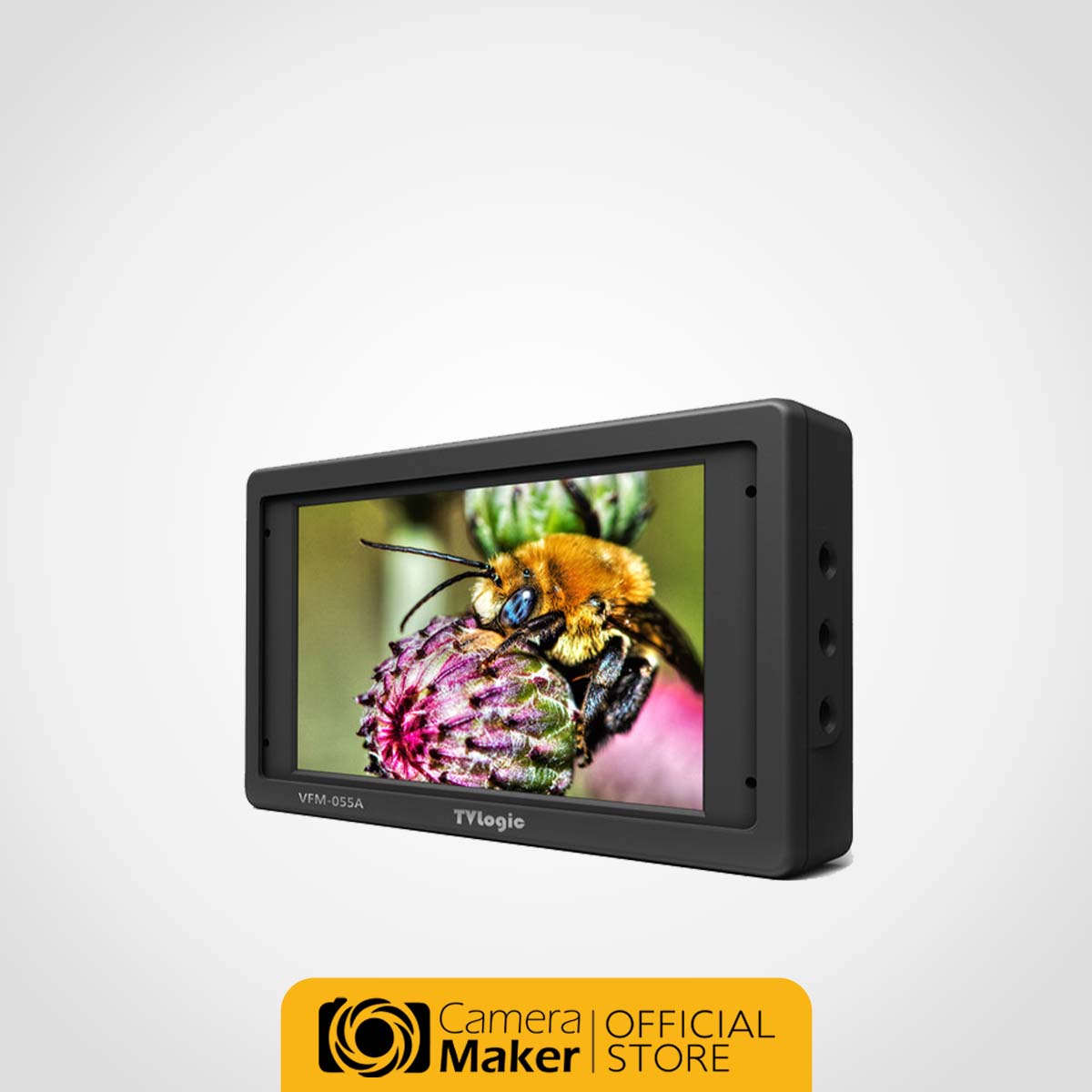

The VFM-055A is a 5.5-inch OLED (organic LED) on-camera viewfinder monitor with native 1920×1080 resolution.
It offers truly cinematic image quality with deep blacks, wide-gamut color reproduction, a very wide viewing angle, and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions include cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output options.
Display Spec
| Size | 5.5″ |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixel Pitch | 0.063mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 350cd/m2 |
| Contrast Ratio | 17000 : 1 |
| Display Area | 121(H) × 68(V) mm |
Input
| 1 X BNC | 3G-SDI Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
Input Signal
| 3G SDI | 2.970Gb/s |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) & VESA/IBM Modes |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF /29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In | Embedded Audio |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA Functions
| 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
Calibration
| , 3rd Party 3D LUT Import |
Other Functions
| USB | Firmware update by USB memory stick |
| Ethernet |
Options
| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Sun Hood, L-Type BNC Connector , |
