Pre Order
– รหัสสินค้า RKM-535A
– Size 3.54″
– Resolution 940 x 640 (3 : 2)
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

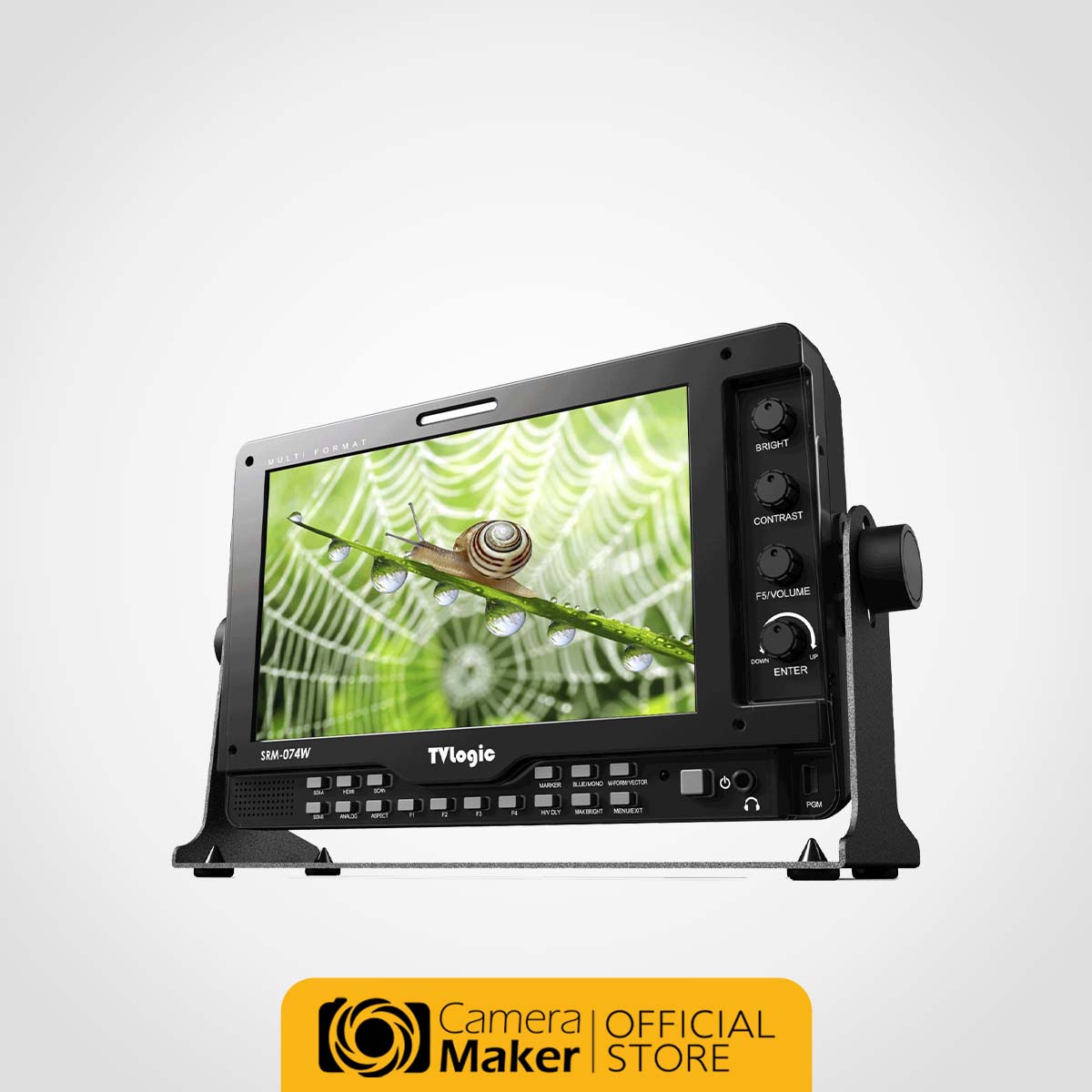

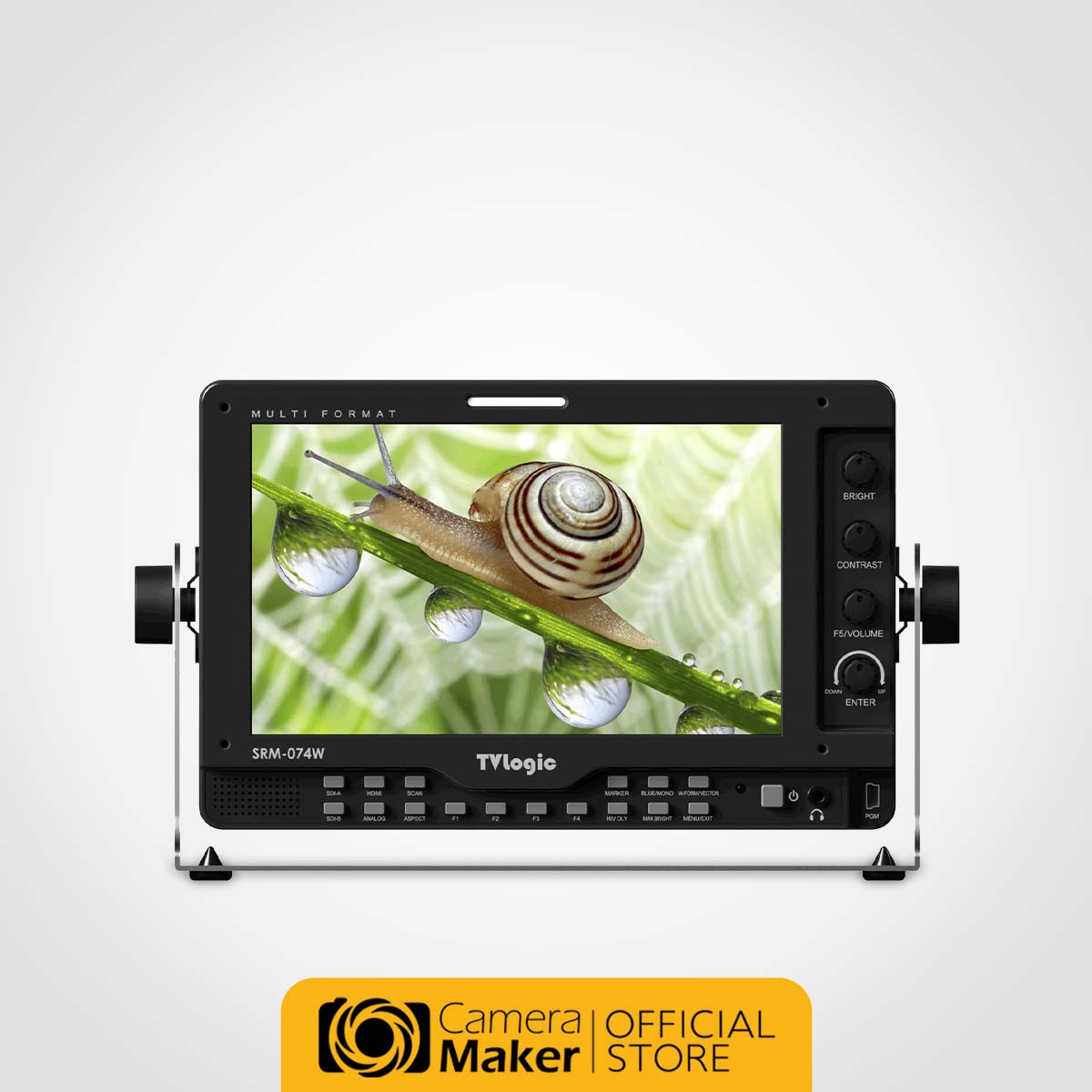

An ideal monitor for the latest compact cinema cameras, the SRM-074W offers a wide range of professional features including:Waveform/Vectorscope, built-in HDMI to HD-SDI conversion output, Horizontal and Vertical Image Flip, Focus Assist, Camera Lut., Audio Level Meter and more.
A feature unique to the SRM-074W is TVLogic’s new user selectable Temperature Adaptive Color function that measures LCD panel temperature and automatically compensate the white balance drift caused by a cold or hot weather.
Display Spec.
| Size | 7″ |
| Resolution | 1024 X 600 (16 : 9) |
| Pixe Pitch | 0.150mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 1,500cd/m2 |
| Contrast Ratio | 800:1 |
| Display Area | 154(H) x 90(V) mm |

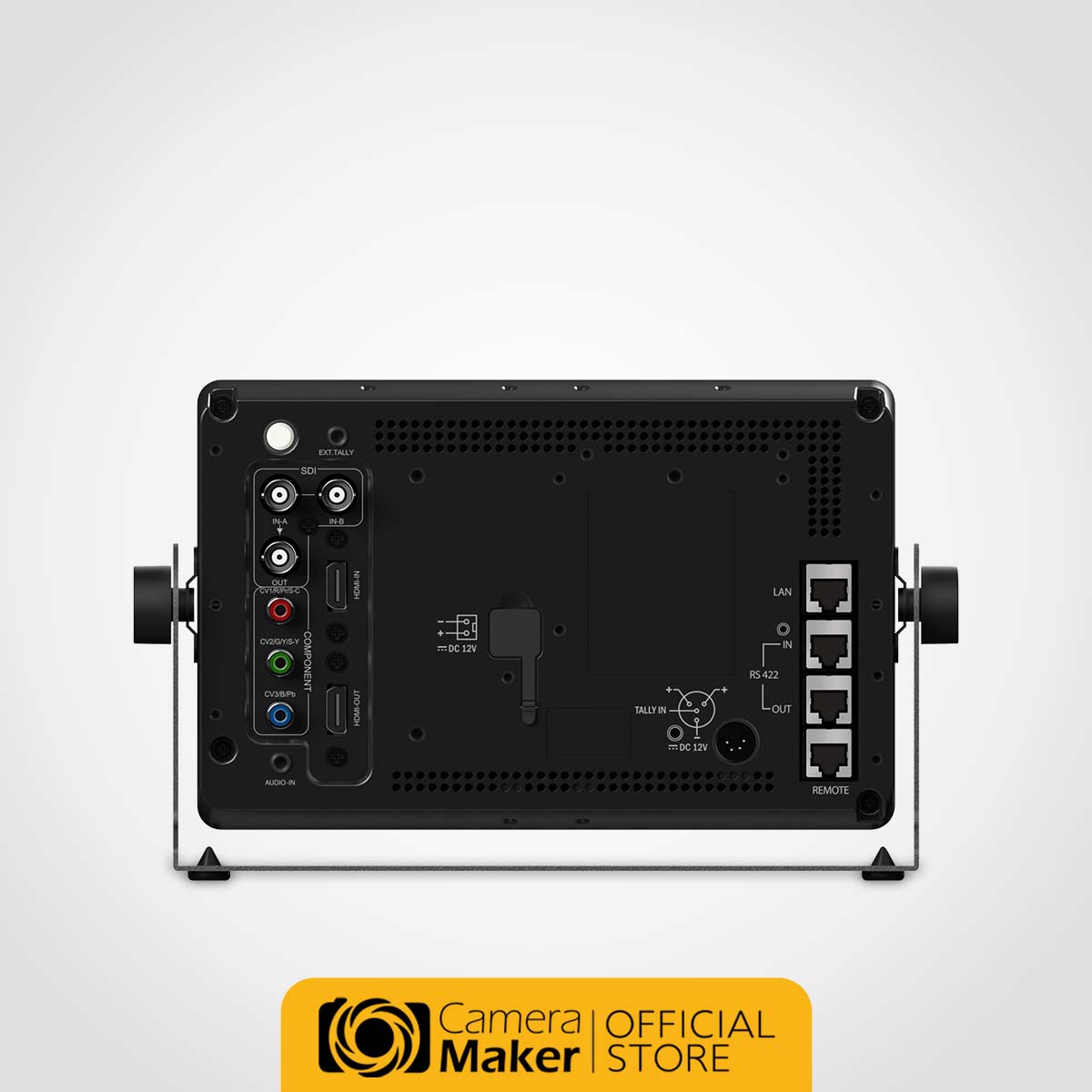

Input
| 1 X RCA | Analog Input (Composite) |
| 3 X RCA | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
Other Functions
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB cable |
| Ethernet | Ethernet Control support |
| Conversion | HDMI-to-HDMI, HDMI-to-SDI, SDI-to-SDI, |
Options
| Camera Mount Ball Head, Carring Case, D-Tap Cable, External Tally, External Acrylic Filter, Gold Mount, Rack Mount Kit(Double), Rack Mount Kit(Single), Sun Hood, V-Mount |
