Pre Order

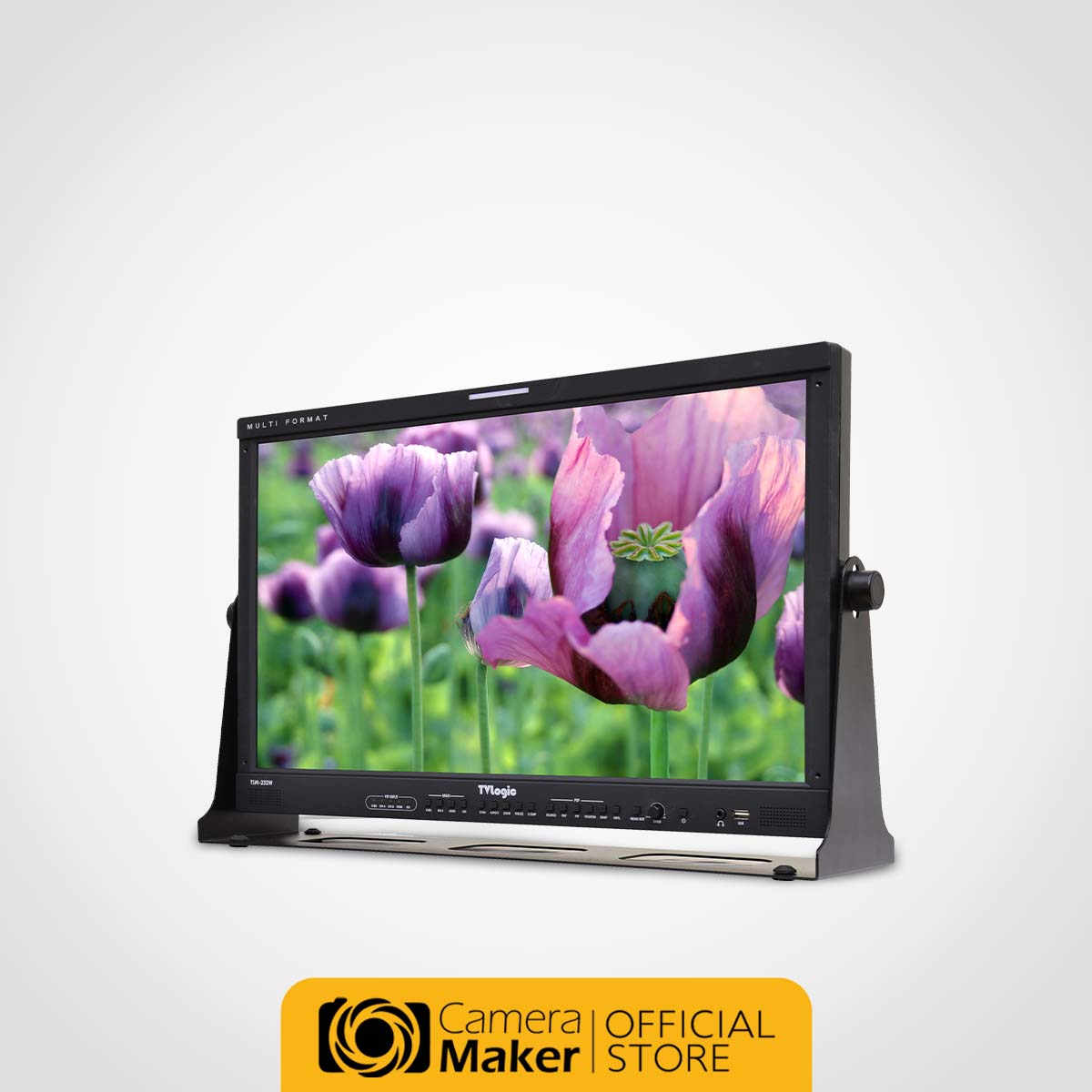

– รหัสสินค้า TSM-232W
– Size 23″
– Resolution 1920 X 1080 (16 : 9)
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
The TSM-232W is a versatile and cost-effective monitor that supports various video formats including 3G-SDI and professional features.
Display Spec
| Size | 23″ |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixel Pitch | 0.2652 mm |
| Color Depth | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 300cd/m2 |
| Contrast Ratio | 1000:1 |
| Display Area | 509(H) x 286(V) |
Input
| 1 X BNC | Analog Input (Composite) |
| 1 X BNC | 3G-SDI A Channel Input |
| 1 X D-SUB | RGBHV (VGA) IN |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
Output
| 1 X BNC | Analog Output (Composite) |
| 1 X BNC | 3G-SDI Output |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Key Lock, User Aspect, Various Scan Modes, Zoom |
Other Functions
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet |
Options
| ND Acrylic Filter, Rack Mount Kit(Single), |
