Main Body Dimensions
– Main Body 223 x 175 x 60 (mm) / 8.78 x 6.89 x 2.36 (inch)
– With Stand 223 x 194.2 x 90 (mm) / 10.24 x 7.65 x 3.54 (inch)
– Weight 2.1kg / 4.63lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

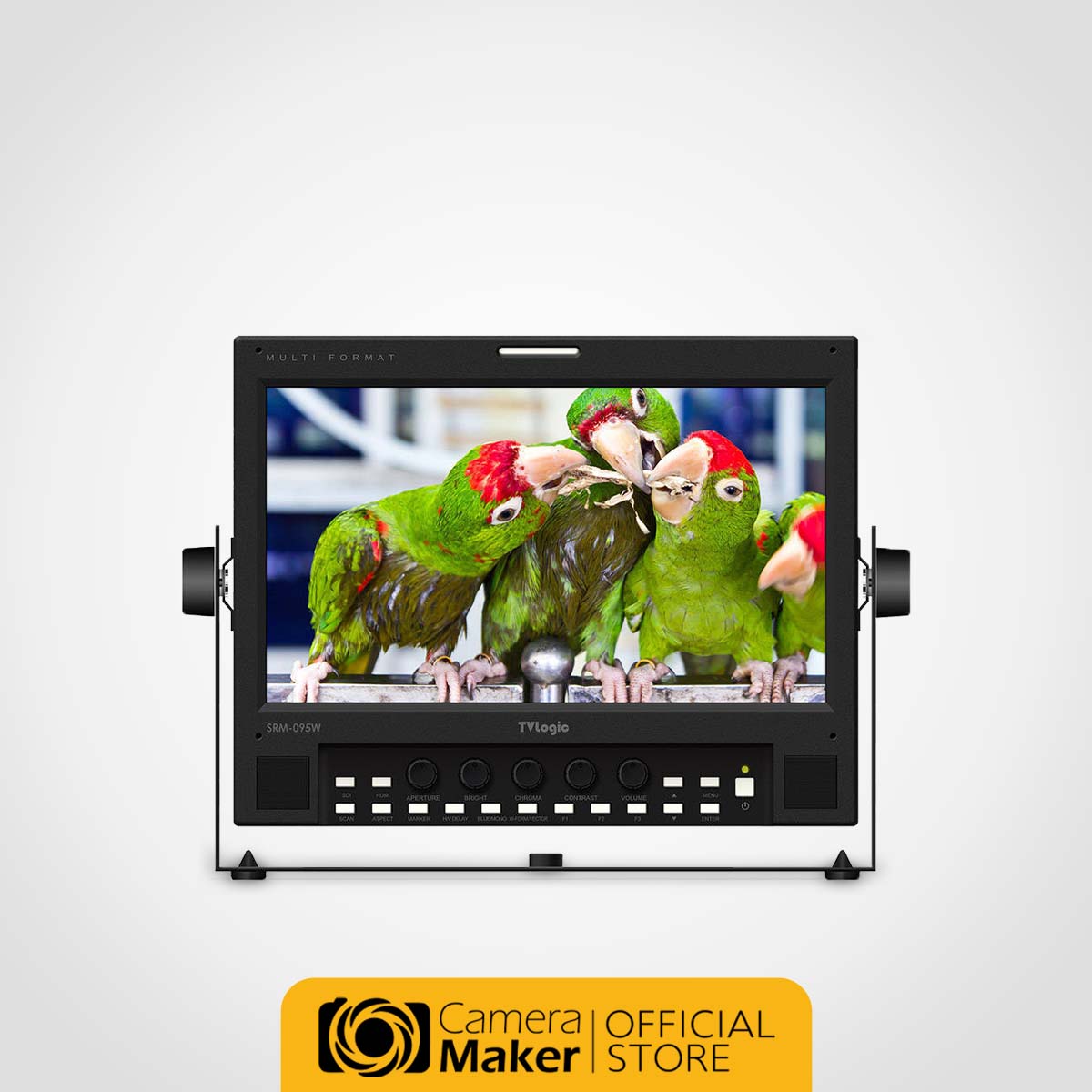

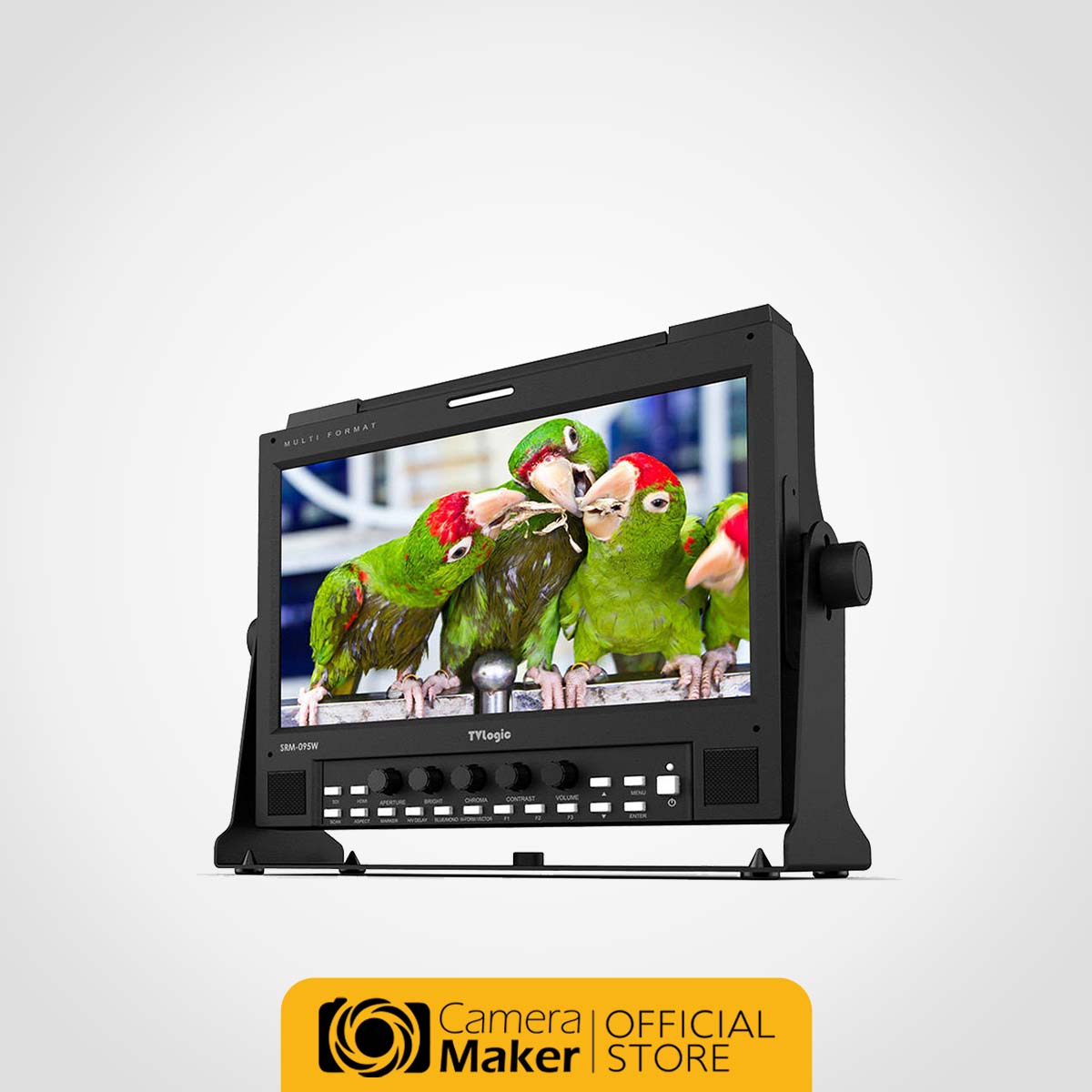

The SRM-095W the new 9″ released from TVLogic displays full HD resolution of 1920×1080.
It also corresponds with a wide range of image sources (3G HD/SD-SDI, HDMI) and provides a wide viewing angle (176 degrees).
For maximized efficiency and economic feasibility, SRM-095W is constructed from aluminum for an extra-light body weight and a holds a built-in V-Mount.
Upgraded with new FHD panel with accurate color reproduction capability that exactly meets the HDTV standards, SRM-095W gives super clear picture quality with powerful features.
Display Spec.
| Size | 9″ |
| Resolution | 1920 X 1080 (16 : 9) |
| Pixe Pitch | 0.1035mm |
| Color Depth | 16.7M |
| Viewing Angle | 176°(H) / 176°(V) |
| Luminance | 900cd/m2 |
| Contrast Ratio | 750 : 1 |
| Display Area | 199(H) x 111(V) mm |
Input
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | Analog Output (Composite) |
| 2 X BNC | 3G-SDI Output |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Mono, Range Error, Temperature Adaptive Color, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Other Functions
| USB | Firmware update by USB cable |
| Ethernet | |
| Conversion | HDMI-to-SDI, SDI-to-SDI, |
Options
| Camera Mount Ball Head, Carring Case, External Acrylic Filter, Rack Mount Kit(Double), Rack Mount Kit(Single), Sun Hood, |
