Pre Order
– รหัสสินค้า RKM-443A
– Size 4.3″
– Resolution 800 X 480 (16 : 9)
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

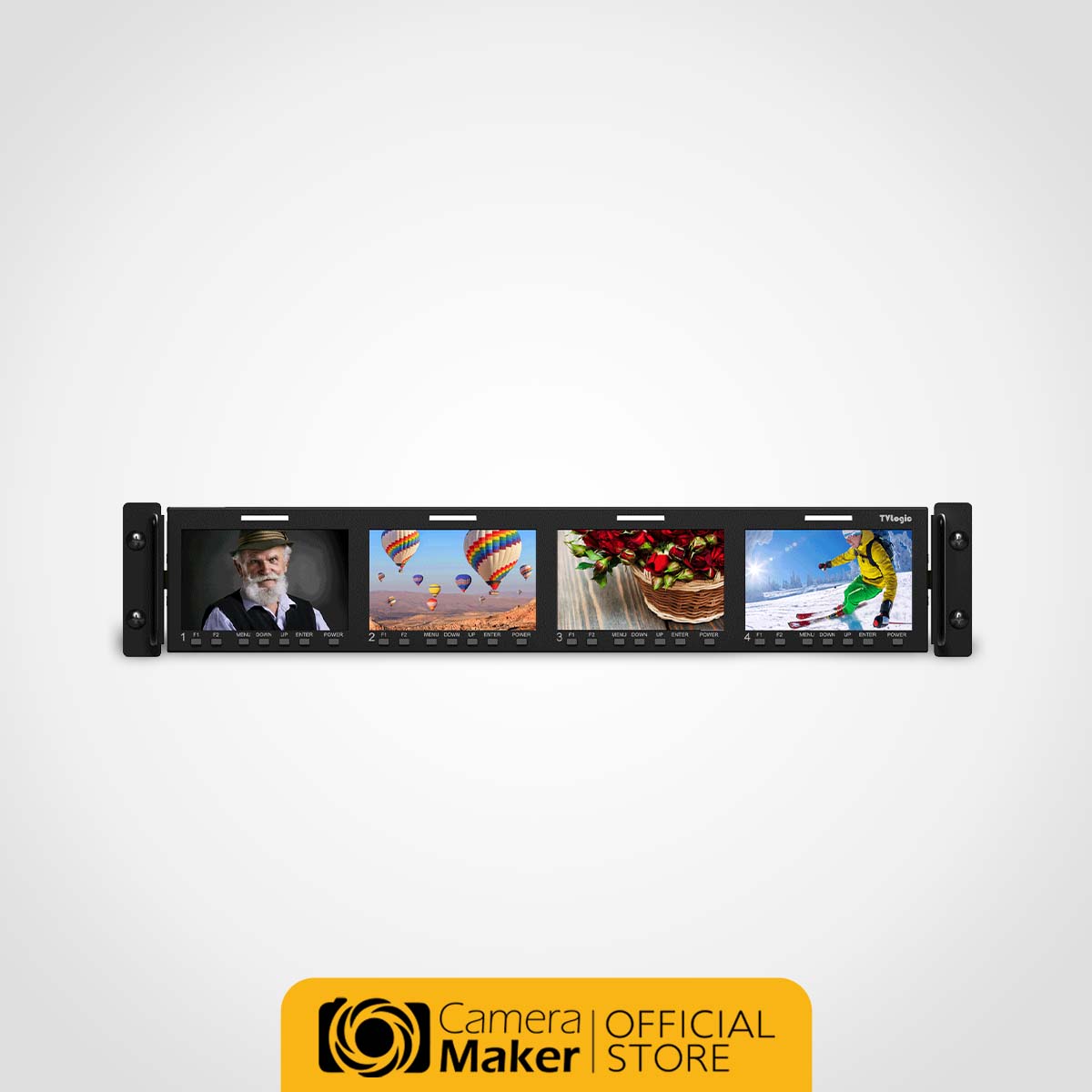

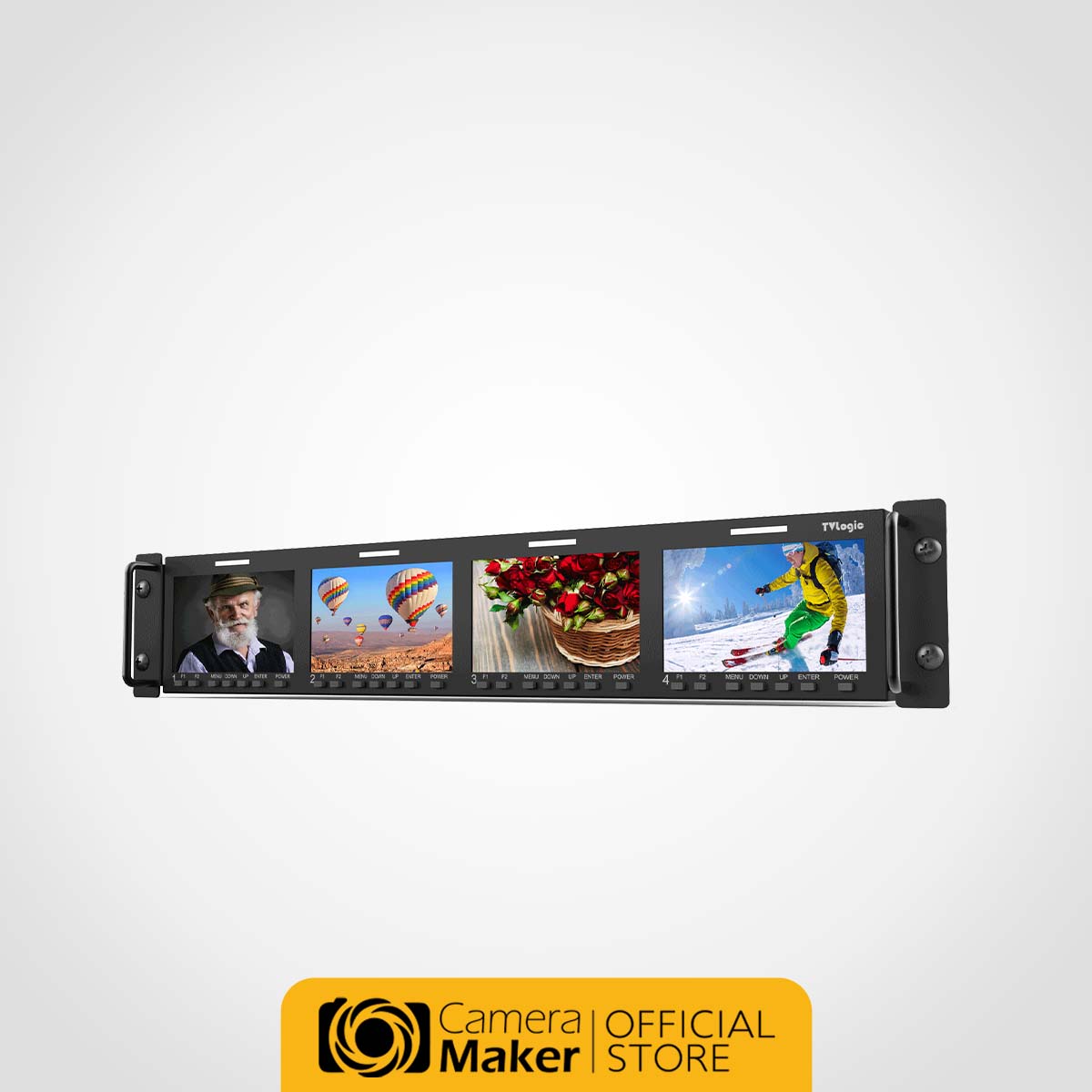

A rack-mount monitor with 4 × 4.3″ LCD screens with high luminance of 600cd/m2 and reasonable resolution of 800 x 480 for the size. It supports SDI in/out and CVBS video input.
Display Spec.
| Size | 4.3″ |
| Resolution | 800 X 480 (16 : 9) |
| Pixe Pitch | 0.117mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 600cd/m2 |
| Contrast Ratio | 1000:1 |
| Display Area | 93.6(H) × 56.16(V) mm |

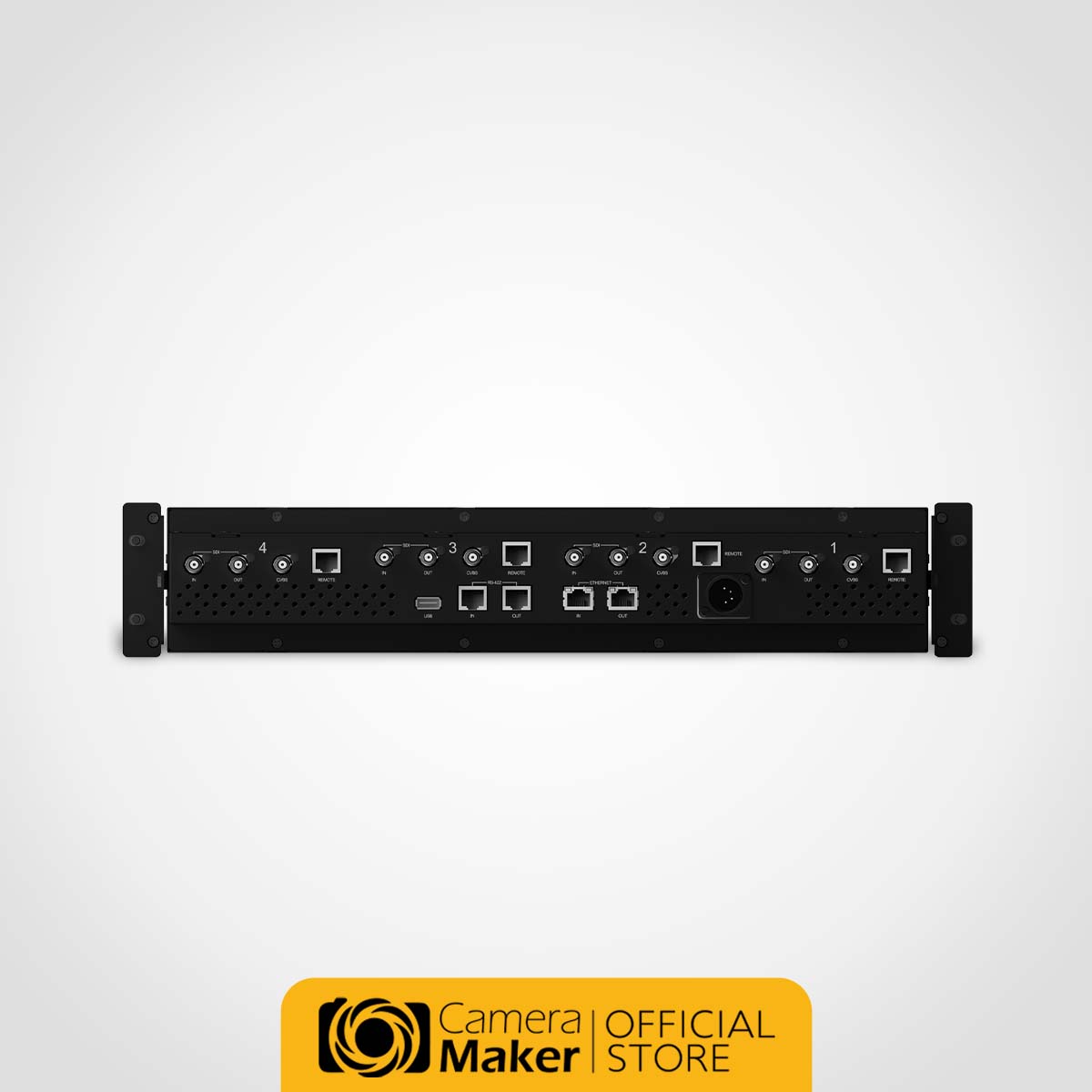

Input
| 1 X BNC | Analog Input (Composite) |
| 1 X BNC | 3G-SDI A Channel Input |
Output
| 1 X BNC | 3G-SDI Output |
Audio
| Audio Out | – |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y’) Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Other Functions
| USB | Firmware update by USB cable | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support | |
| Conversion | SDI-to-SDI, |
