Main body Dimensions
– Main Body : 1070.6 x 625.5 x 100.6 (mm) / 42.15 x 24.62 x 3.96 (inch)
– With stand : 1070.6 x 679.6 x 255 (mm) / 42.15 x 26.77 x 10(inch)
– Weight : 33kg / 72.75lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

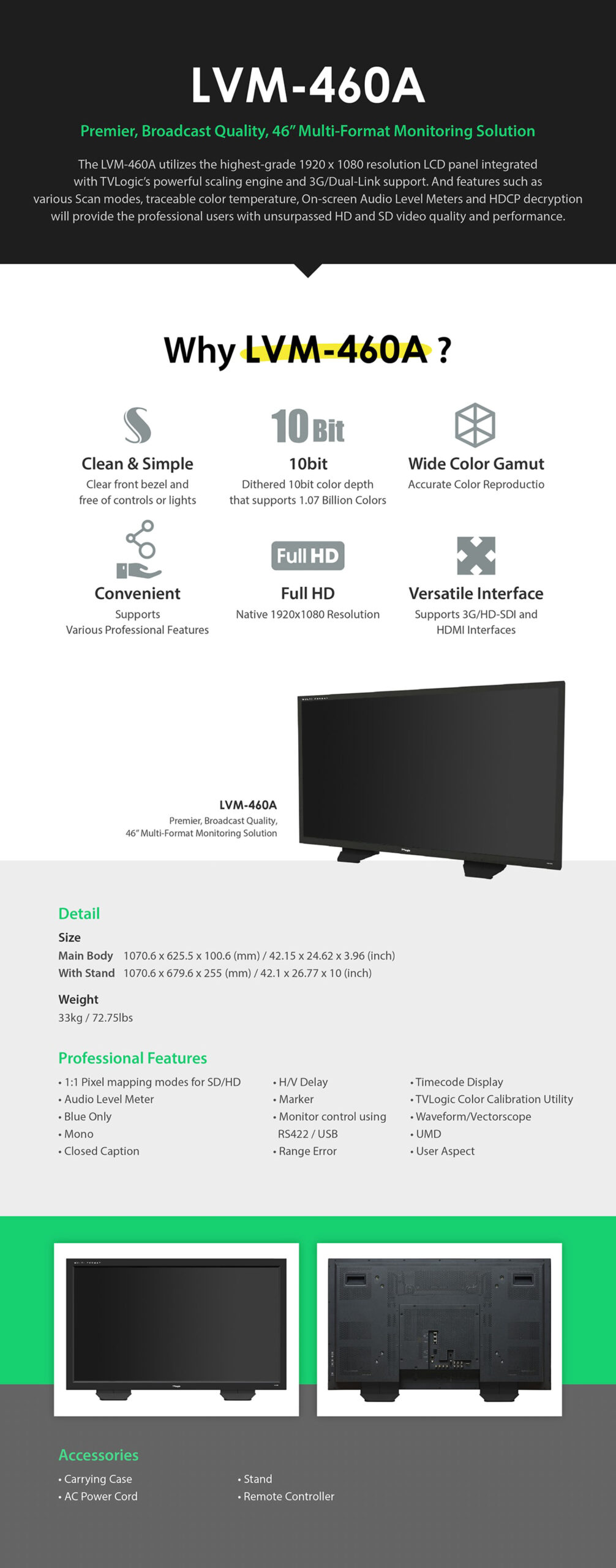

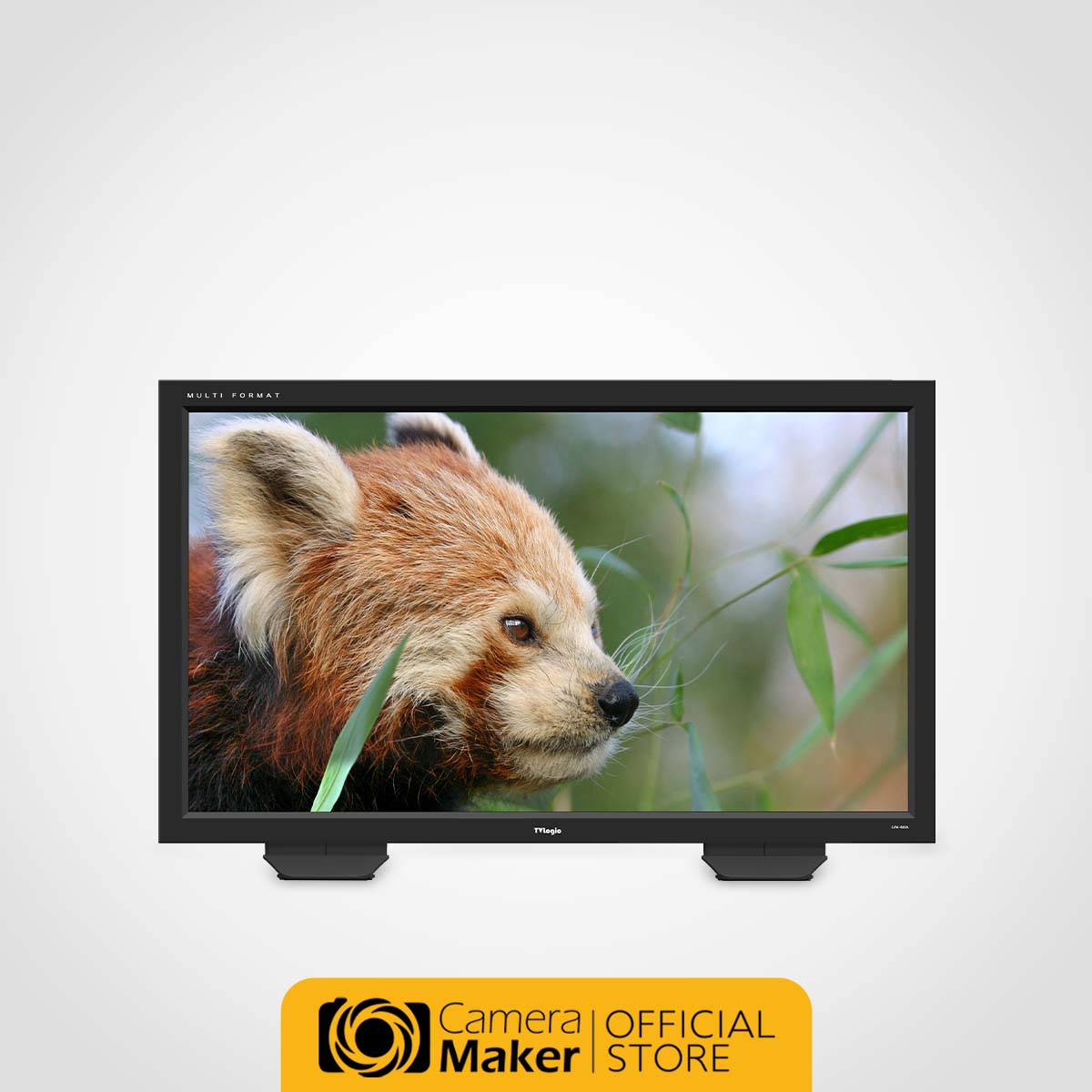

The LVM-460A utilizes the highest-grade 1920 x 1080 resolution LCD panel integrated with TVLogic’s powerful scaling engine and 3G/Dual-Link support.
And features such as various Scan modes, traceable color temperature,On-screen Audio Level Meters and HDCP decryption will provide the professional users with unsurpassed HD and SD video quality and performance.
Display Spec
| Size | 46″ |
| Resolution | 1920 X 1080 (16:09) |
| Pixel Pitch | 0.53025mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 450cd/m2 |
| Contrast Ratio | 4,000:1 |
| Display Area | 1018.08(H) x 572.67(V) mm |
Input
| 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |
Output
| 3 X BNC | Analog Output (Component) |
| 2 X BNC | 3G-SDI Output |
Input Signal
| Analog | Composite / S-Video / Component / RGB |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640×480/ 720×400/800×600/1024×768/1280×1024/160 0x1200 |
| DVI Analog | 640×480/720×400/800×600/1024×768/1280×1024/ 1600×1200/1920×1080 |
| DVI DP | 640×480/720×400/800×600/1024×768/1280×1024/ 1600×1200/1920×1080/1920×1200 |
| DVI DH | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50) |
| SMPTE 372 | Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, Blue Only, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47 |
Calibration
| TVLogic Color Calibration Utility |
Other Functions
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
