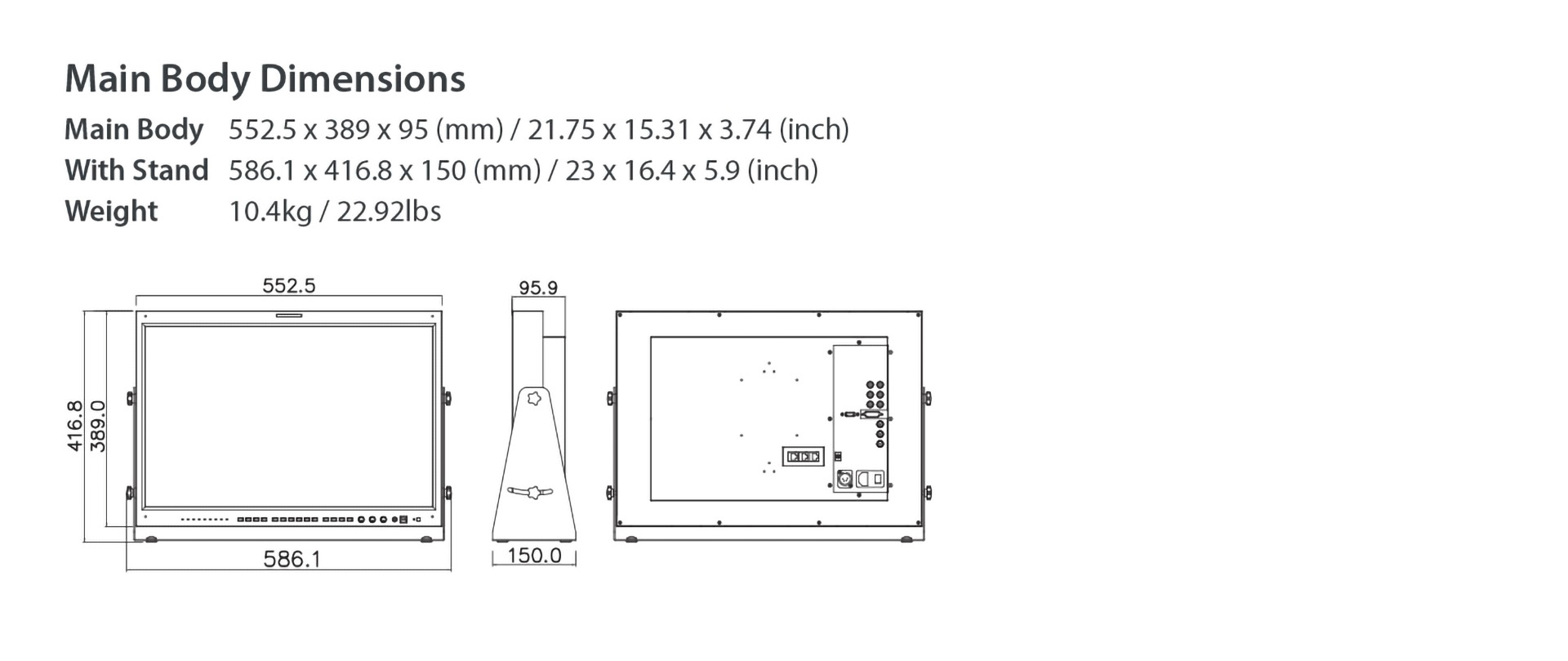

– Main Body 552 x 389 x 95.9 (mm) / 21.73 x 15.31 x 3.78 (inch)
– With Stand 586.1 x 416.8 x 150 (mm) / 23 x 16.4 x 5.9 (inch)
– Weight 10.35kg / 22.82lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

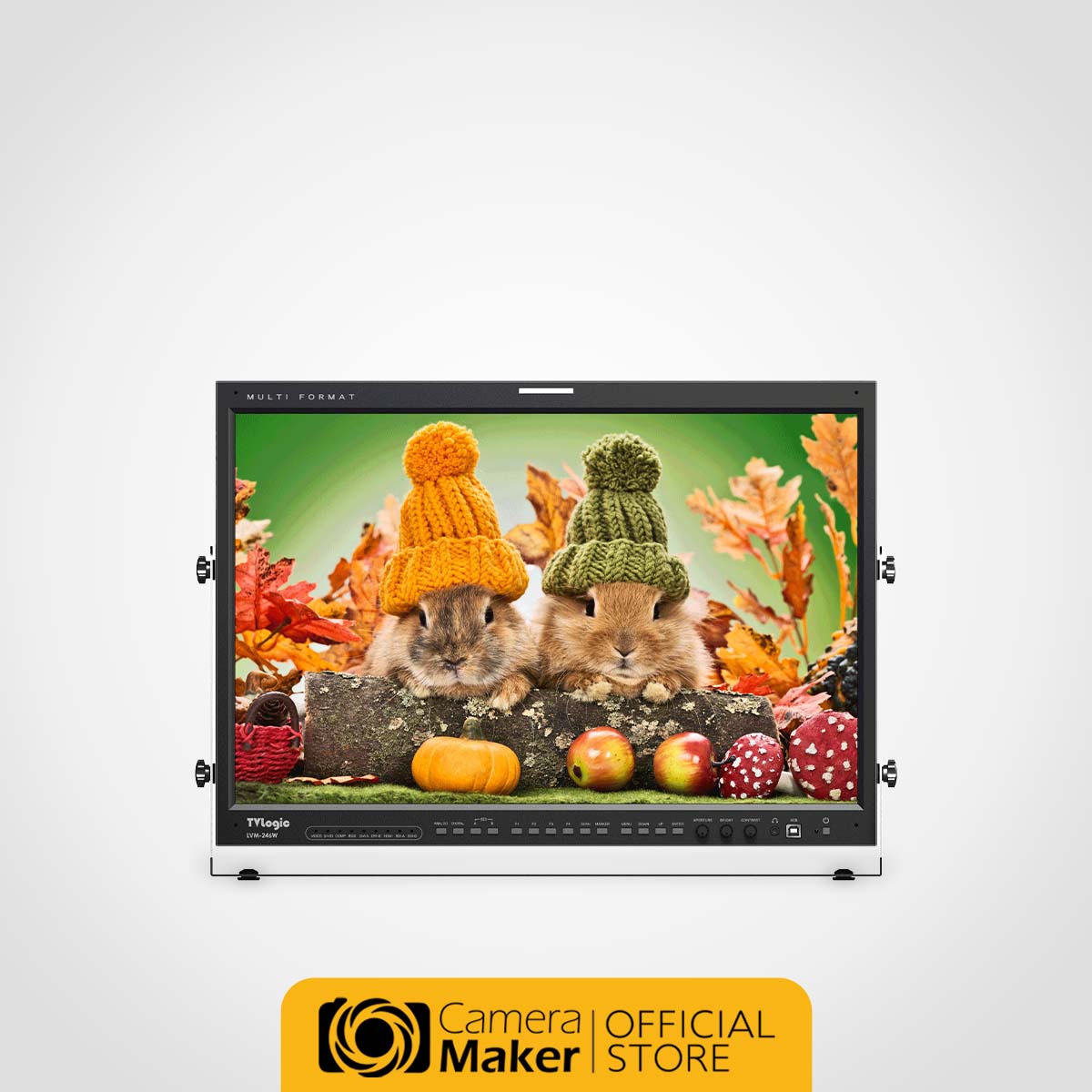

LVM-246W is a reasonable priced broadcast monitor with new full HD and wide viewing angle IPS LCD. It supports various video interface of SD/HD/3G-SDI, HDMI, DVI, Component Video, S-Video and CVBS. Also provides professional features such as Waveform & Vectorscope, Markers, Timecode, Closed Caption and color calibration.
Display Spec
| Size | 24″ |
| Resolution | 1920 X 1200 (16 : 10) |
| Pixel Pitch | 0.270mm |
| Color Depth | 16.7M |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 250cd/m2 |
| Contrast Ratio | 1,000 : 1 |
| Display Area | 518(H) x 324(V) mm |

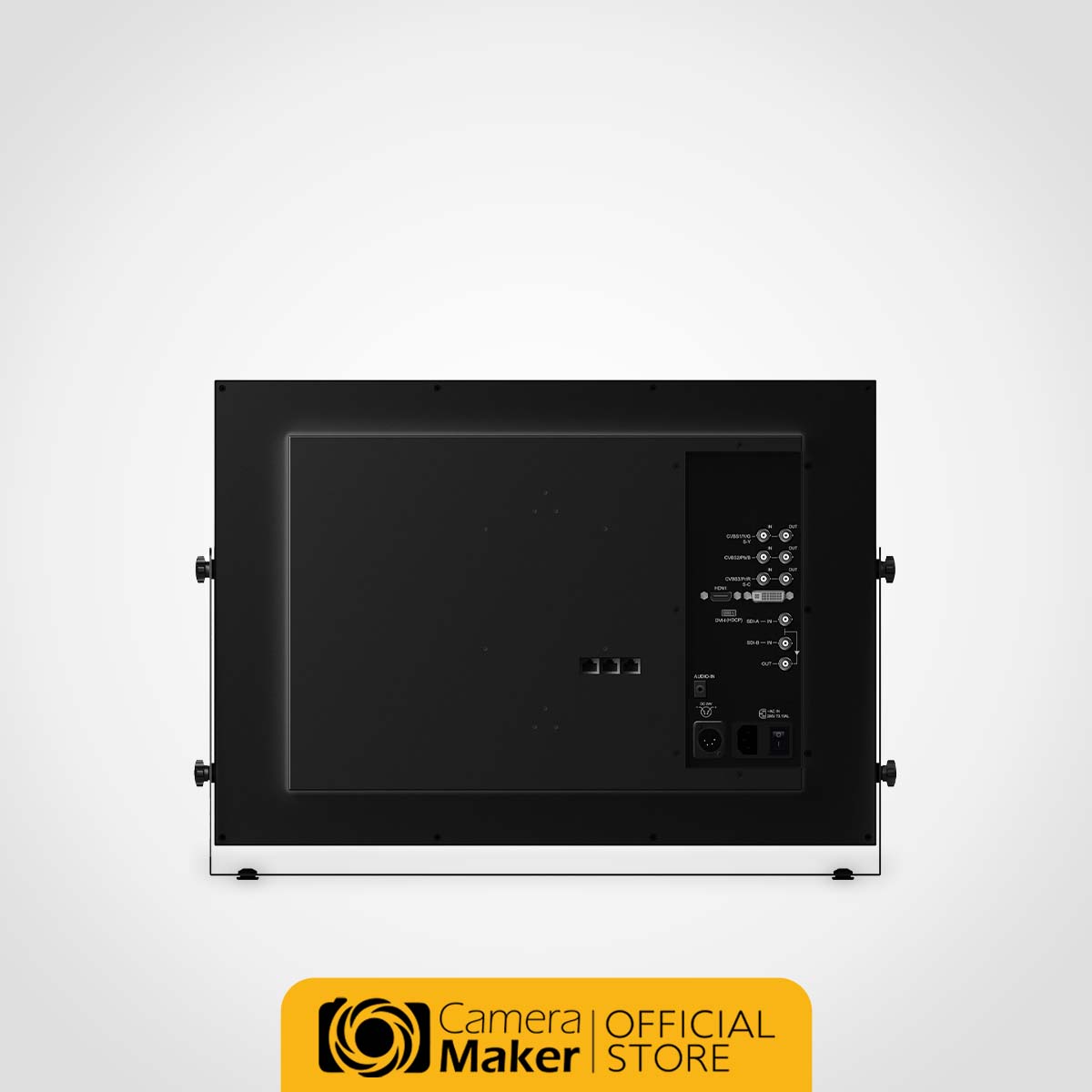

Input
| 3 X BNC | Analog Input (Component) |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | Analog & Digital RGB |
Output
| 3 X BNC | Analog Output (Component) |
| 1 X BNC | 3G-SDI Output |
Input Signal
| Analog | CVBS / S-Video / Component Video / RGB(D-TV) |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640×480/ 720×400/800×600/1024×768/1280×1024/160 0x1200/ 1920×1200 |
| DVI Analog | 640×480/720×400/800×600/1024×768/1280×768/ 1280×1024/1366×768 |
| DVI DP | 640×480/720×400/800×600/1024×768/1280×768/ 1280×1024 |
| DVI DH | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50) |
SDI Input Signal Formats
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y’) Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708 |
Calibration
| TVLogic Color Calibration Utility |
Other Functions
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet |
Options
| Carrying Case, External Acrylic Filter, ND Acrylic Filter, Rack Mount Kit(Single), |
