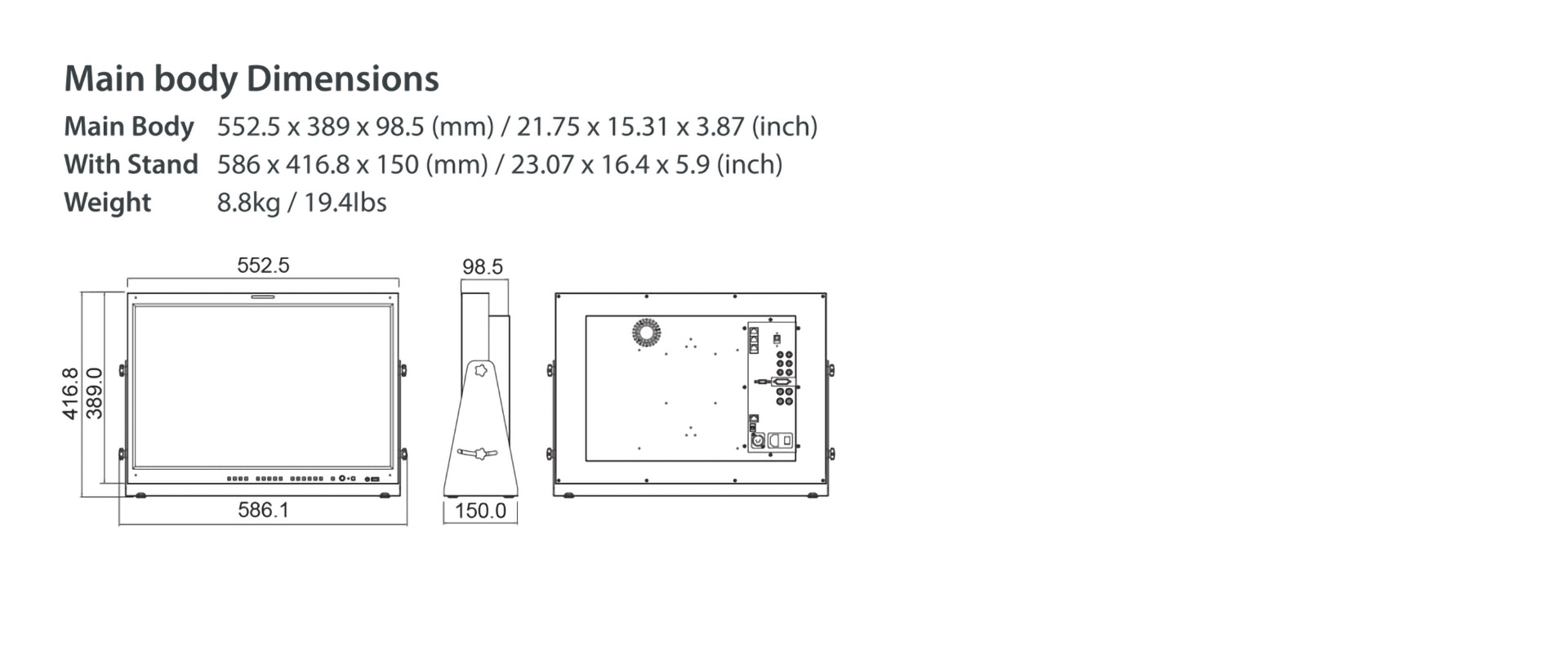

Main Body Dimensions
– Main Body 552.5 x 389 x 98.5 (mm) / 21.75 x 15.31 x 3.87 (inch)
– With Stand 586 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.9 (inch)
– Weight 8.8 kg / 19.4 Ibs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
Display Spec
| Size | 24″ |
| Resolution | 1920 X 1200 (16:10) |
| Pixel Pitch | 0.27mm |
| Color Depth | 1.07B |
| Viewing Angle | 178°(H) / 178°(V) |
| Luminance | 400cd/m2 |
| Contrast Ratio | 1500:1 |
| Display Area | 518(H) x 324(V) mm |
Input
| 3 X BNC | Analog Input |
| 2 X BNC | 3G-SDI A/B Channel Input |
| 1 X HDMI | HDMI Input |
| 1 X DVI | DVI Input |

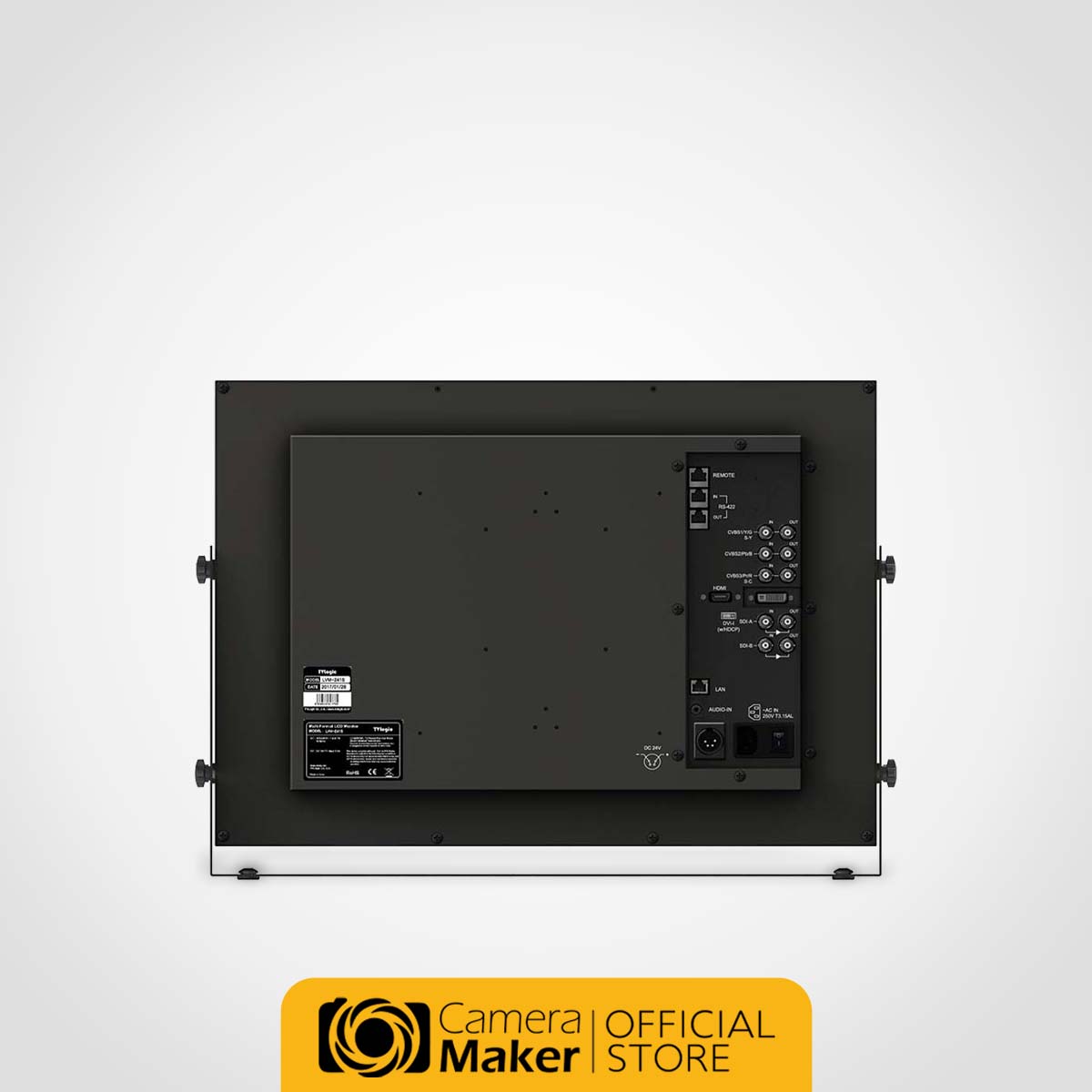

Output
| 3 X BNC | Analog(Loop Through Out) |
| 2 X BNC | SDI A/B Channel Output (Loop Through Out) |
| External Output Port |
Input Signal
| Analog | CVBS / S-Video / Component / RGB(D-TV) |
| 3G SDI | 2.970Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 480i/480p/576i/576p/720p/1080i/1080p/640×480/ 720×400/800×600/1024×768/1280×1024/1366×768 |
| DVI Analog | 640×480/720×400/800×600/1024×768/1366×768 |
| DVI DP | 640×480/720×400/800×600/1024×768/1366×768 |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) |
| SMPTE 372 | Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50)Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Stereo) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP), Camera Lut., Picture by picture |
Closed Caption
| CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR |
Calibration
| TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| REMOTE | GPI (RJ45) |
| REMOTE | TVLogic’s specification |
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Options
| Carrying Case, External Acrylic Filter, Gold Mount, ND Acrylic Filter, Rack Mount Kit(Single), V-Mount |
