Description
TVLogic 18.5″ FHD LCD Monitor | 2X 3G/HD/SD-SDI inputs [LVM-180A]

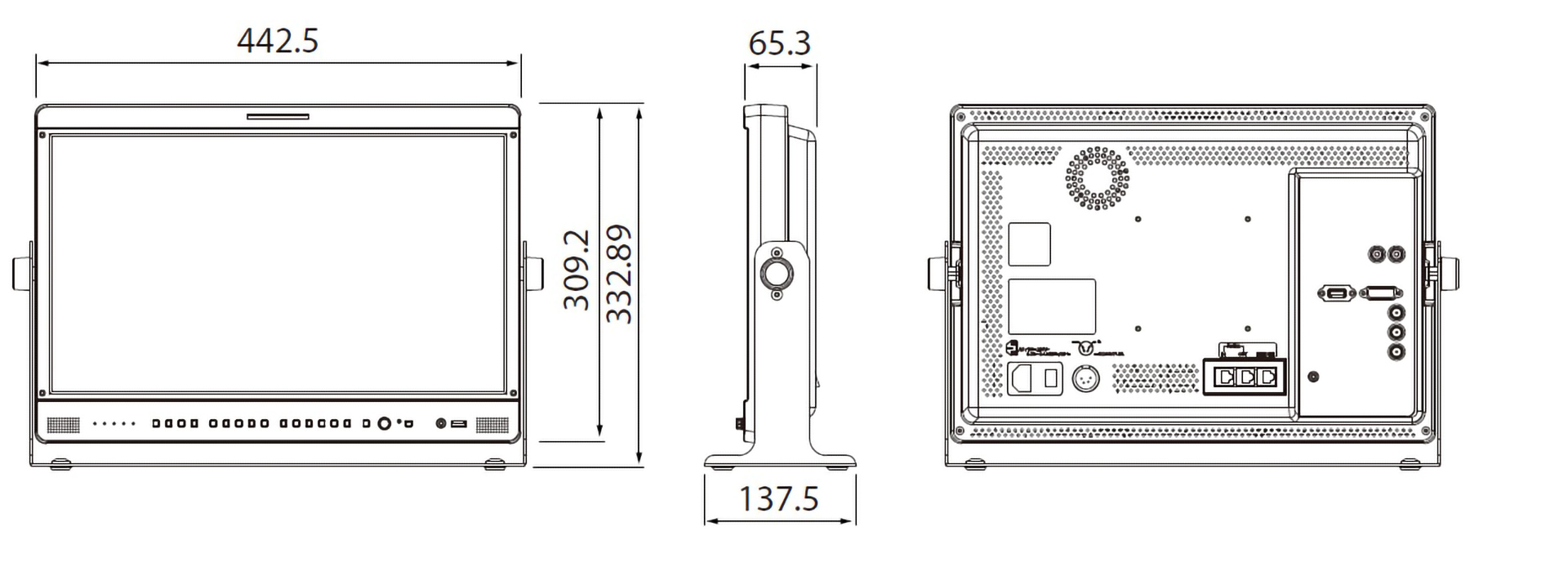

– Main Body 442.5 x 309.2 x 65.3 (mm) / 17.42 x 12.17 x 2.57 (inch)
– With Body 483.5 x 332.89 x 137.5 (mm) / 19.03 x 13.1 x 5.41 (inch)
– Weight 5.6kg / 12.34lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
TVLogic 18.5″ FHD LCD Monitor | 2X 3G/HD/SD-SDI inputs [LVM-180A]
18.5” FHD Professional LCD Monitor
The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors.
A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.
3G-SDI Level A/B
Supports 3G-SDI Level A/B input.
Audio Level Meter Display
Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.
Product Highlights
- 18.5” Full HD Resolution (1920 x 1080)
- Waveform / Vectorscope
- 16ch Audio Level Meter
- Focus Assist
- Marker
- Timecode Display
- Dynamic UMD
- Blue/Mono Only
- H/V Delay
- Luma(Y’) Zone Check
- Range Error
- User Aspect
- Various Scan Modes
- Closed Caption (CC-608, CC-708)
- Tally
- Eco Mode

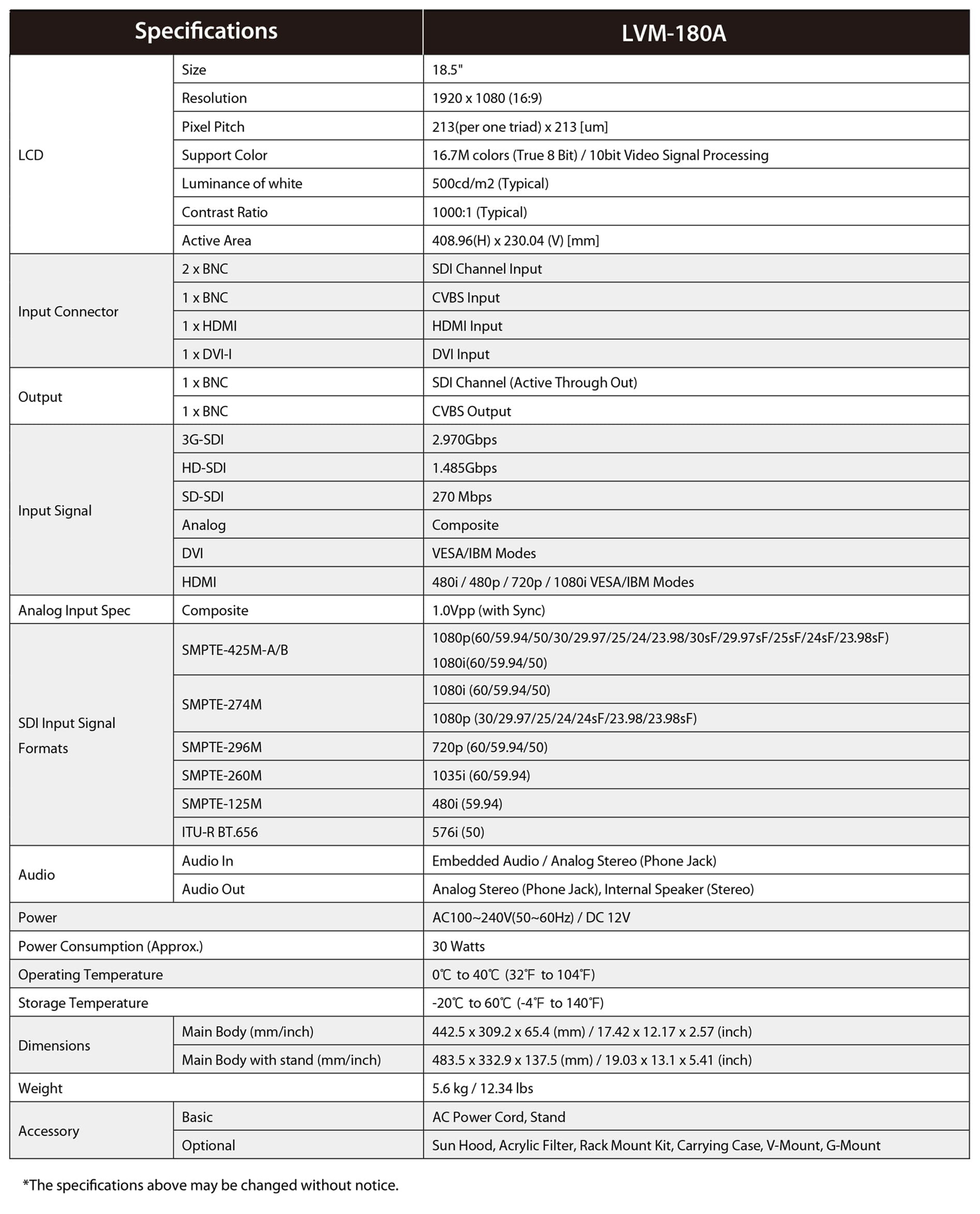

TVLogic LVM-180A Specs
