Size
– Main Body 203 x 131 x 34.6 (mm) / 8 x 5.16 x 1.36 (inch)
– With Stand 240 x 146 x 69 (mm) / 9.44 x 5.74 x 2.72 (inch)
– Weight 0.9kg / 1.98lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
| Size | 7″ |
| Resolution | 1024 x 600 (16 : 9) |
| Pixel Pitch | 0.15(H) X 0.15(V)mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 400cd/m2 |
| Contrast Ratio | 800:1 |
| Display Area | 153(H) x 90(V) mm |

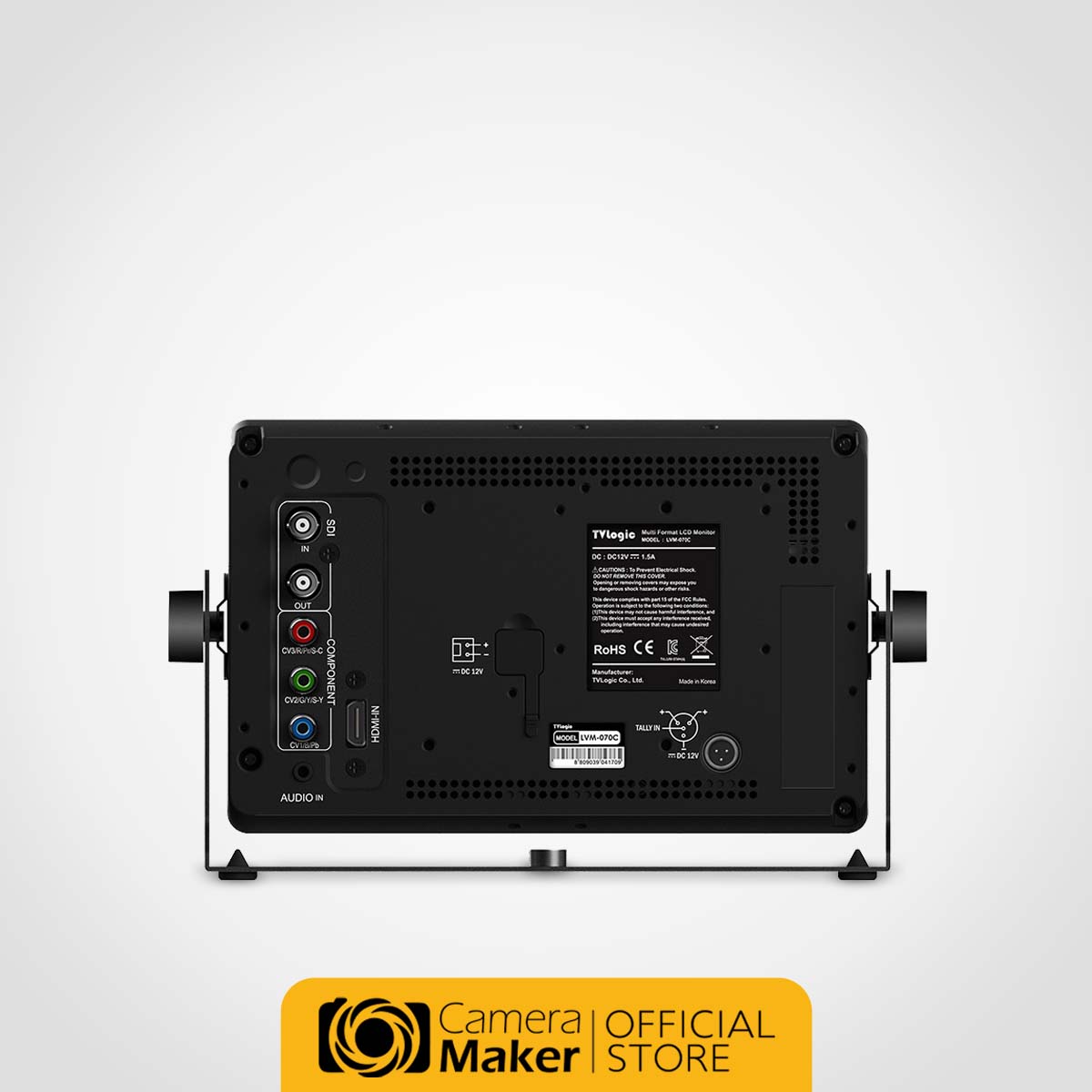

Input
| 3 X BNC | Analog Input (Component) |
| 1 X BNC | 3G-SDI A Channel Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
Input Signal
| Analog | CVBS / S-Video / Component Video / RGB(D-TV) |
| 3G SDI | 2.97Gbps |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/480i(60)/480p(60)/576i(50)/576p(50) |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) / 1080i(60/59.94/50) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 260 | 1035i (60/59.94) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
Audio
| Audio In | Embedded Audio/Analog Stereo (Phone Jack) |
| Audio Out | Analog Stereo (Phone Jack), Internal Speaker(Mono) |
FPGA Functions
| 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Temperature Adaptive Color, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut. |
Other Functions
| USB | Firmware update by USB memory stick |
| Ethernet | Ethernet Control support |
Options
| HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Tally, External Acrylic Filter, Gold Mount, Rack Mount Kit(Double), Rack Mount Kit(Single), Sun Hood, V-Mount |
