Main body Dimensions
– Main Body 211 x 125 x 28.3 (mm) / 8.3 x 4.95 x 1.11 (inch)
– Weight 0.8kg / 1.76 lbs
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

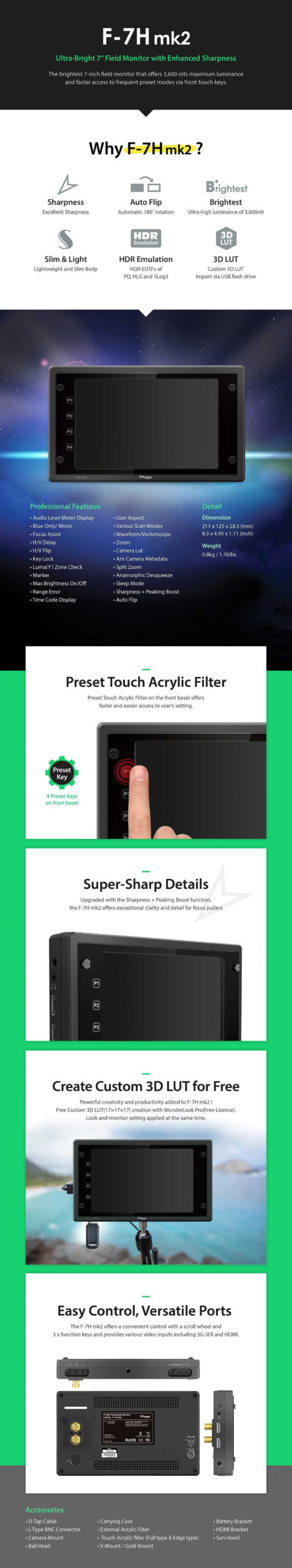

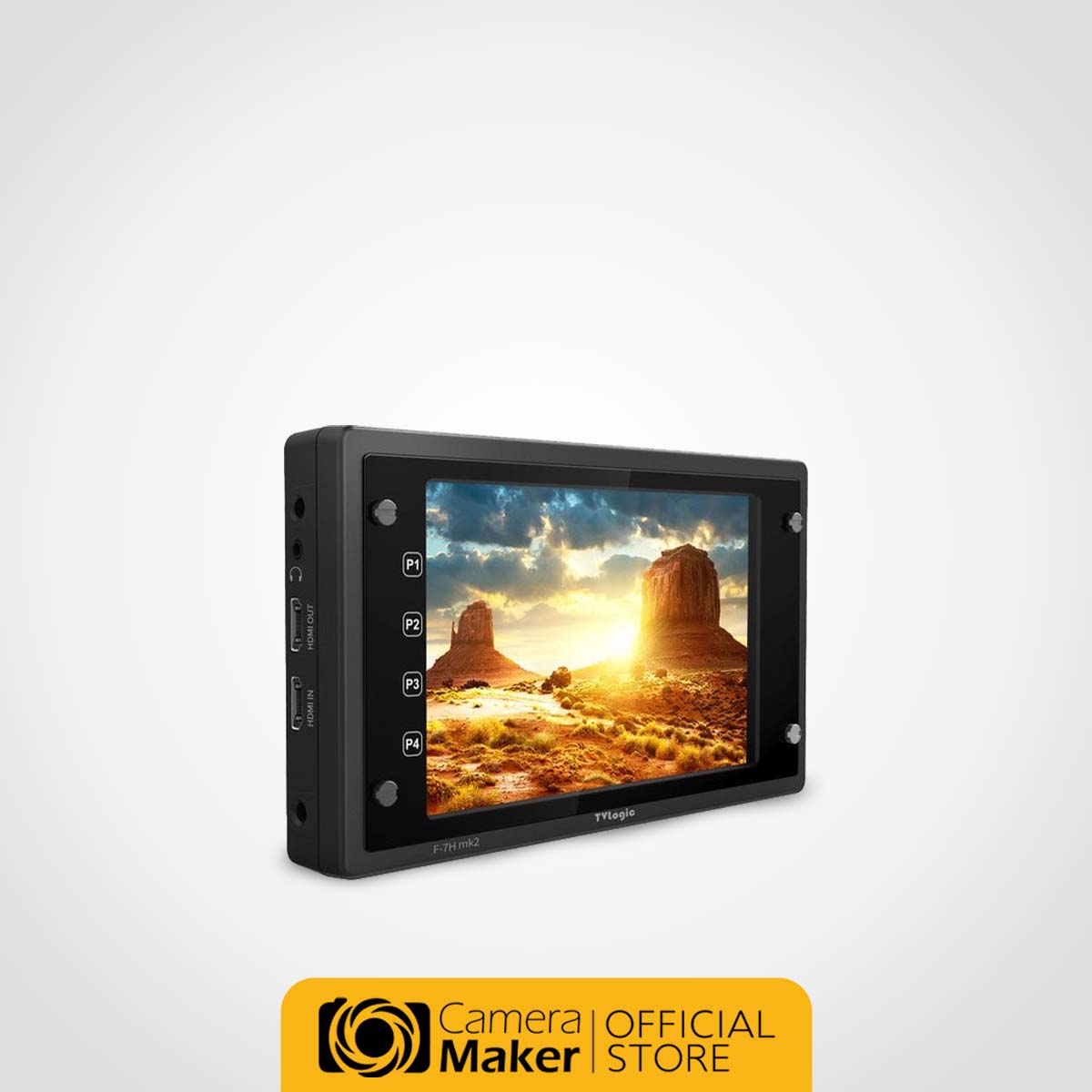

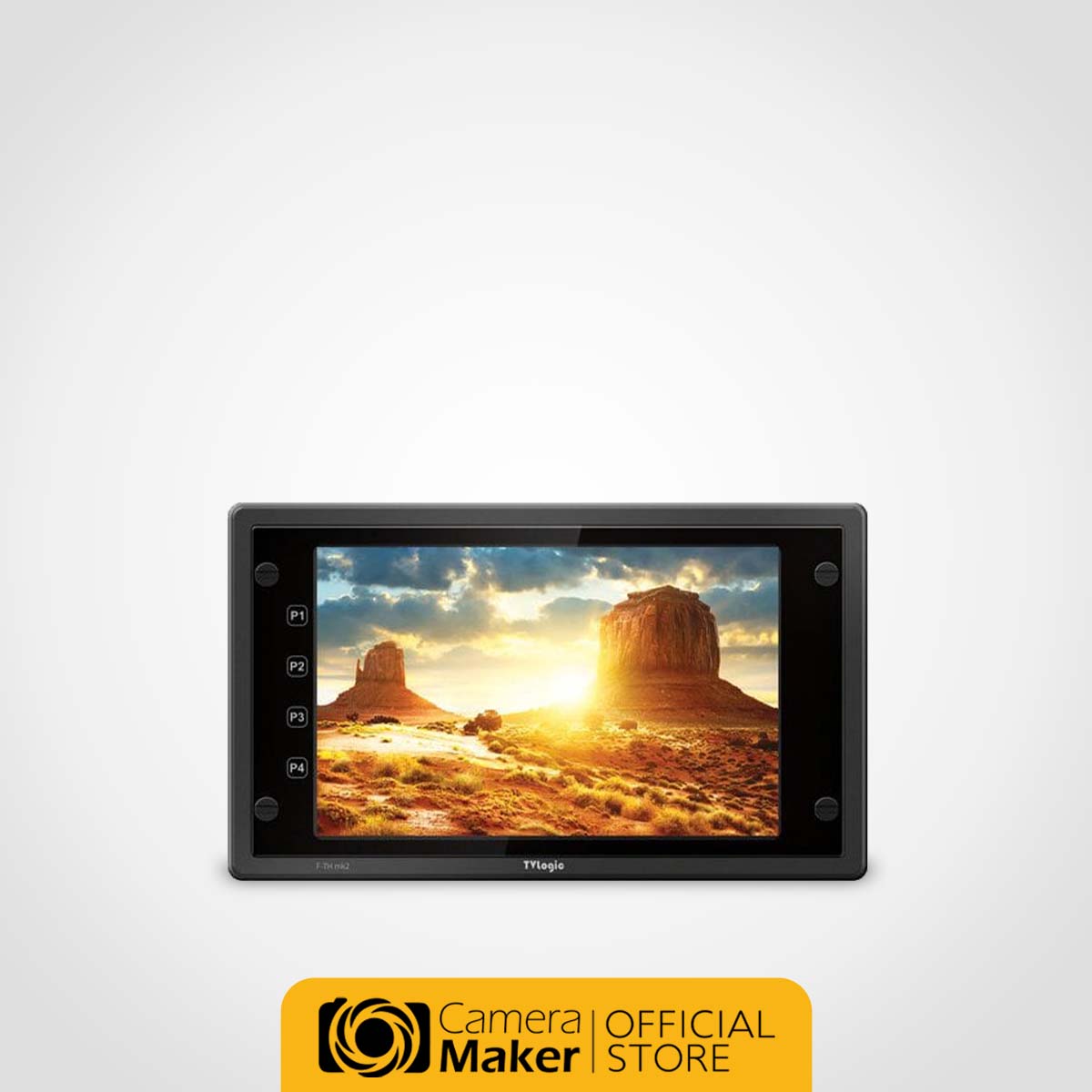

The F-7H mk2 is a 7’’ 1920×1080 resolution field monitor that offers max. luminance of 3,600nits with enhanced sharpness and peaking boost function via new image processing engine. While delivering the same high quality picture and professional features of the previous model, F-7H mk2 shows far less reflection with Anti-Glare film and faster access to frequent preset modes via front touch keys.
| Size | 7″ |
| Resolution | 1920 X 1080 (16:9) |
| Pixel Pitch | 0.078(H)x0.078(V)mm |
| Color Depth | 16.7M |
| Viewing Angle | 160°(H) / 160°(V) |
| Luminance | 3,600cd/m2 |
| Contrast Ratio | 1,200:1 |
| Display Area | 151.2(H)×94.5(V) mm |

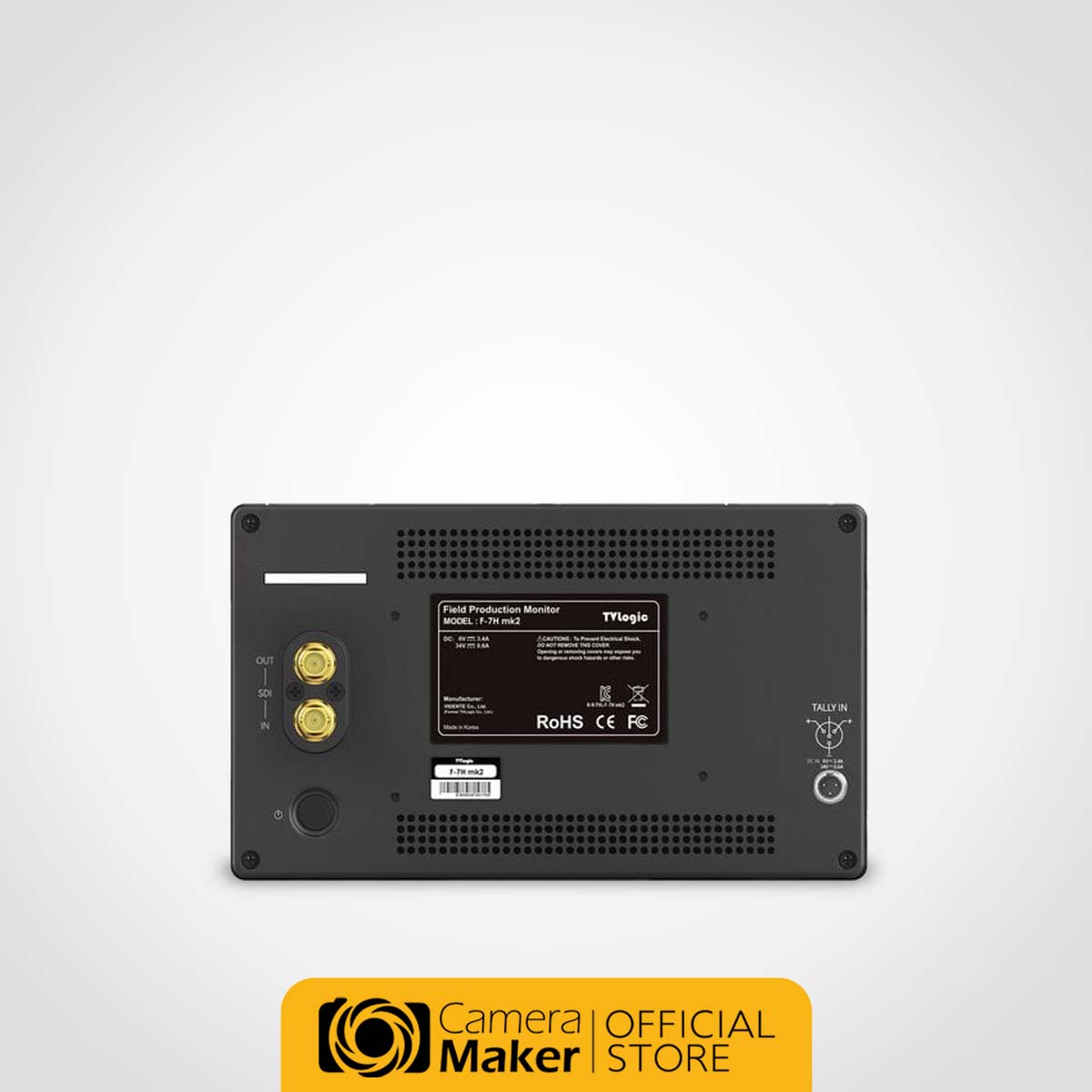

Input
| 1 X BNC | 3G-SDI Input |
| 1 X HDMI | HDMI Input |
Output
| 1 X BNC | 3G-SDI Output |
| 1 X HDMI | HDMI Output |
Input Signal
| 3G SDI | 2.970Gb/s |
| HD SDI | 1.485Gbps |
| SD SDI | 270Mbps |
| HDMI | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF)/1080i(60/59.94/50)/720p(60/50)/ 480i(60)/480p(60)/576i(50)/576p(50) |
SDI Input Signal Formats
| SMPTE 425M-A/B | 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF) |
| SMPTE 296 | 720p (60/59.94/50) |
| SMPTE 274 | 1080i (60/59.94/50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF) |
| SMPTE 125 | 480i (59.94) |
| ITU-R BT.656 | 576i (50) |
| 2K Format | 2048 x 1080p (24/24sF/23.98/23.98sF) |
Audio
| Audio In | Embedded Audio |
| Audio Out | Analog Stereo (Phone Jack) |
FPGA Functions
| , 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y’) Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut., Arri Camera Metadata |
Calibration
| , 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import |
Other Functions
| USB | Firmware update by USB memory stick |
| Ethernet |
Options
| Battery Bracket, HDMI Bracket, Camera Mount, Ball Head, Carrying Case, D-Tap Cable, External Acrylic Filter, Gold Mount, Sun Hood, L-Type BNC Connector , V-Mount |
