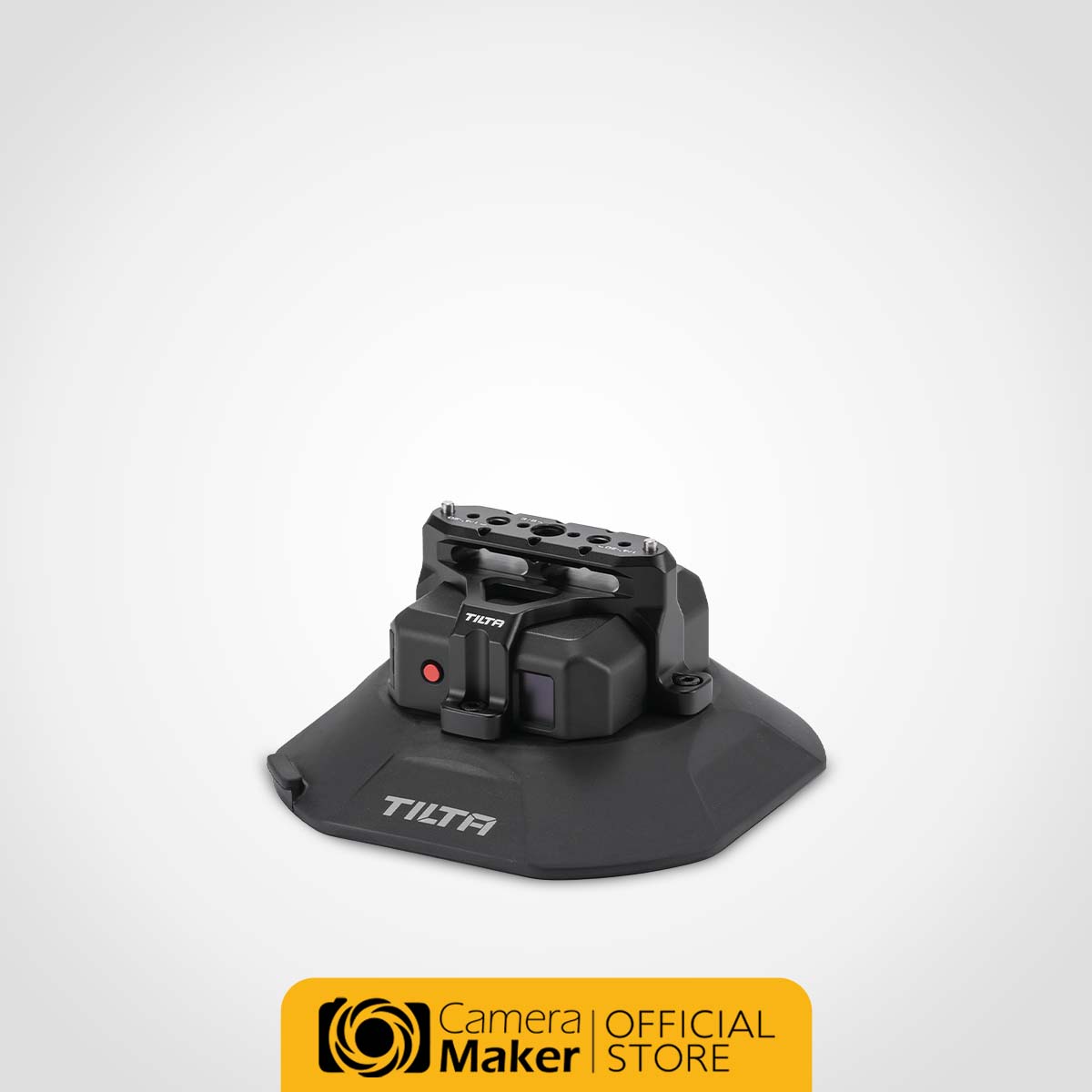

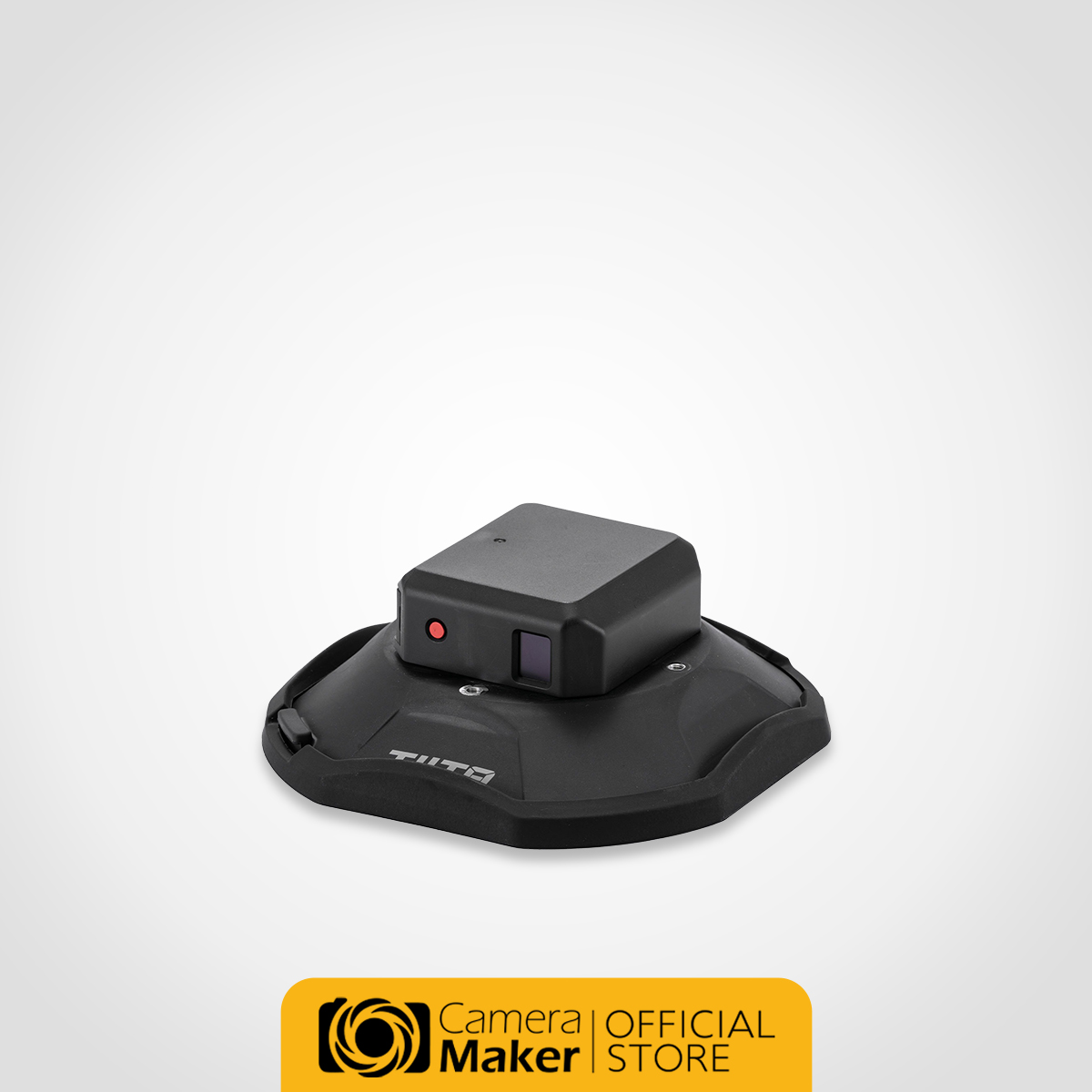

Tilta Hydra Electronic Suction Cup 4.5″

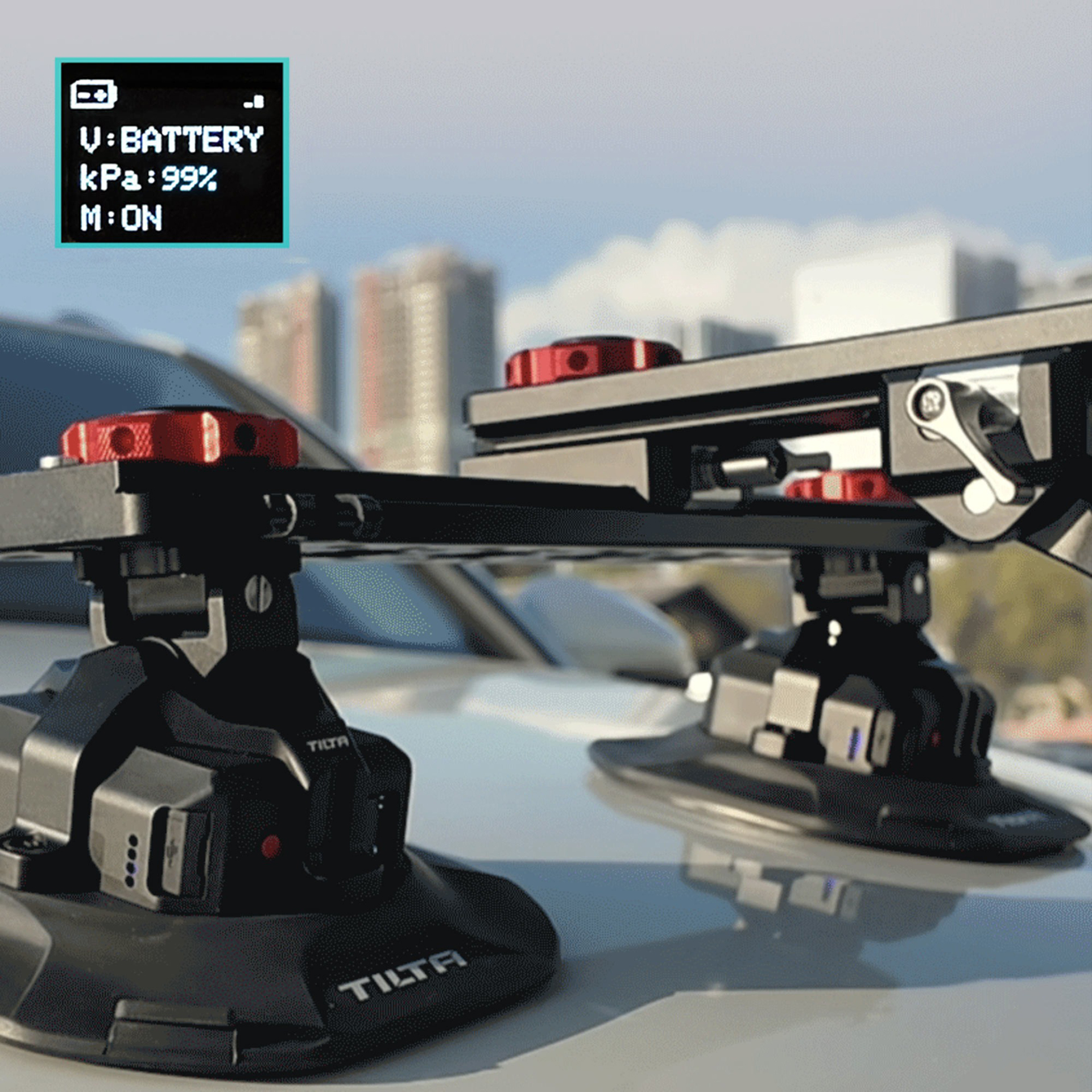

These next generation suction cups feature air pressure detection which monitors 1000 times per second in order to recognize and display status information on an electronic screen.

When the system detects loss of pressure, the motor pumps out additional air automatically in order to prevent the suction cups from becoming detached.

This integrated high-performance motor are powered via an internal battery and completes electronic suction within *5 seconds, which greatly increases the speed in which these suction cups can be attached.

This 2000mAh battery can run for over 14 hours continuously under normal conditions. The battery also supports a 5V/1A USB-C external power supply input, allowing for even longer uninterrupted shooting via additional power sources.

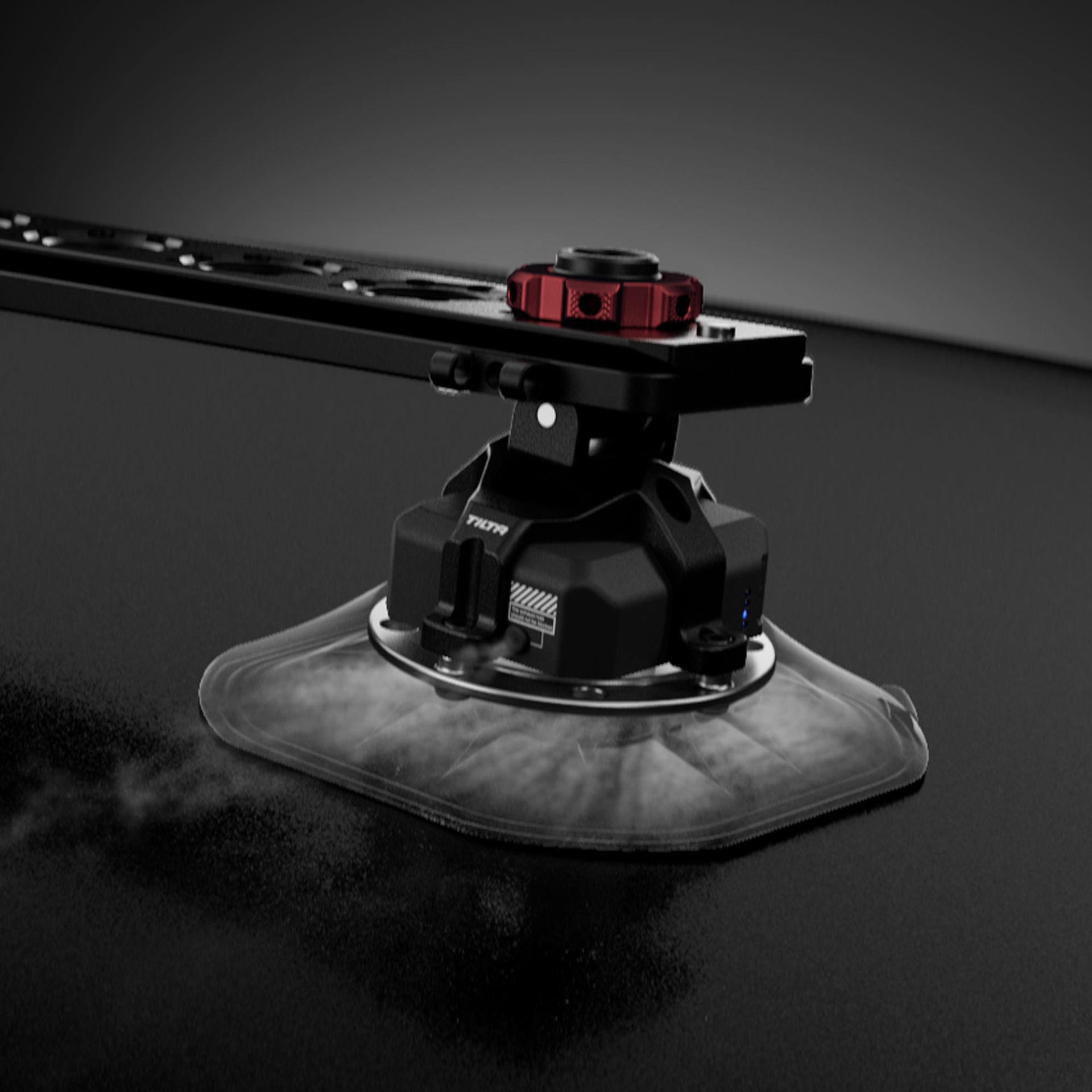

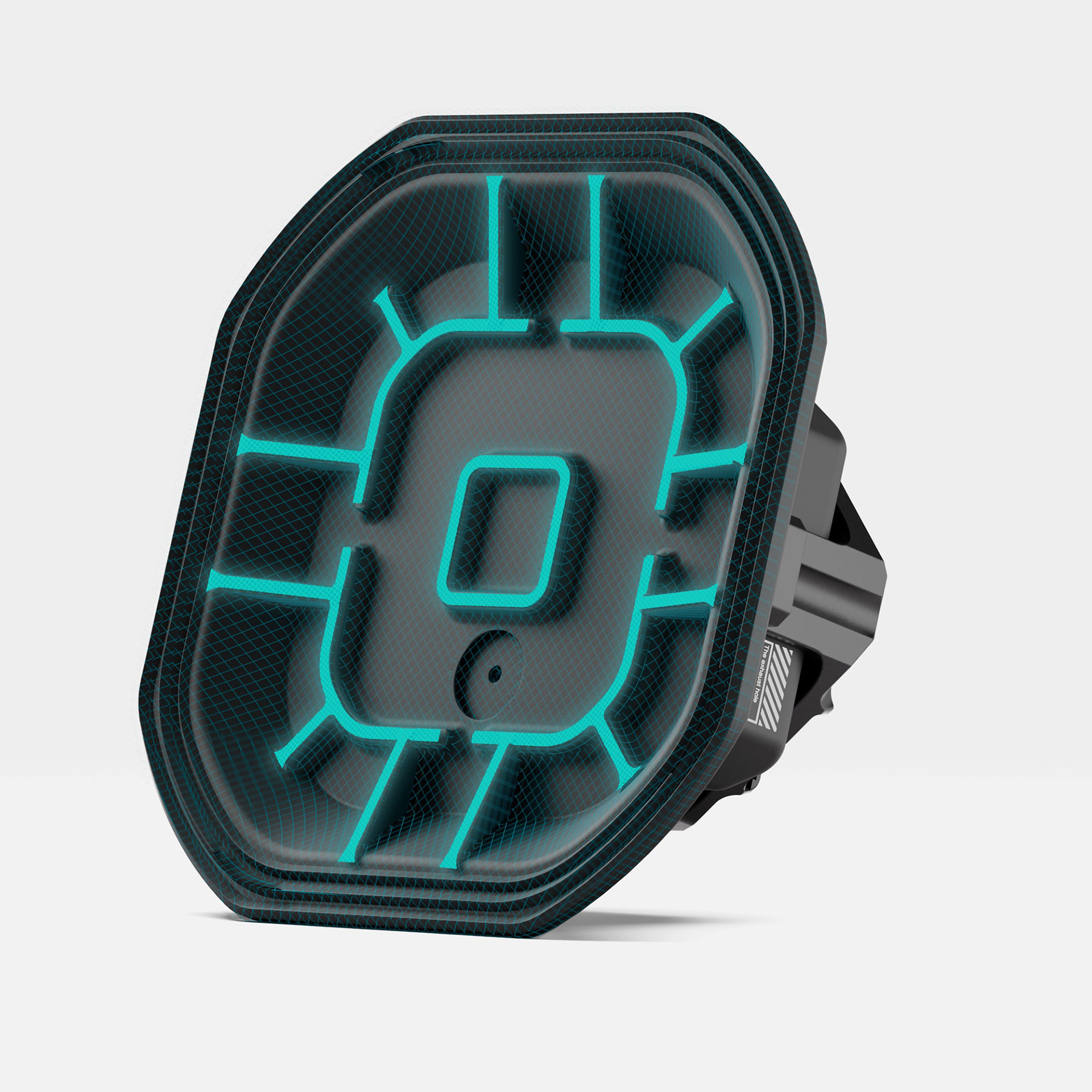

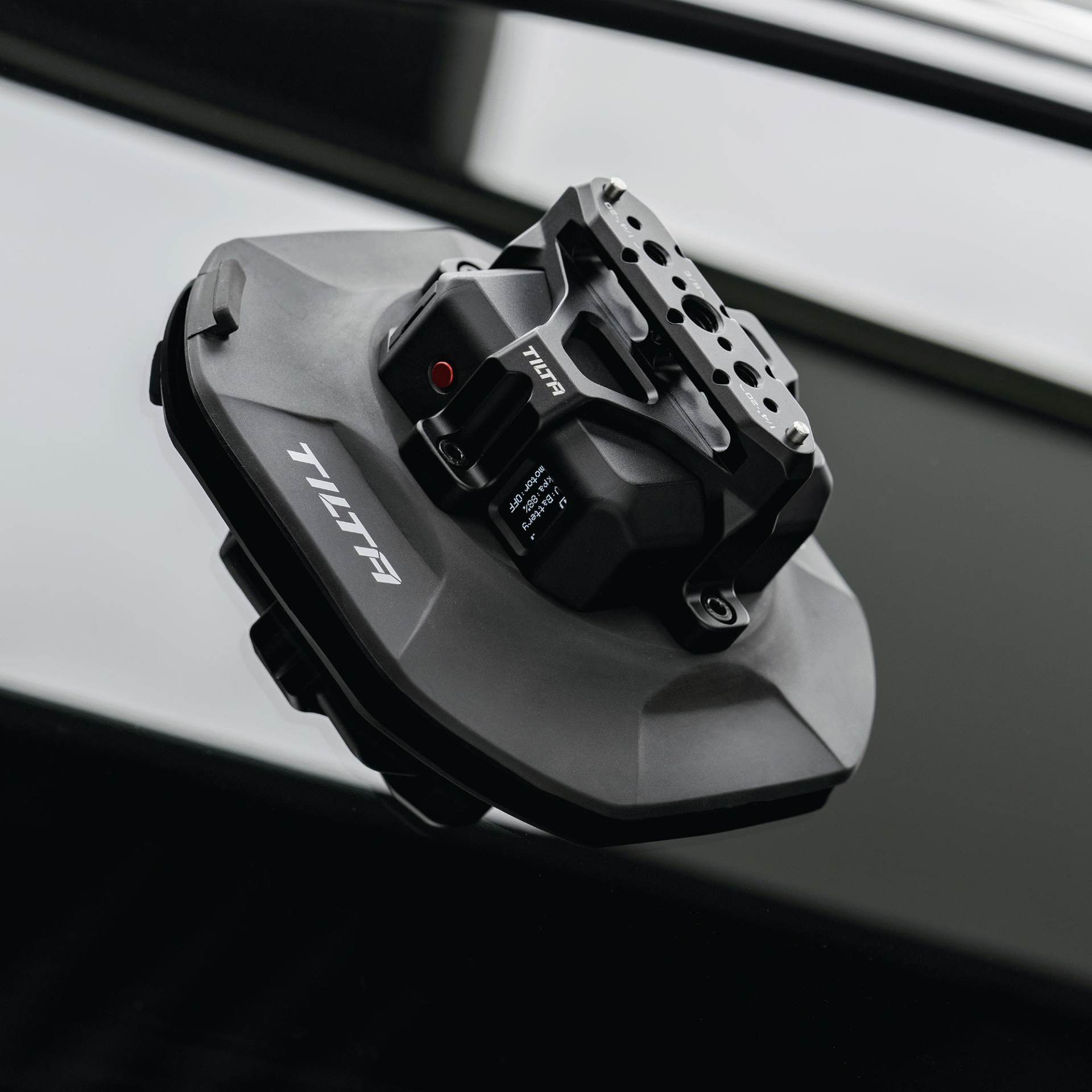

The mechanical structure of the suction cup has been enhanced with an optimized structure featuring a new compartmentalized design. This increases the contact area by 20% compared to standard suction cups for added stability and reliability.

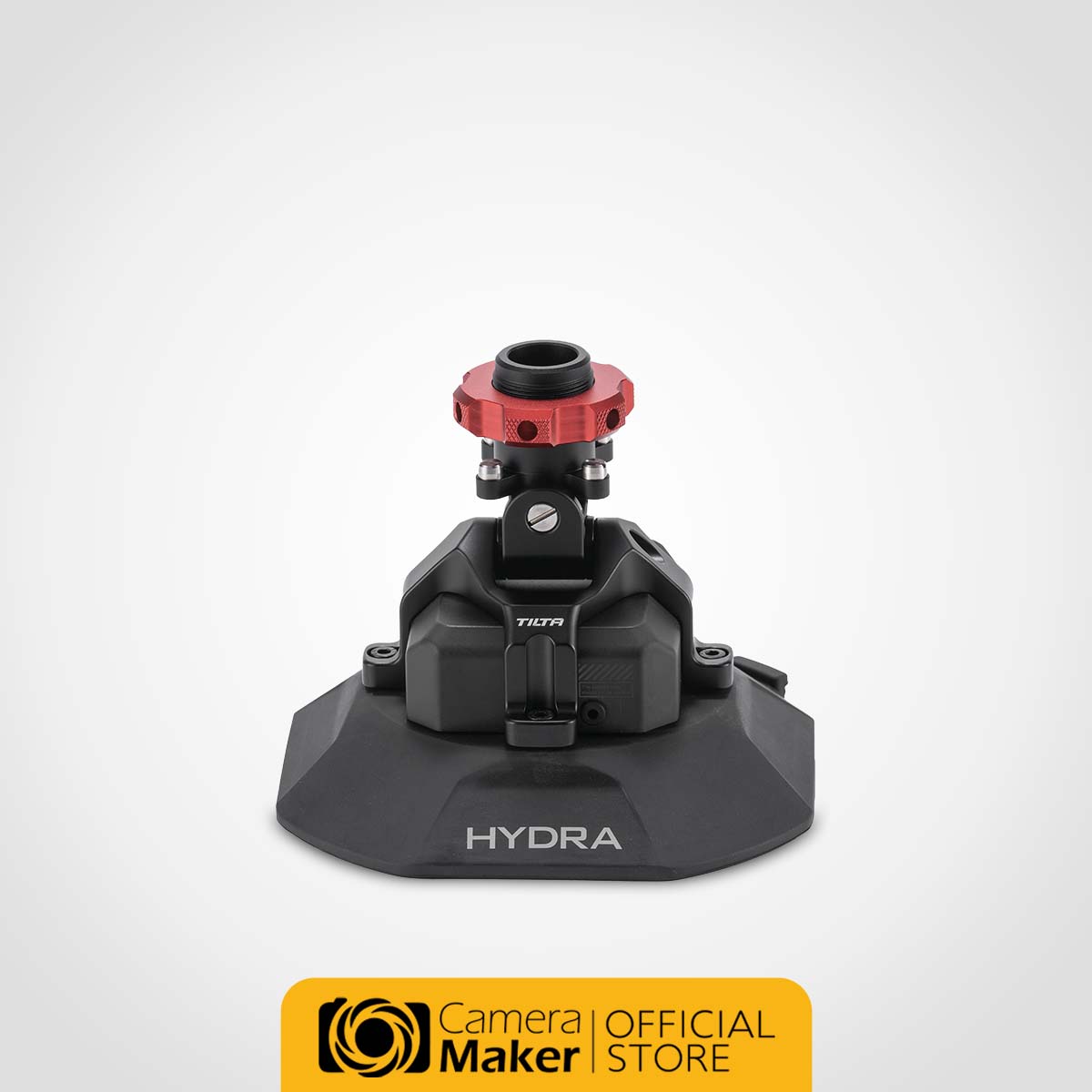

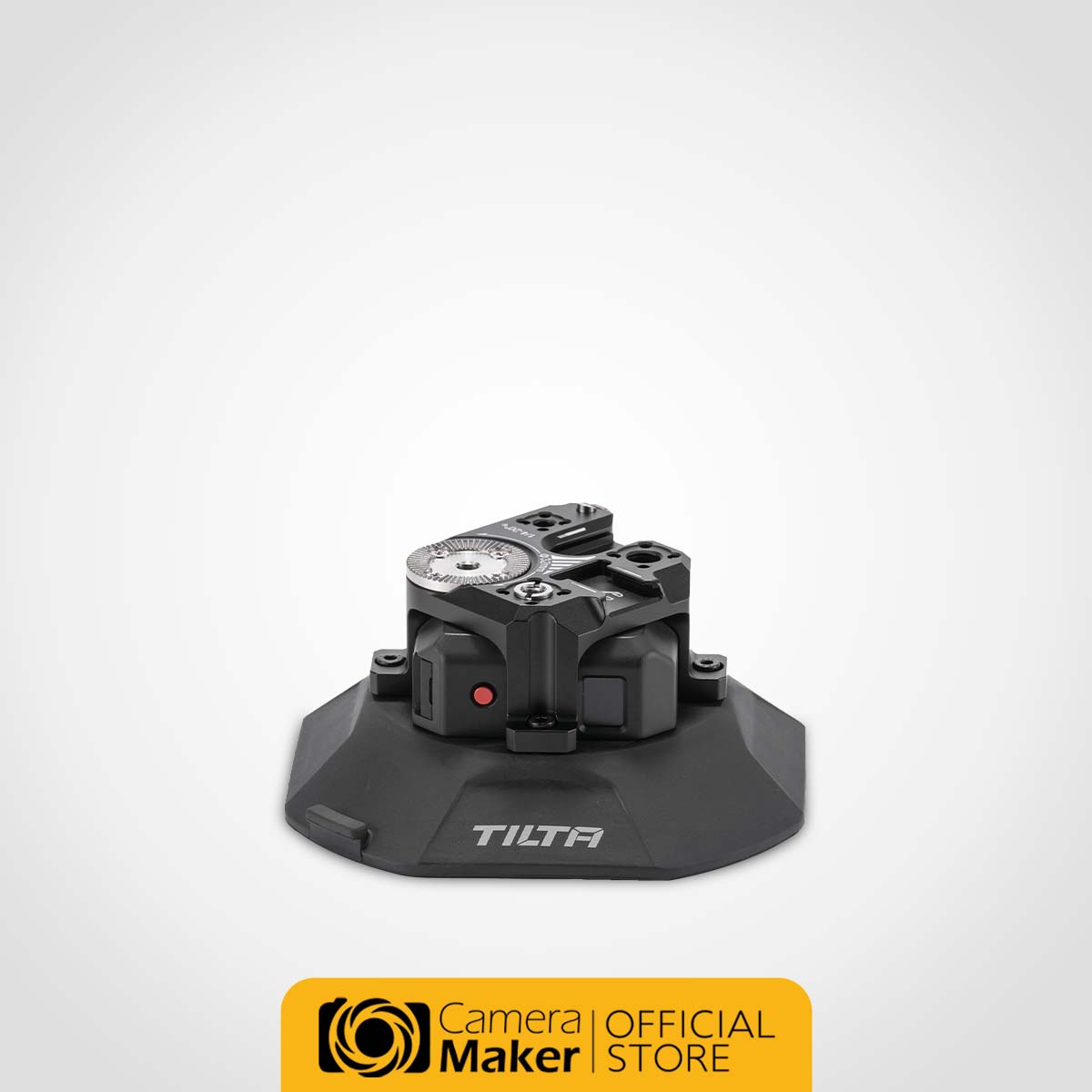

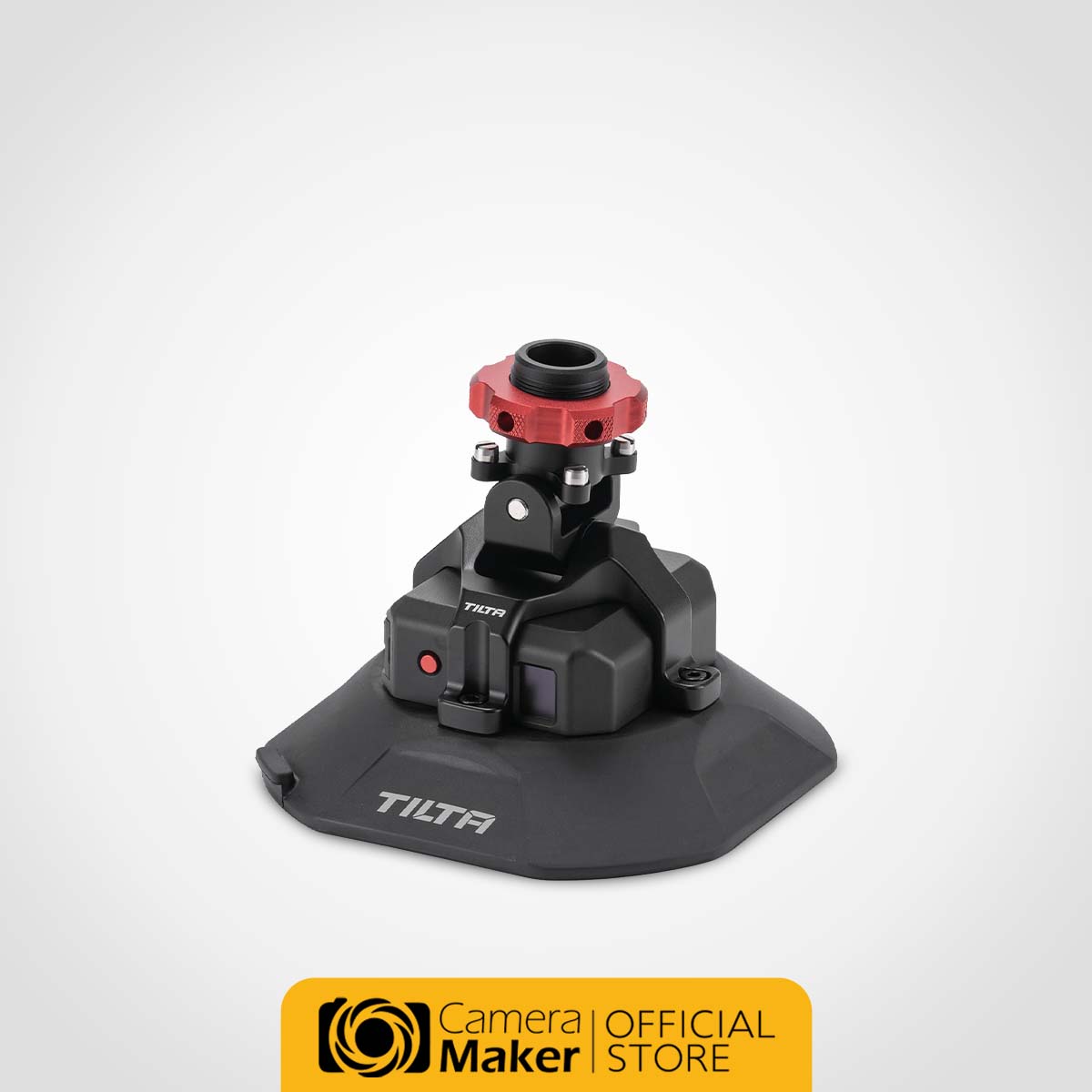

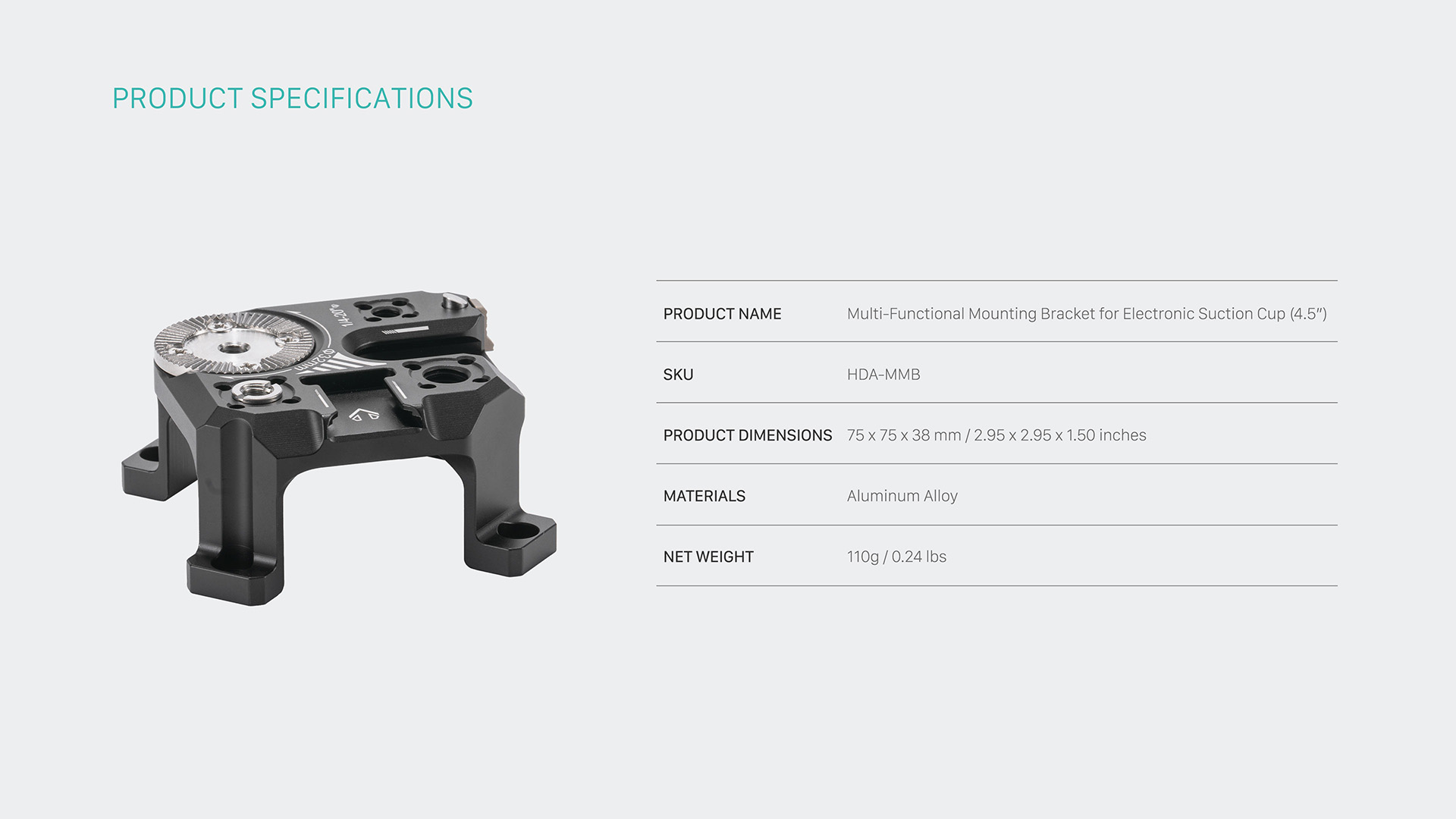

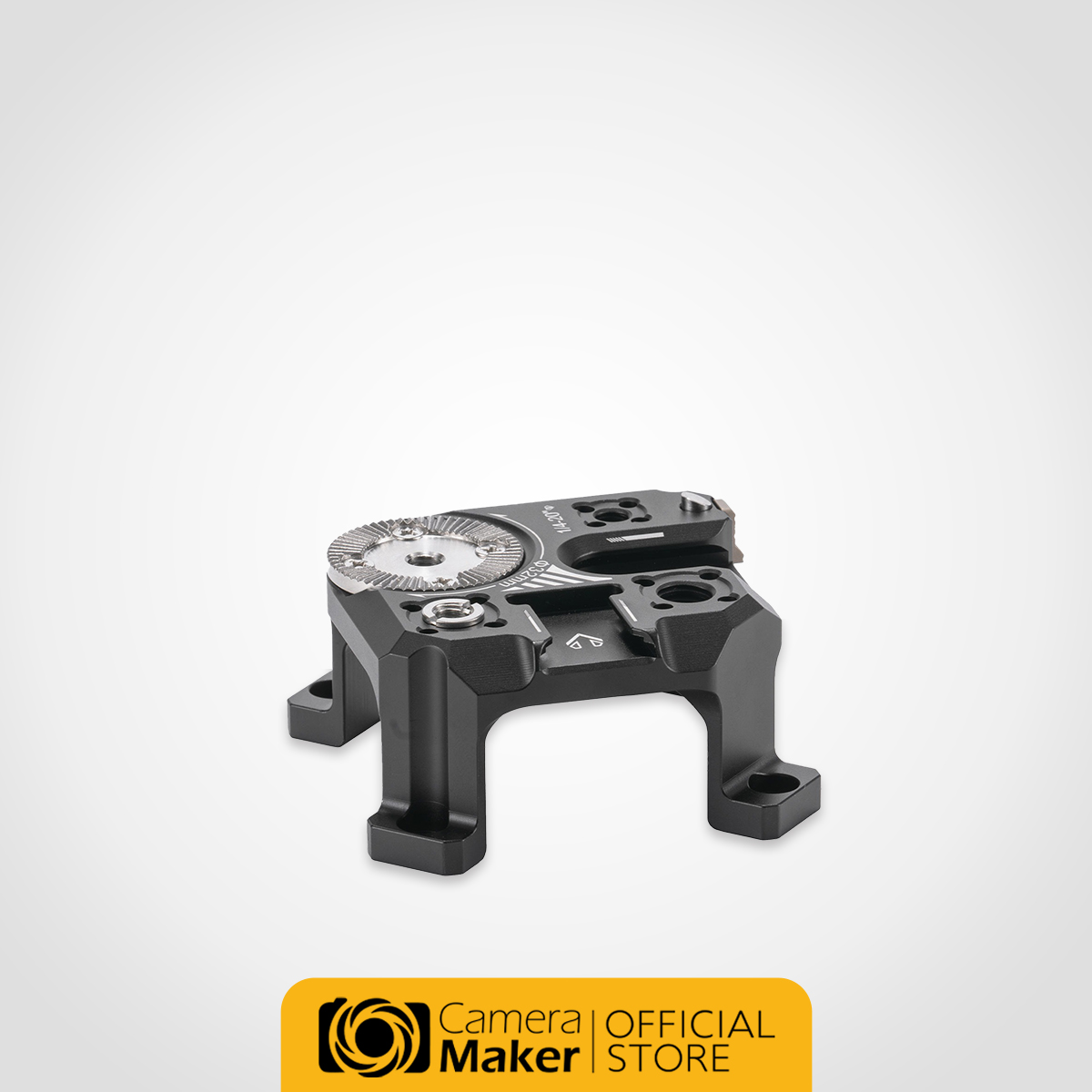

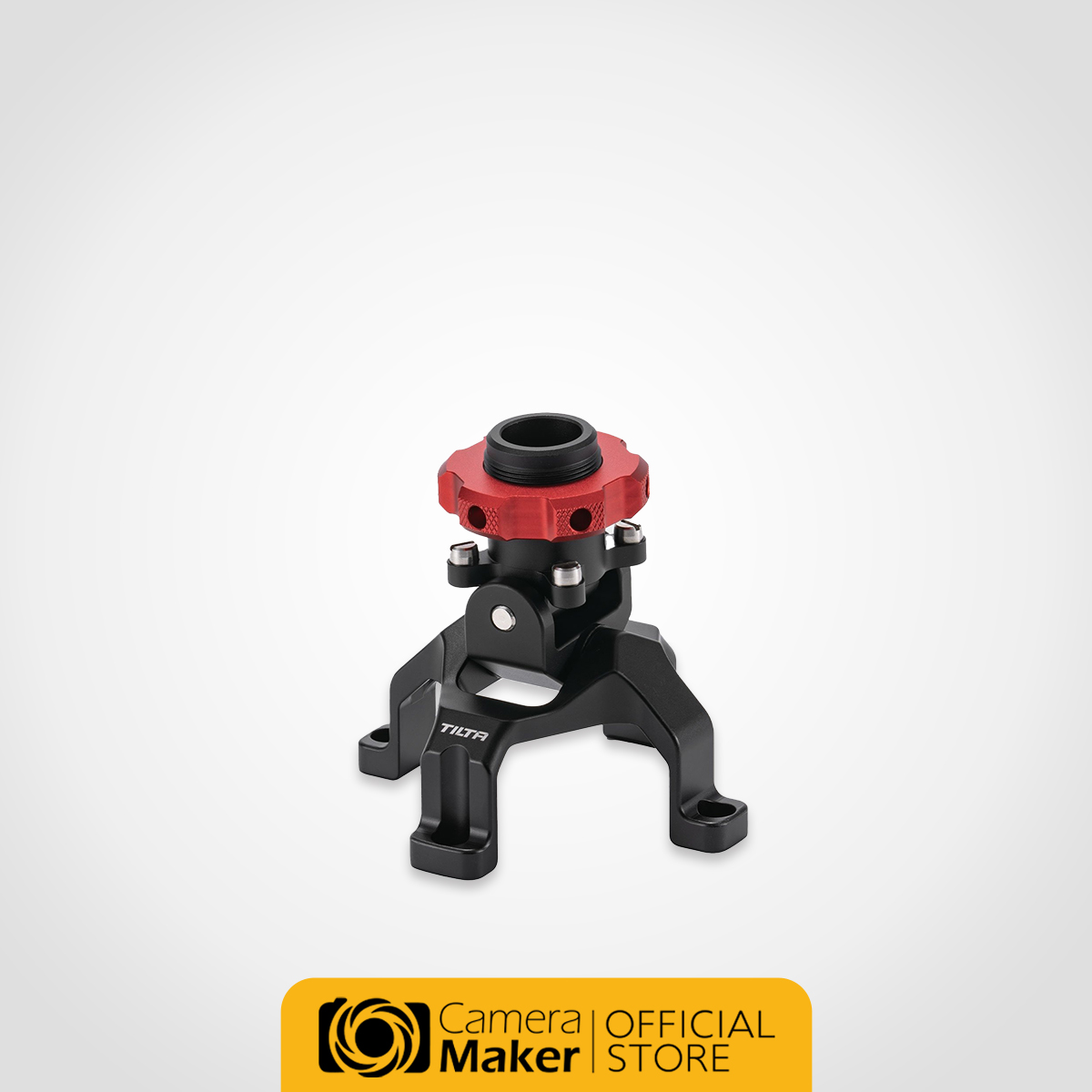

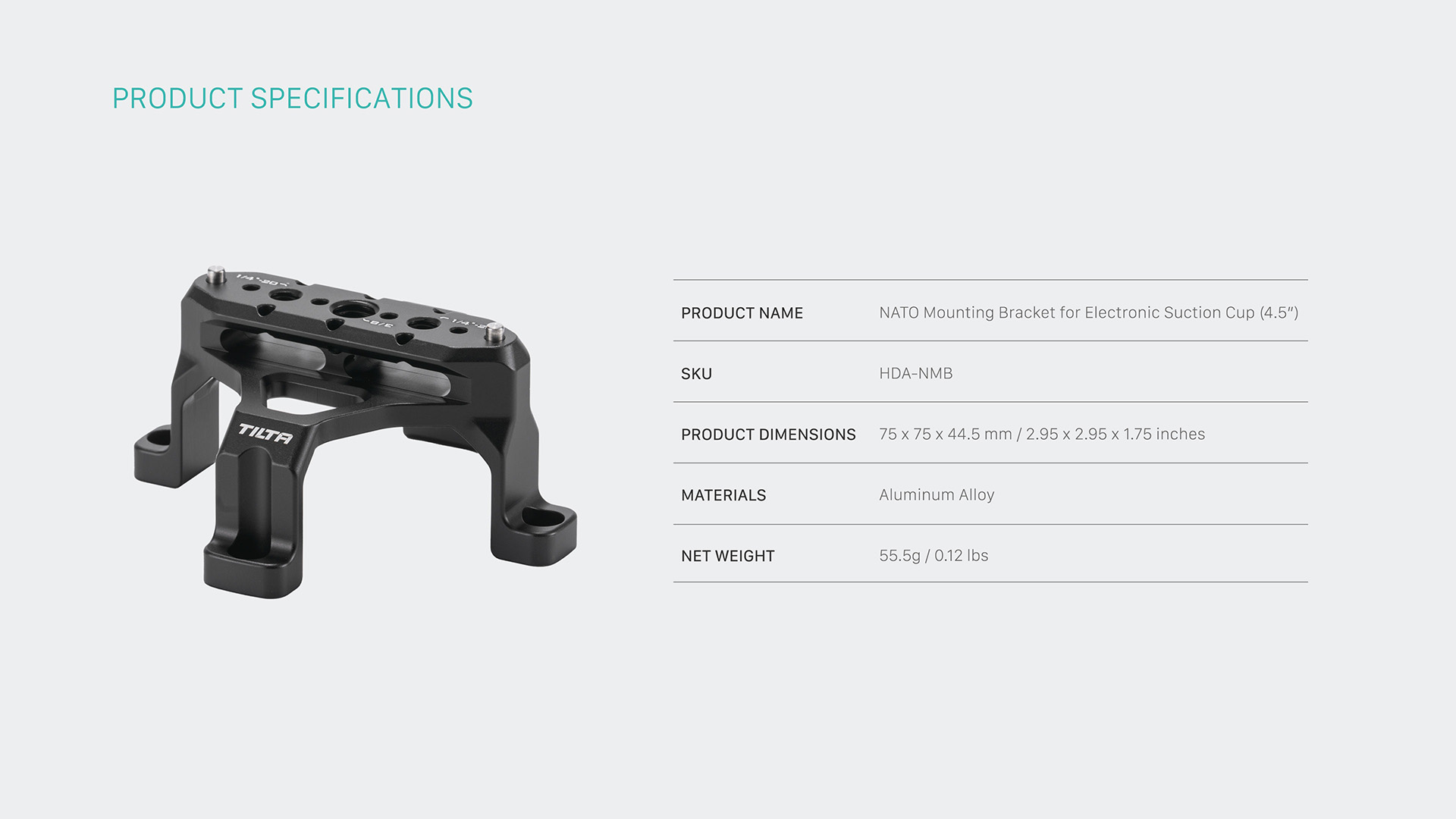

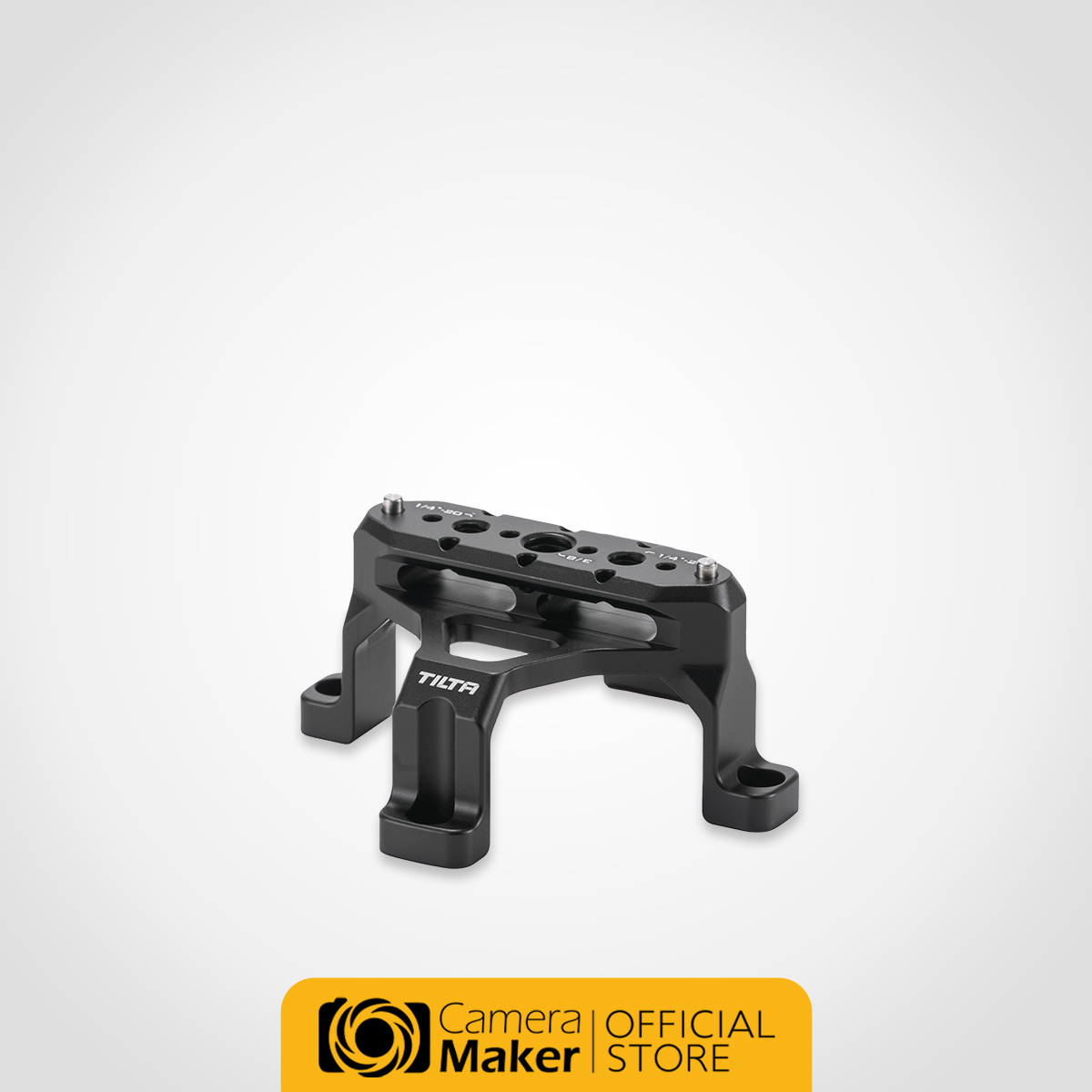

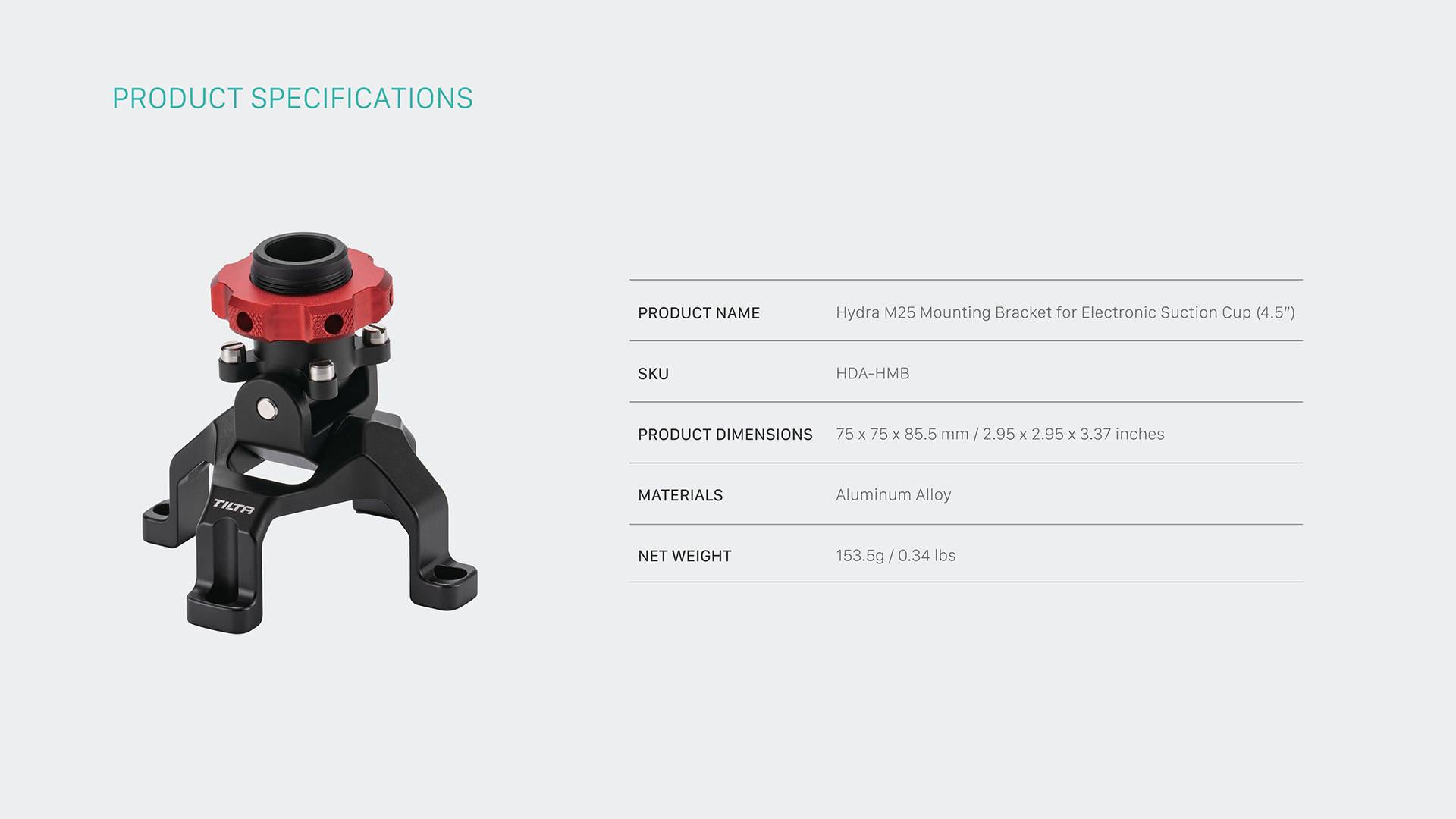

The modular design allows for various mounting plates to be used, which makes these suction cups easy to use with different support systems. The options include support for the Hydra Alien’s M25 thread, NATO, as well as a Universal Multi-Mount option in order to cover a wide range of scenarios.

Please note: Before use, please clean the intended surface and ensure the suction cup is fully attached to the surface. A small amount of moisture can help improve the seal and increase suction strength. When using the suction cup on a wet surface, the exhaust/liquid discharge port will expel liquid, which is normal.

ELECTRONIC SUCTION CUP SAFETY NOTICE:

The Electronic Suction Cup, like other suction cups, has the potential to leave marks on various surfaces. It is recommended to take precautions such as using protective film or other materials to protect the surface being used. Using these suction cups in direct sunlight or in hotter environments can increase the chance of leaving a mark. It is not recommended to use these suction cups with wrapped vehicles.

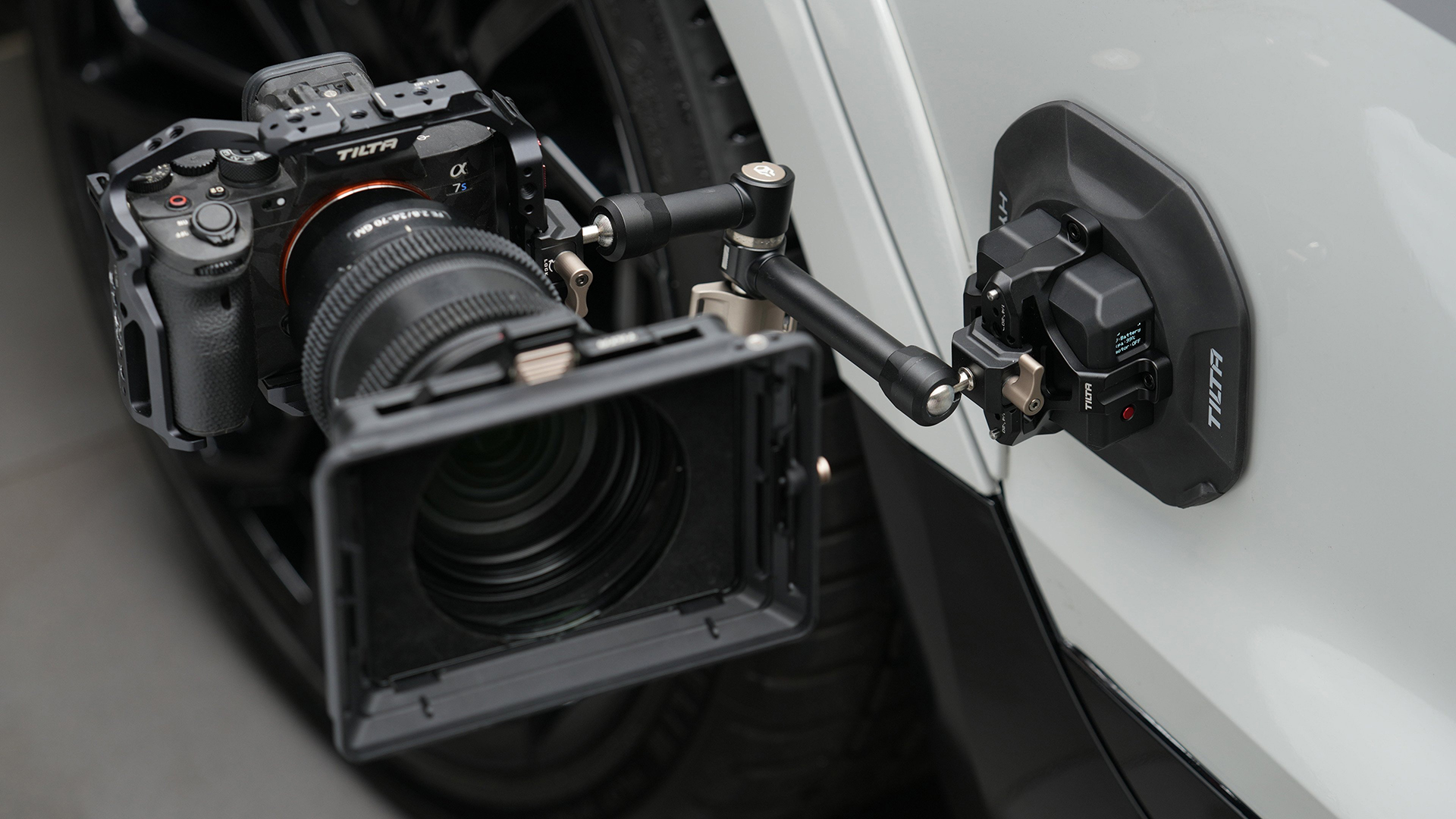

It is recommended to use this suction cup on a flat surface with the weight of the arm balanced over the center of the suction cup. Extending the arm past the suction cup or side mounting the suction cup can increase the risk of failure. In these situations we recommend taking additional precautions such as further securing the system with Ratchet Straps or Safety Chains.

Regardless of additional safety measures, we always recommend pushing down the suction cup when first attaching it to any surface. The suction cup should be as flat against the surface as possible and should look noticeably flatter than when not attached. Attaching the suction cup without applying physical force to it can greatly increase the chance of accidental disconnection.
