Pre Order
– Max Brightness 2300nits
– Contrast Ratio 1000:1
– Resolution 1920×1200
– 6G-SDI 4K End-to-End Workflows
– Camera Control Canon, Sony, ARRI, RED®
– Color Processing 10-Bit
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

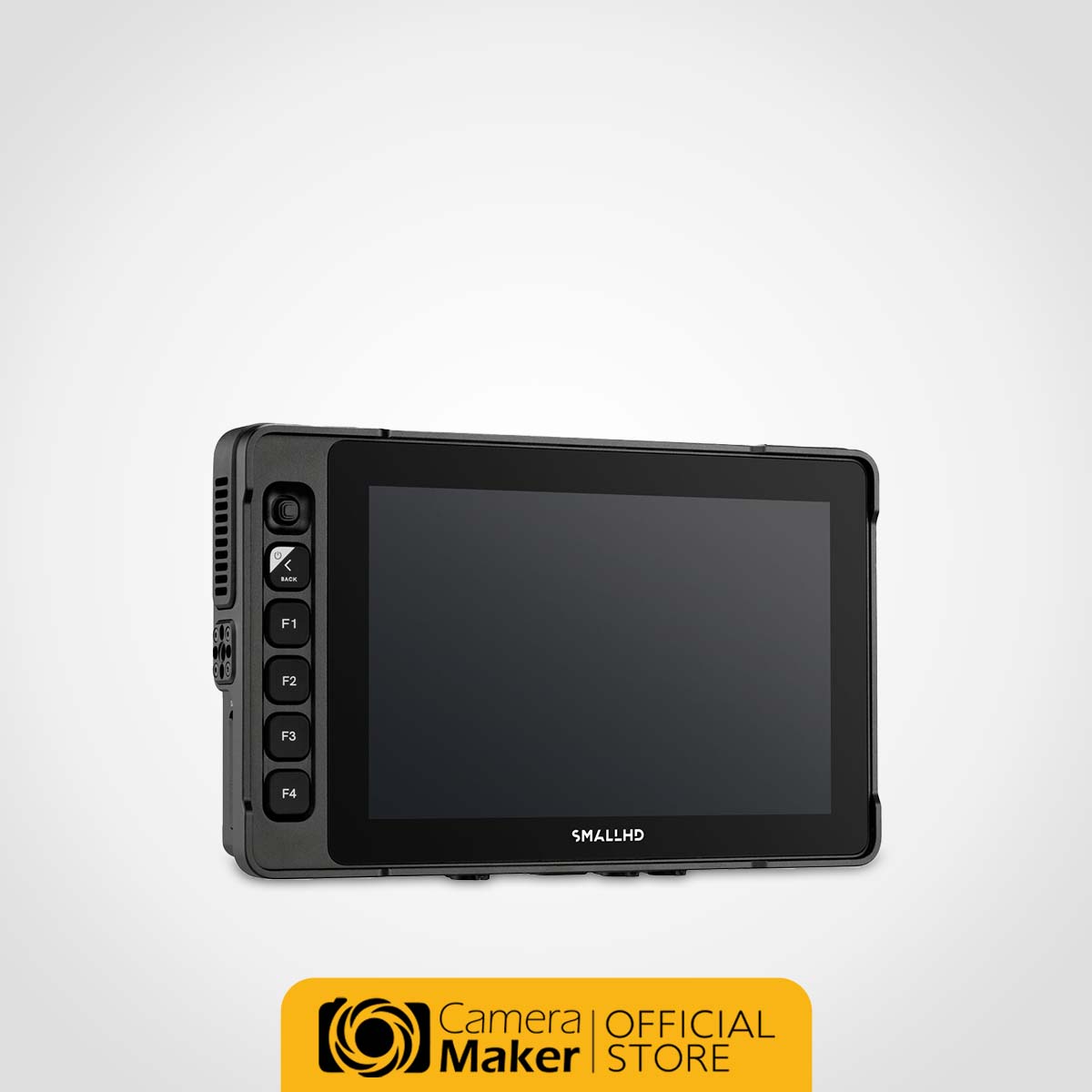

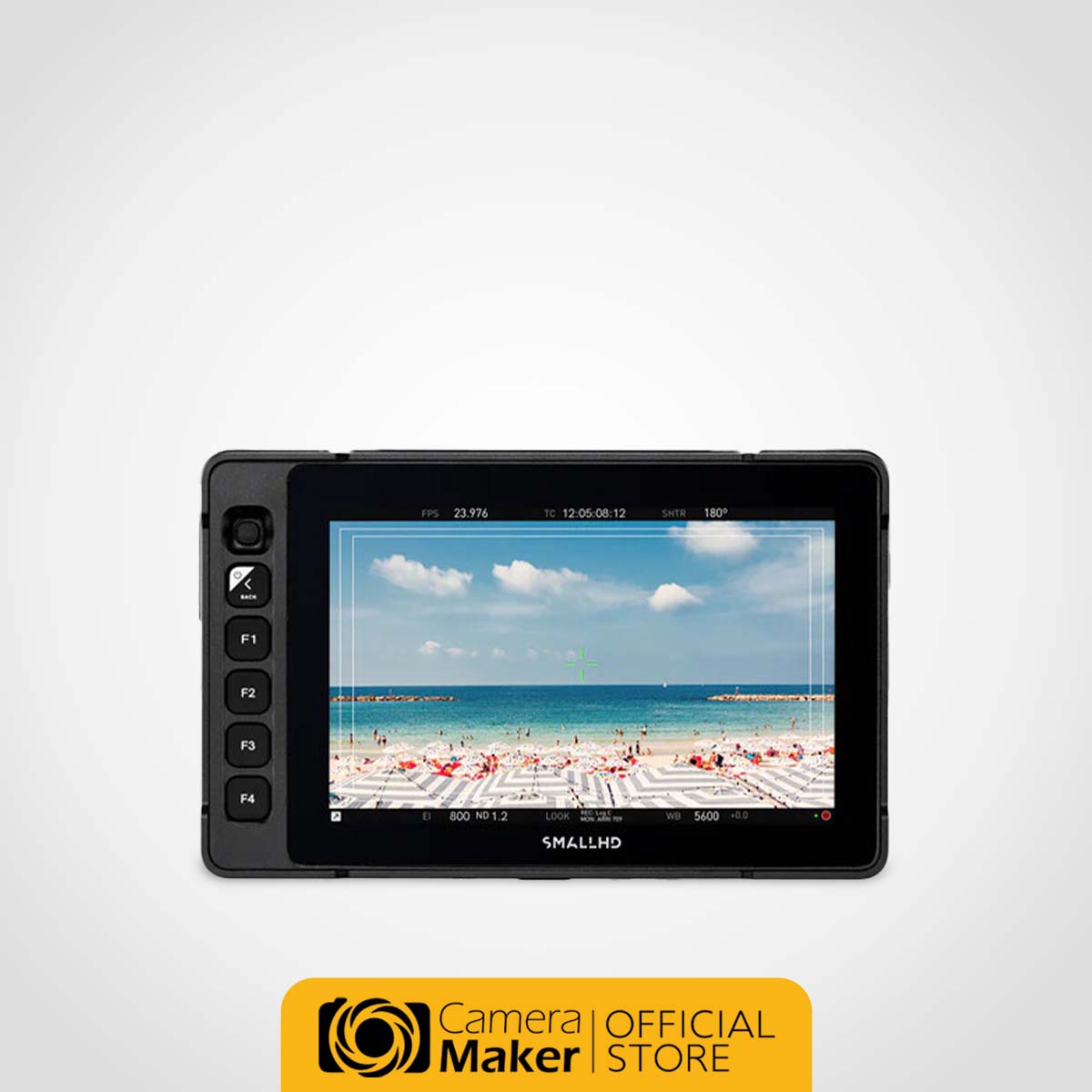

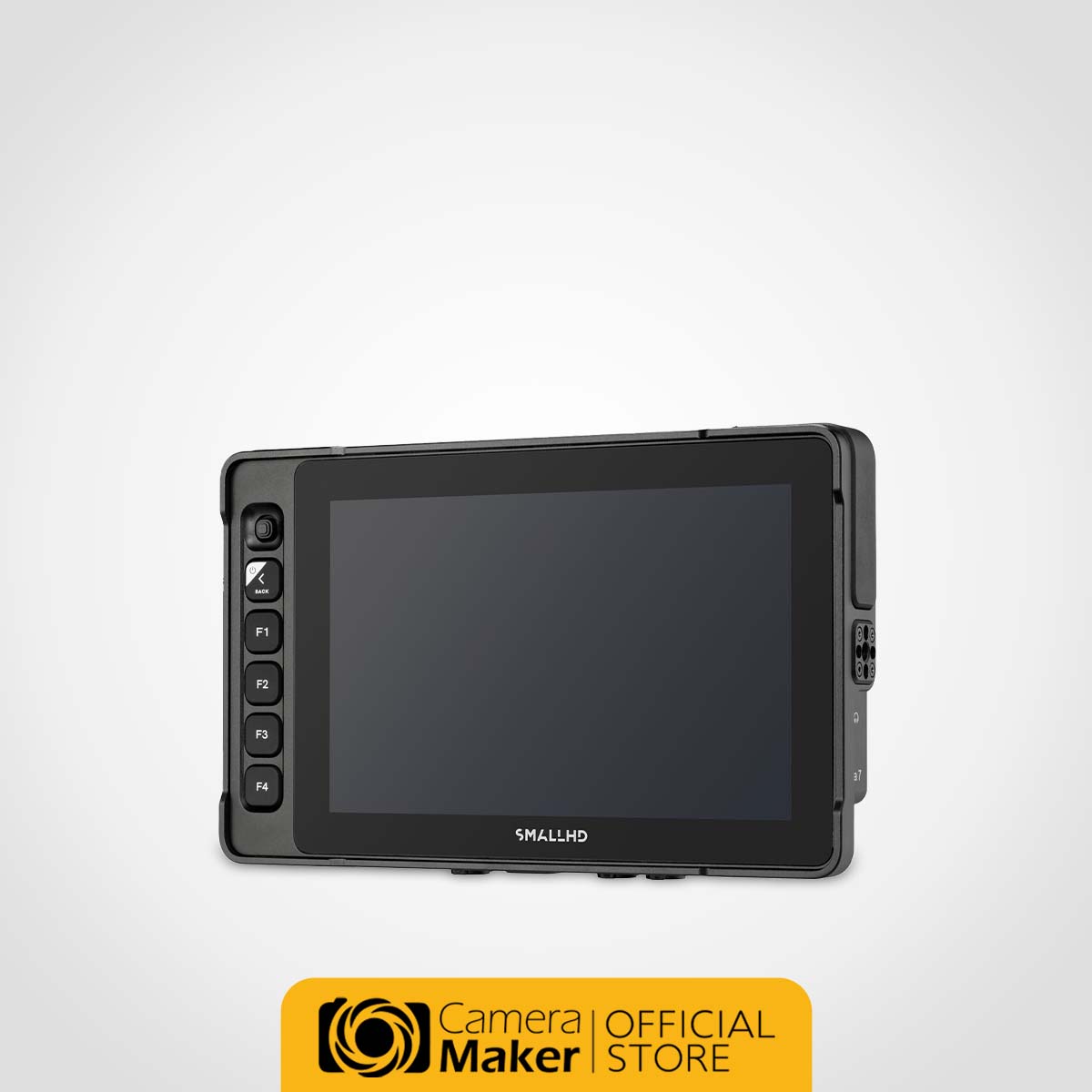

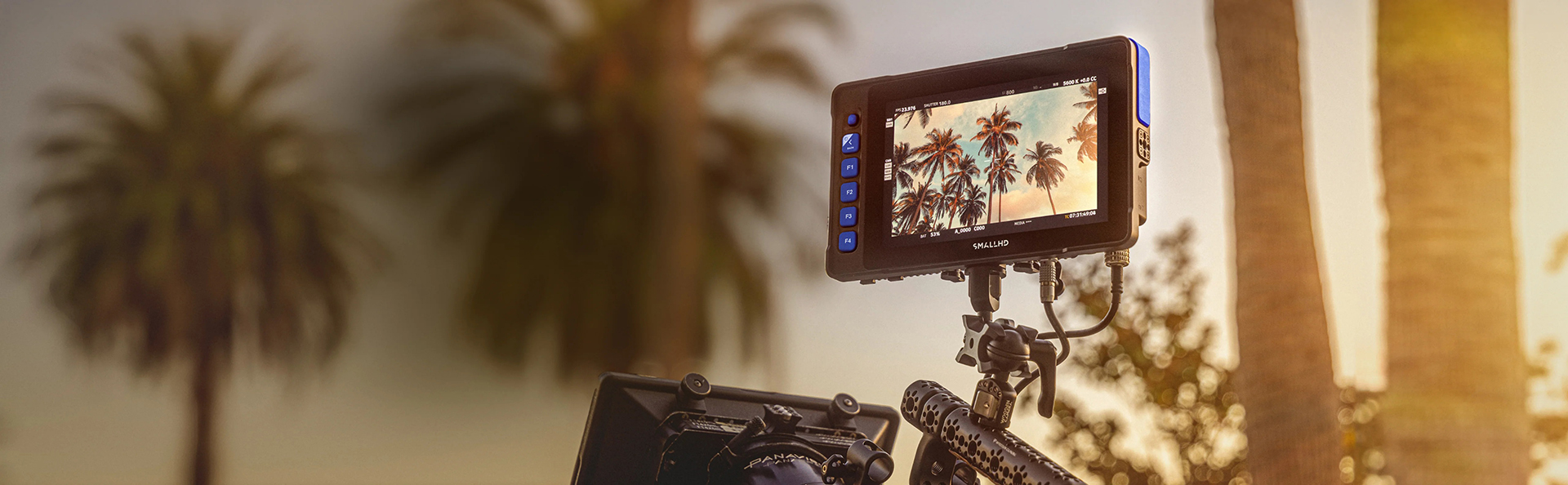

the Ultra 7 offers a stunning 2300nits brightness and a full suite of large front-facing custom-function buttons for maximum control in all conditions. Experience all your favorite PageOS tools and functions on a fully loaded 7-inch touchscreen field monitor powerful enough to ingest a 4K signal with 6G-SDI.
Ultra 7 is adaptable to all situations and conditions, including optional Gold Mount, V-Mount, or B-Mount Micro Battery Plates for a compact power solution, an Ethernet port to enable ARRI and Sony VENICE Camera Control, and a 5-Pin USB port for RED® Camera Control (Camera Control license and cable sold separately).
Designed to withstand the extremes of any production environment, Ultra 7 has the processing power of our 4K Production monitors, customizable function buttons, and shock absorbing bumpers.
the Ultra 7 offers 2300nits of brightness, 6G-SDI that allow you to ingest 4K signal, a 2-Pin power passthrough for cleaner builds, an Ethernet port for camera control, plus a joystick and tactile physical buttons for control in any conditions. Utilize all your favorite PageOS tools, functions, and settings pages on a fully-loaded 7-inch touchscreen monitor.

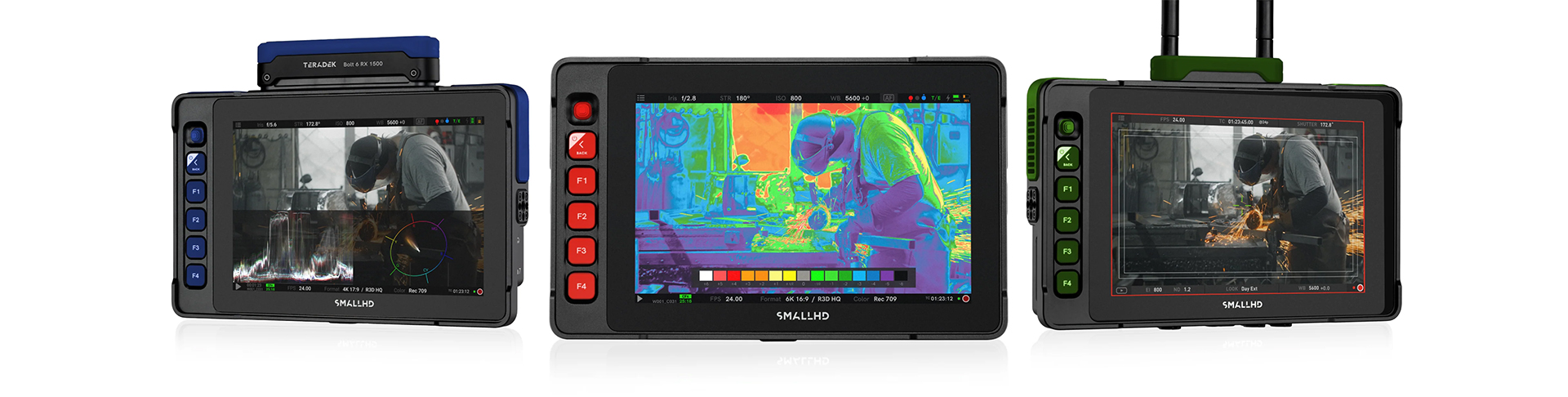

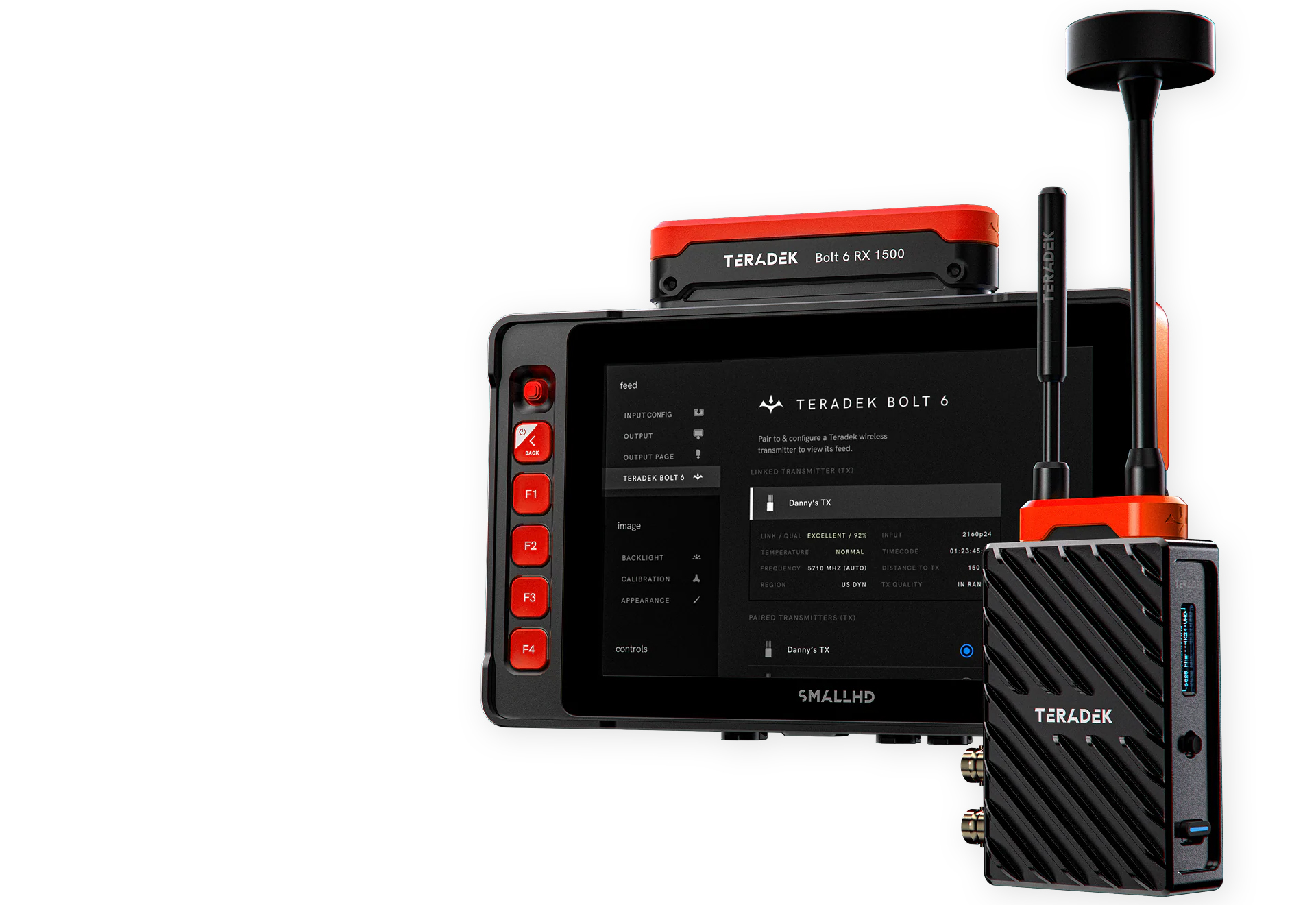

Finally, an ultra bright 7-inch handheld monitor with a fully- contained Teradek Bolt 6. Rugged and protected from the elements, this is a handheld monitor that can withstand even the most destructive directors.
Built-in Bolt 6 units utilize the clear airwaves of the newly-open 6GHz spectrum, with RX and TX models that are compatible with any Teradek Bolt 6, and backwards-compatible with any Bolt 4K system in 5GHz mode.

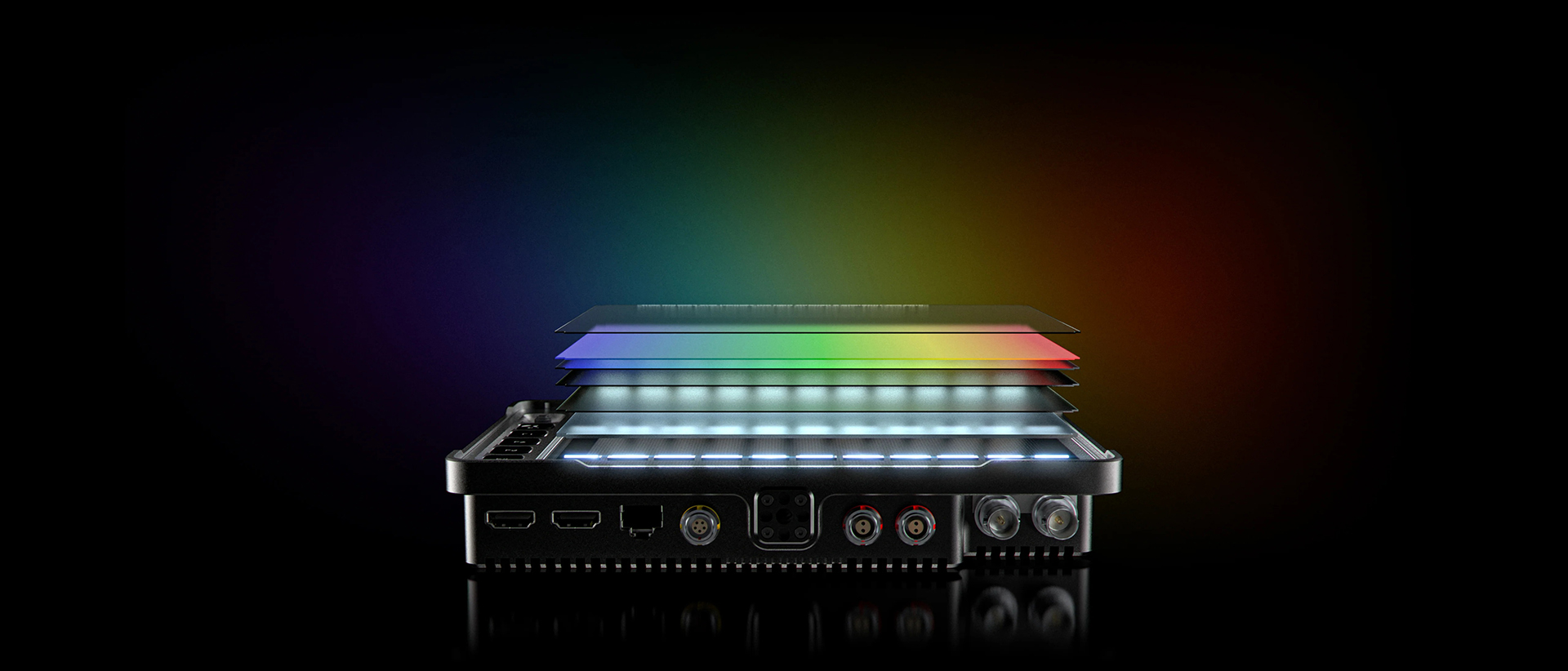

SmallHD LEDs for Ultra 7 panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring the purest color accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.
With an IP54 rating and ultra-durable water, dirt, heat, cold, and drop-resistant chassis, Ultra 7 was designed to withstand all the rigors and elements that professional filmmakers endure.

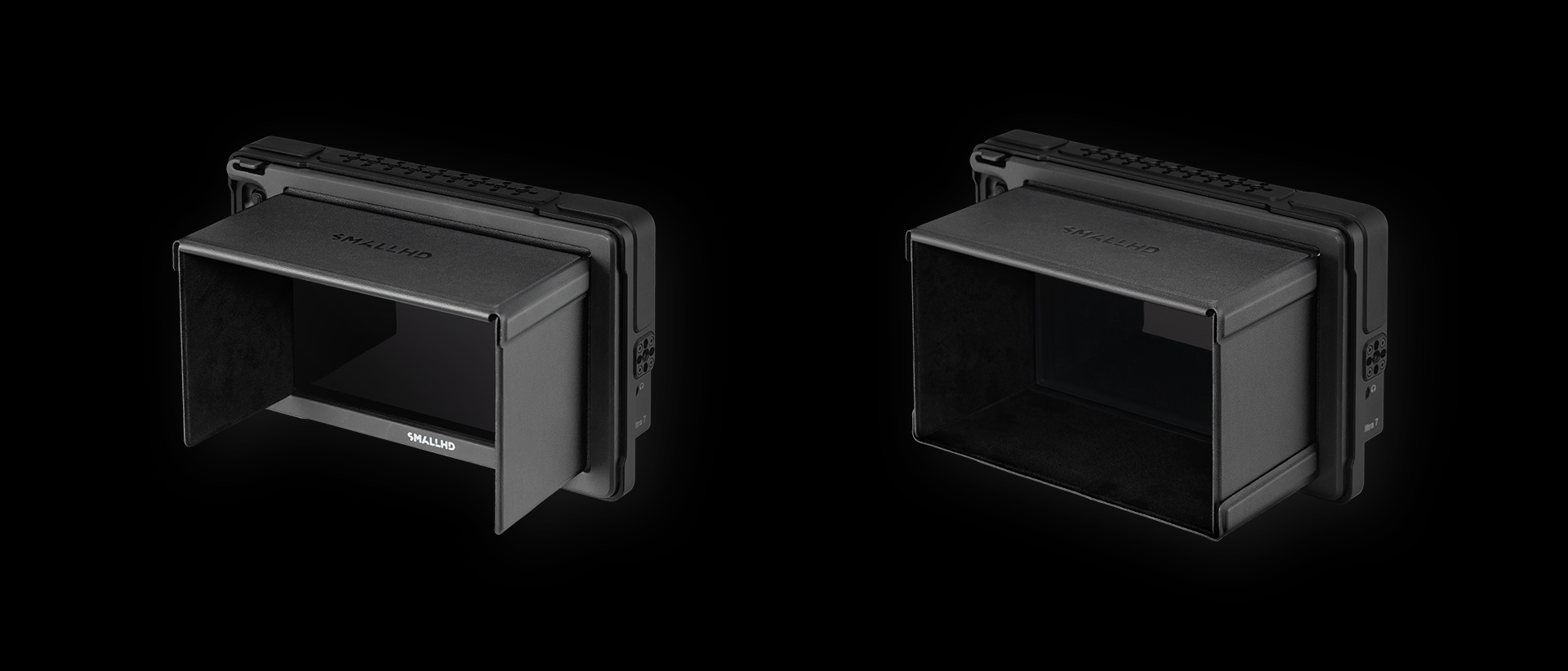

Snap out the sun The reimagined Ultra 7 sunhood connects to the monitor in seconds using a powerful magnetic array. This means no tools for installation or removal. When closed, the sunhood also provides total protection of the panel.
| ENVIRONMENTAL | |
|---|---|
| IP Rating | IP 54 |
| Item Weight (oz) | 32 |
| Dimensions (H x W x L) | 1.36 x 5.12 x 8.23 (in) |
| DISPLAY | |
| Panel Type / Size | IPS LCD / 7.02″ |
| Resolution | 1920×1200 |
| Max Brightness | 2300nits |
| Contrast / Color Depth | 1000:1 / 10-bit Processing (8-bit panel) |
| Backlight / Refresh Rate | LED Edgelit / Synchronizes with input from 48Hz to 60Hz |
| INPUT SIGNAL | |
| 6G-SDI Input Types | YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| 3G/HD/SD-SDI Input | 3G: 1080p60/59.94/50, 1080i120/119.88/102 HD: 1080p30/29.97/25/24/23.98, 1080psf, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.100 SD: 480i59.94, 576i52 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| OUTPUT SIGNAL | |
| SDI Output Types | 3G: 1080p60/59.94/50, 1080i120/119.88/102 HD: 1080p30/29.97/25/24/23.98, 1080psf, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.100 SD: 480i59.94, 576i52 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98, 1080p120, 1080p119.88, 1080p100, 1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p240, 720p239.76, 720p200 YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Input/Output | HDMI & SDI – Incoming Audio Stream is sent downstream via HDMI or SDI connection |
| DATA I/O & CONNECTIVITY | |
| Connectors | SDI: 1x BNC 6G input, 1x BNC 6G input/output HDMI: 1 input, 1 output (Type-A Full size) Audio: 1x 3.5mm 3-pin Stereo Headphone Jack Ethernet: RJ45 |
| POWER | |
| Connector / Voltage | 2-Pin Locking Connector / DC In & Battery terminals: 10V – 34V max |
| Power Supply / Battery | Recommend DC 12~15V (~2.5 amp) / V Mount, Gold Mount Micro Battery Plates |
| Overload Protection | DC input: Reverse polarity |
| SOFTWARE | |
| Imaging Tools | Pixel Zoom (1.1-8.0x), Frame Guides, DSLR Scale, Custom Scale, Anamorphic De-Squeeze (0.75x-2.5x), Image Rotate/Flip, Cross Conversion (Coming Soon), Focus Assist, Peaking, False Color (Rainbow, Arri, Custom 10 nodes), Zebra, Waveform, Vectorscope, RGB Parade, Histogram, Image Capture |
| LUTs & Color Pipe | – 33pt User & Cal LUTs (active even if media removed) – Loadable as Looks or Systemwide – Unique Calibrations saved per Color Pipe |
| Multi-View / Overlay | 2 camera feeds simultaneously / Overlay with Opacity Slider and Blink Setting |
| Camera Control | Compatibility: Arri, Venice 1/2, RCP & RCP2 |
