– 10″ 1920 x 1200 Touchscreen Display
– 4K30 6G-SDI & HDMI Inputs/Outputs
– Bright 2000 cd/m² QD-LCD Panel
– Wireless Connectivity with Teradek Bolt
– IP54 Weatherproof, PageOS Interface
– Optional RED, ARRI, Sony Camera Control
– 5-Pin USB & Ethernet Control Powers
– Onboard Button, Joystick & Knob Controls
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

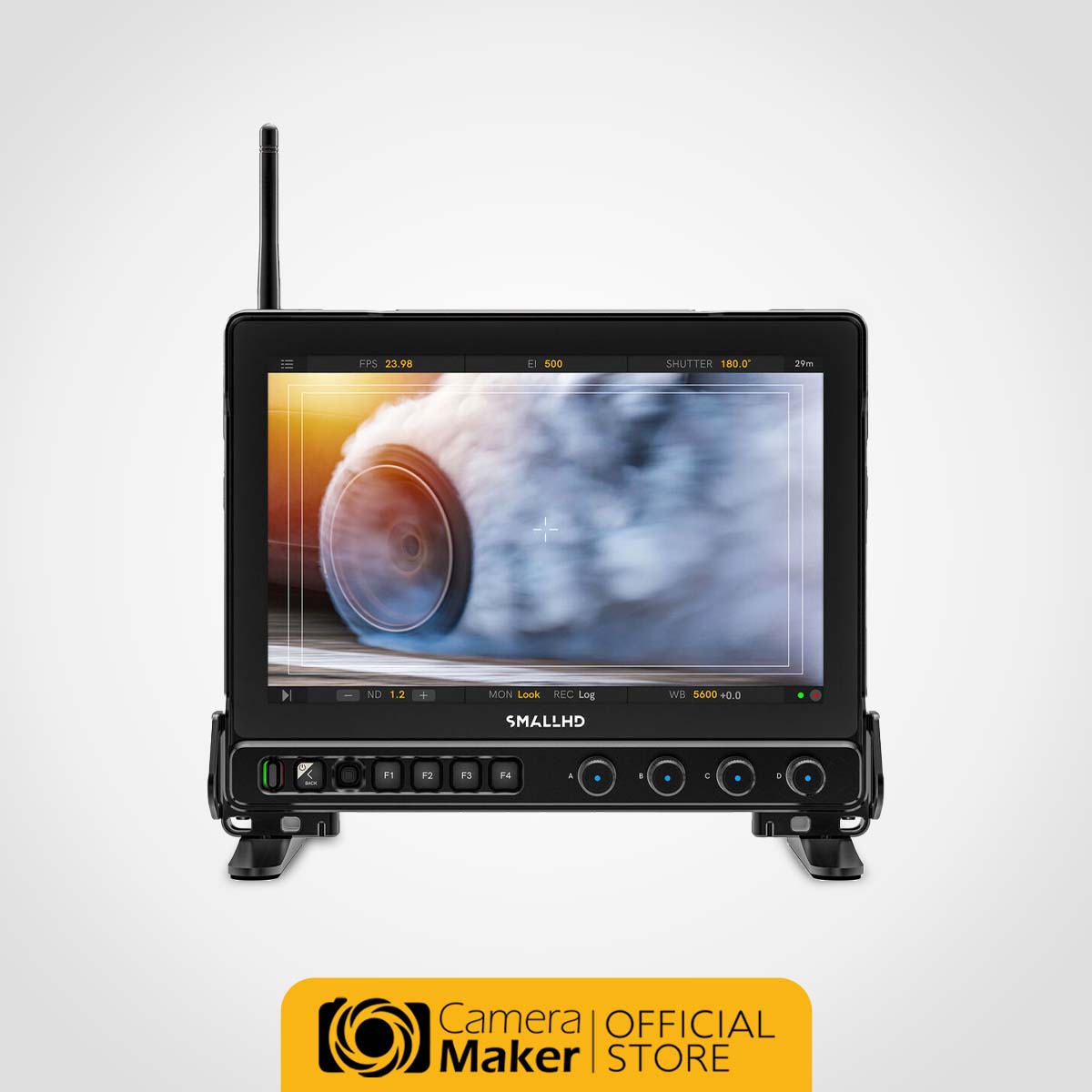

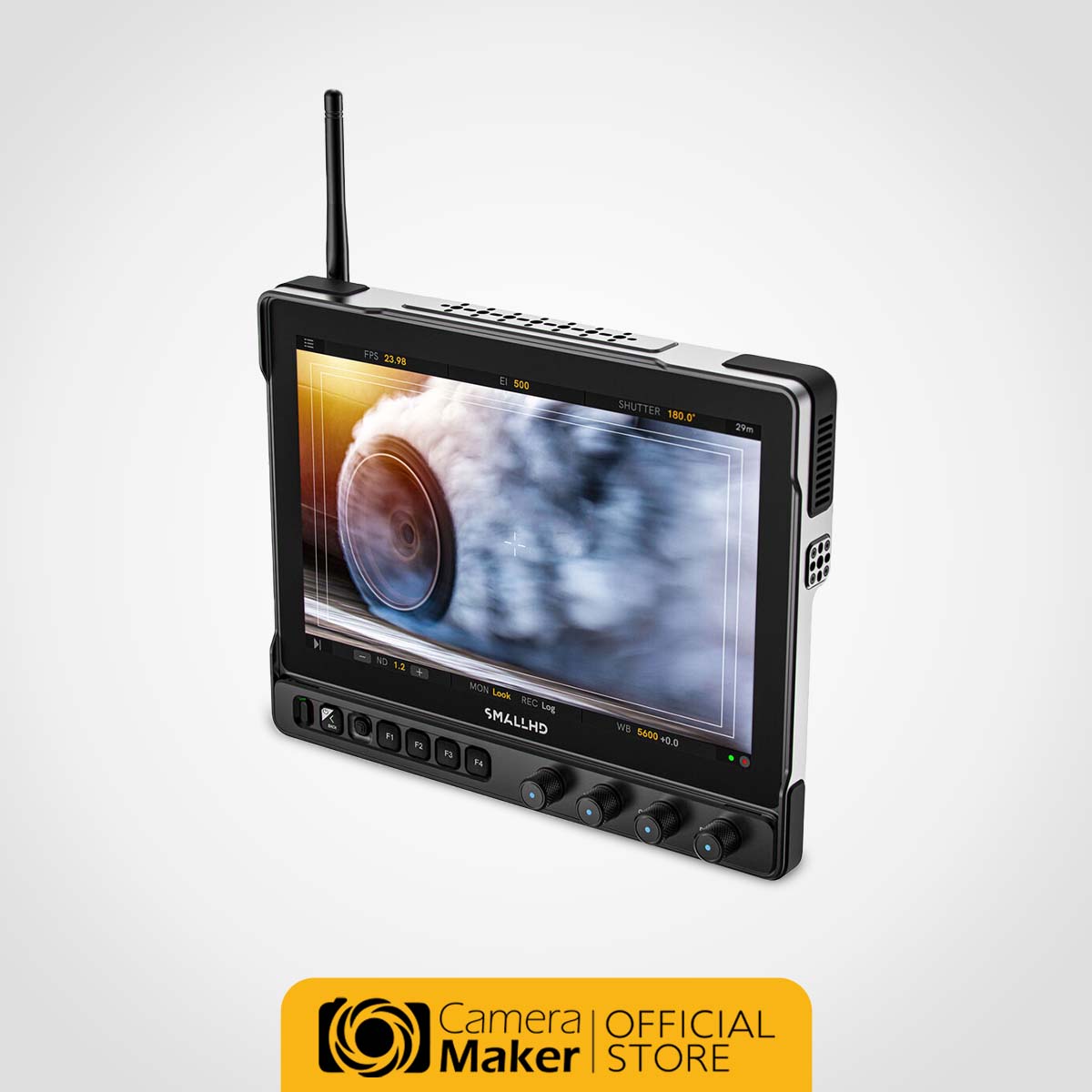

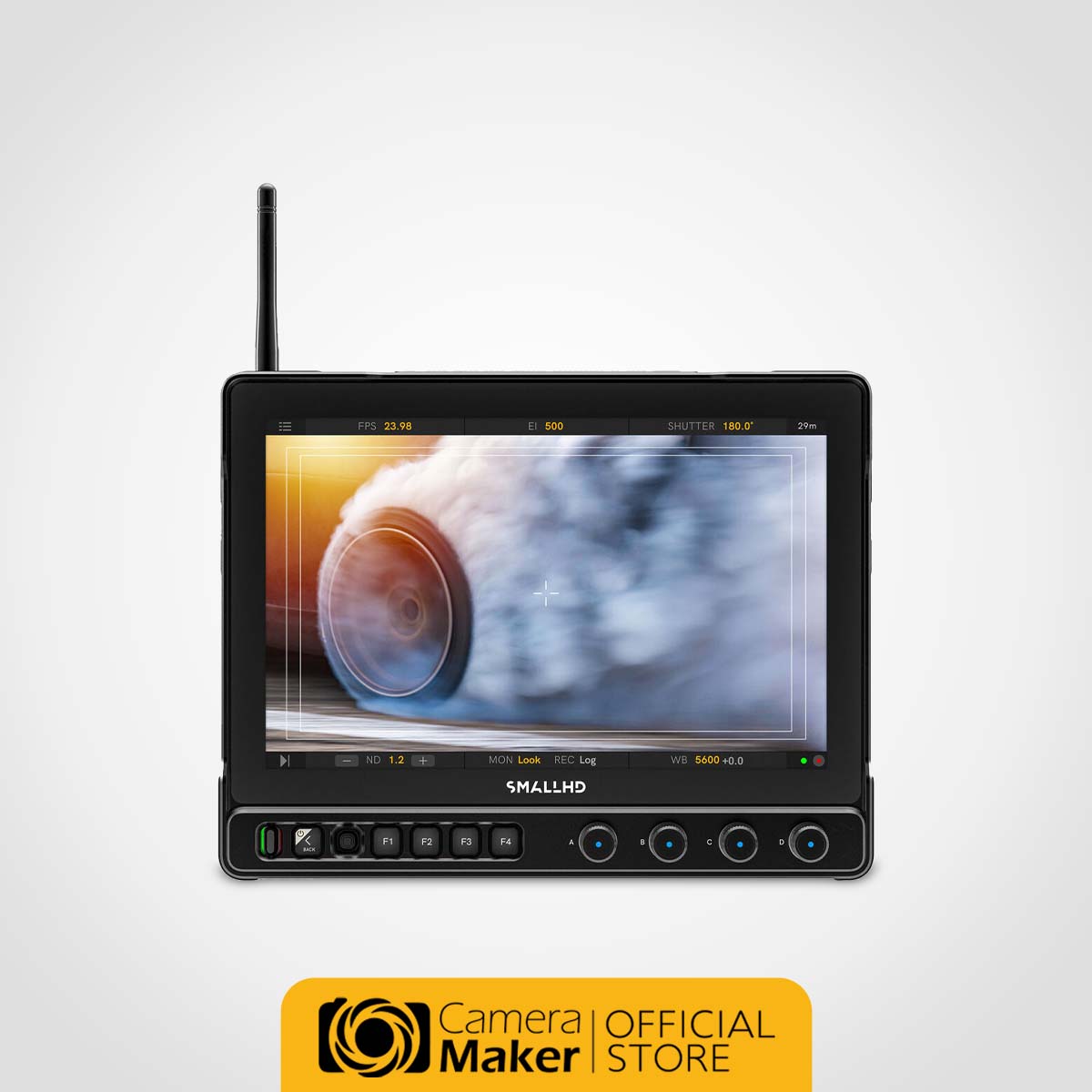

Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series with the largest touchscreen monitor we’ve ever made. Portable, powerful, and rugged, Ultra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, Directors, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.

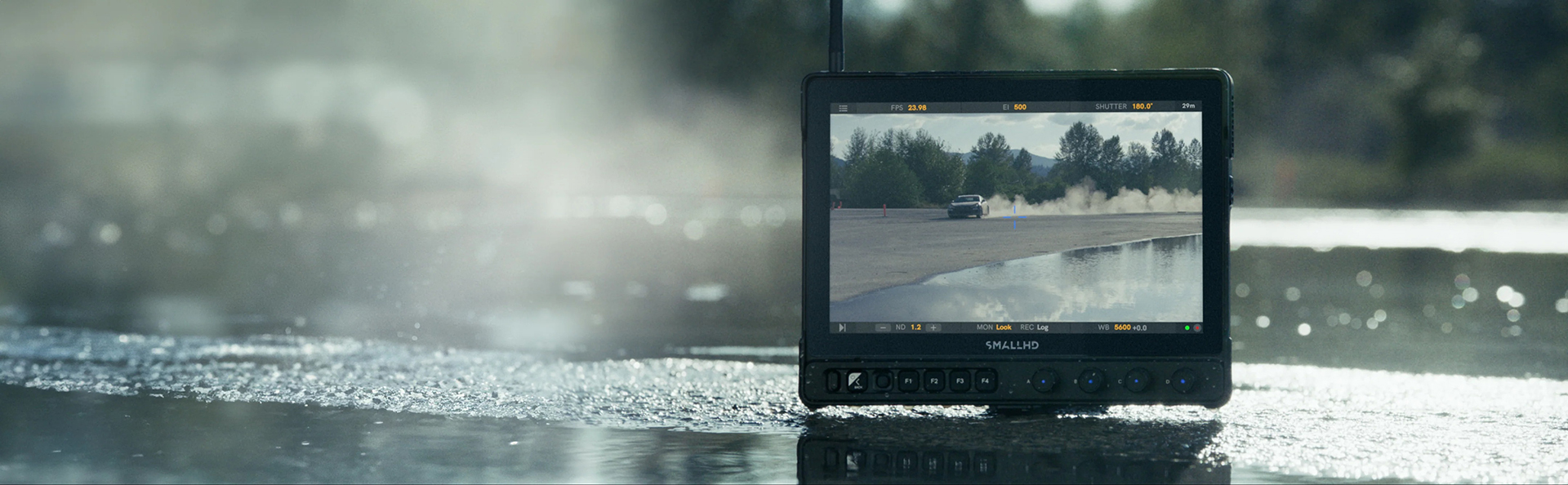

With a rating of IP54, the Ultra 10 is protected from dust and water spray from any direction. This monitor includes raised edges around the display glass and shock-absorbing, user-replaceable silicone bumpers.
Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.
Ultra 10 hits the sweet spot in power, performance and size between production monitors and our Ultra Bright Series, with 6G-SDI architecture, unprecedented weather and shock resistance, new multi-function knobs, and more.
The largest touchscreen monitor we’ve ever made. ltra 10 packs 2000nits of brightness, 6G-SDI architecture, intuitive multi-function rotary encoder knobs, and the full power of PageOS into a 10-inch display. Perfect for focus pullers, pursuit vehicles, director’s cages, DITs, multi-camera studios, and anyone who desires maximum flexibility from their monitor.

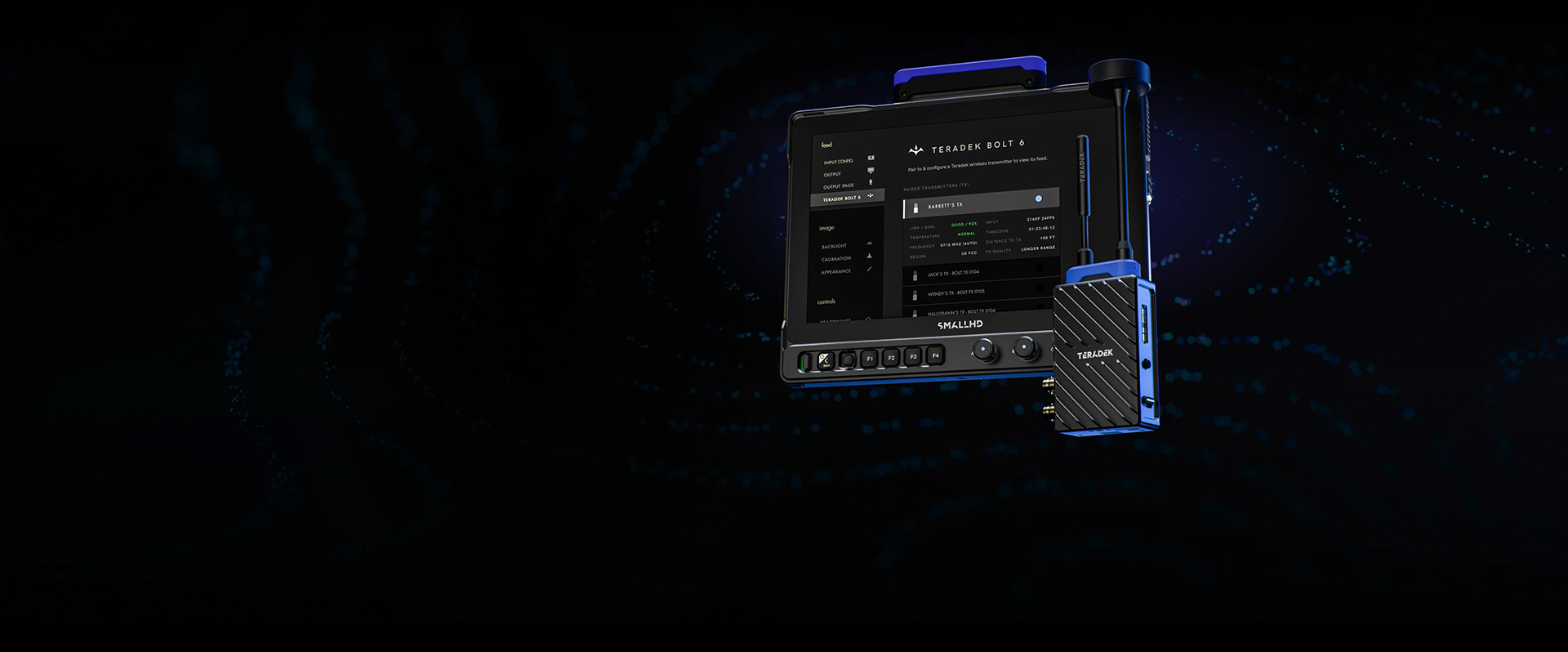

Teradek Bolt 6 arrives, fully contained, for the ultra-bright 10-inch monitor. Rugged and protected from the elements, this is a monitor that can withstand even the most destructive directors.
Built-in Bolt 6 units utilize the clear airwaves of the newly-open 6GHz spectrum, with receiver models that are compatible with any Teradek Bolt 6, and backwards-compatible with any Bolt 4K system in 5GHz mode.

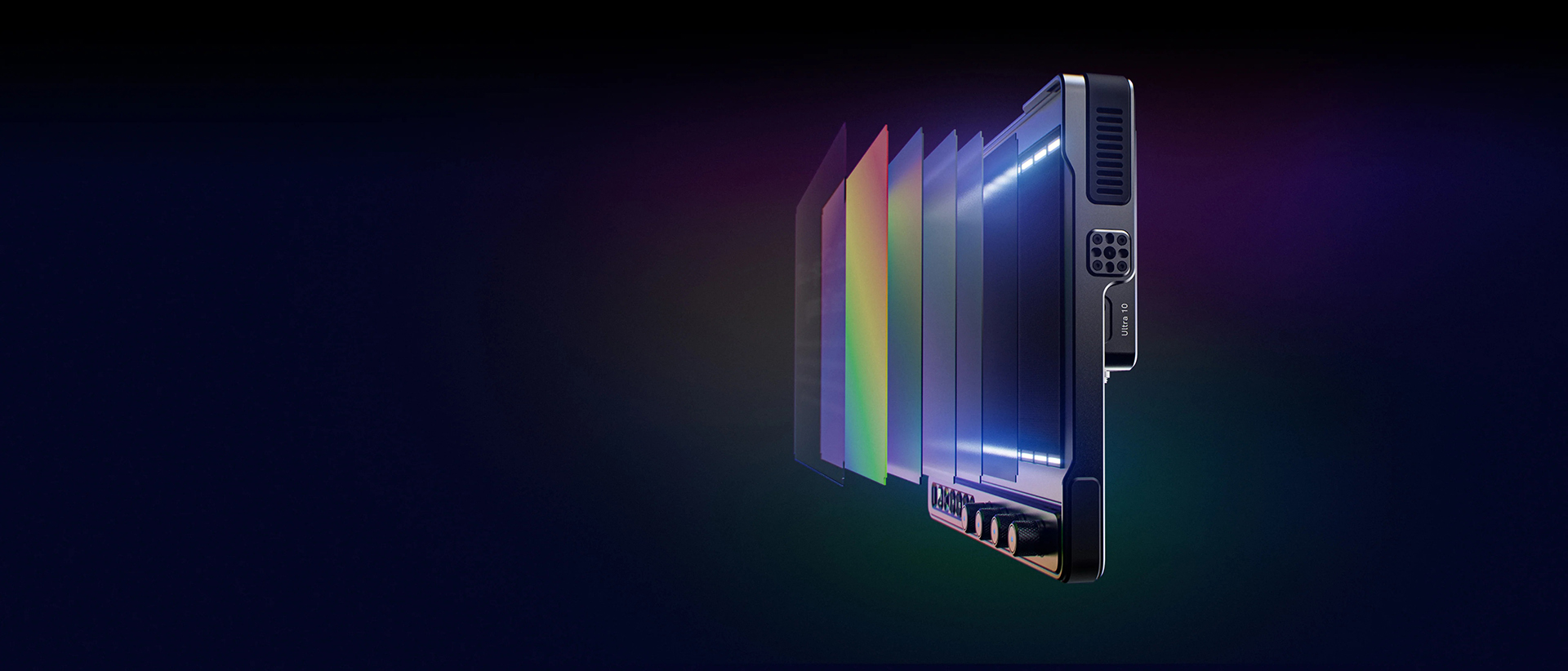

Ultra 10’s LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring incredible brightness, excellent image fidelity, ultra-pure color accuracy, and the highest tolerance for color uniformity.

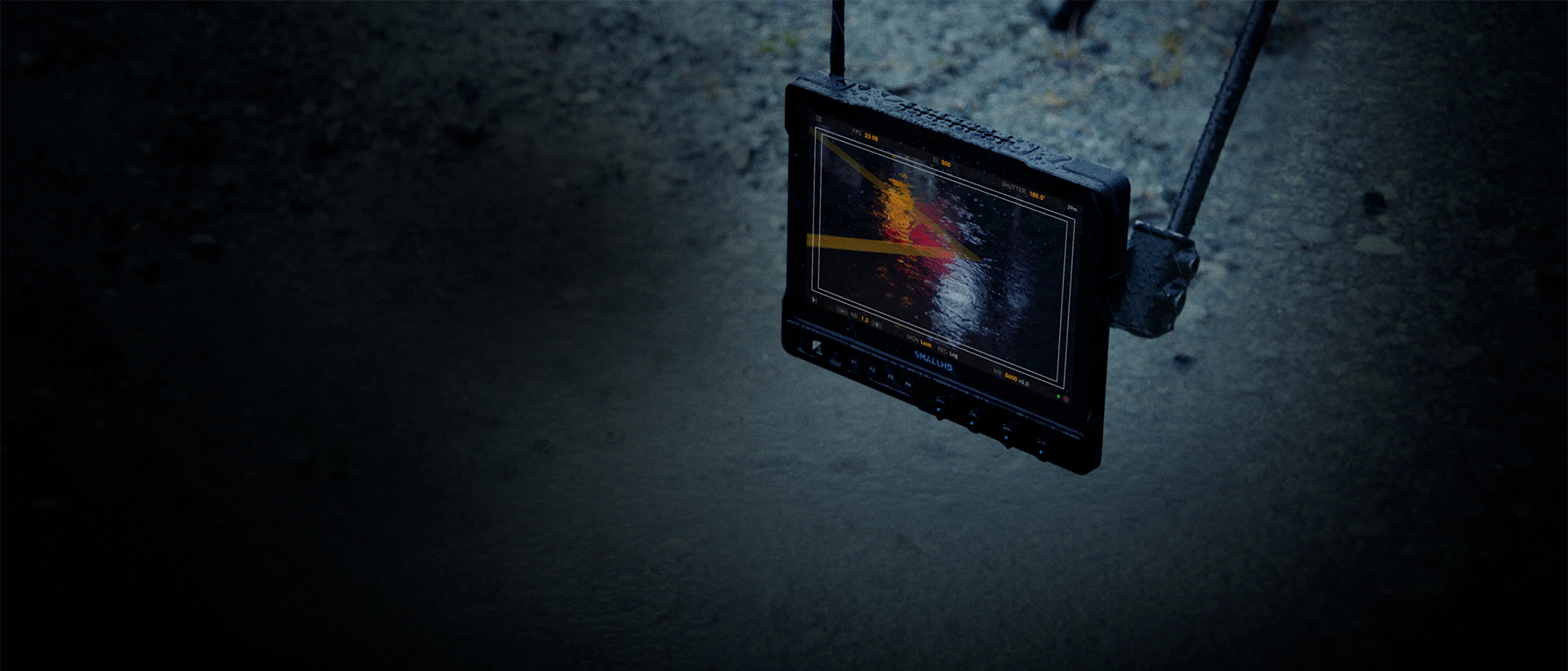

Built into a rugged, shock-resistant chassis designed to withstand production and environmental rigors alike, Ultra 10 is designated with an IP54 rating, defined as protected against harmful dust and water spray from all directions.

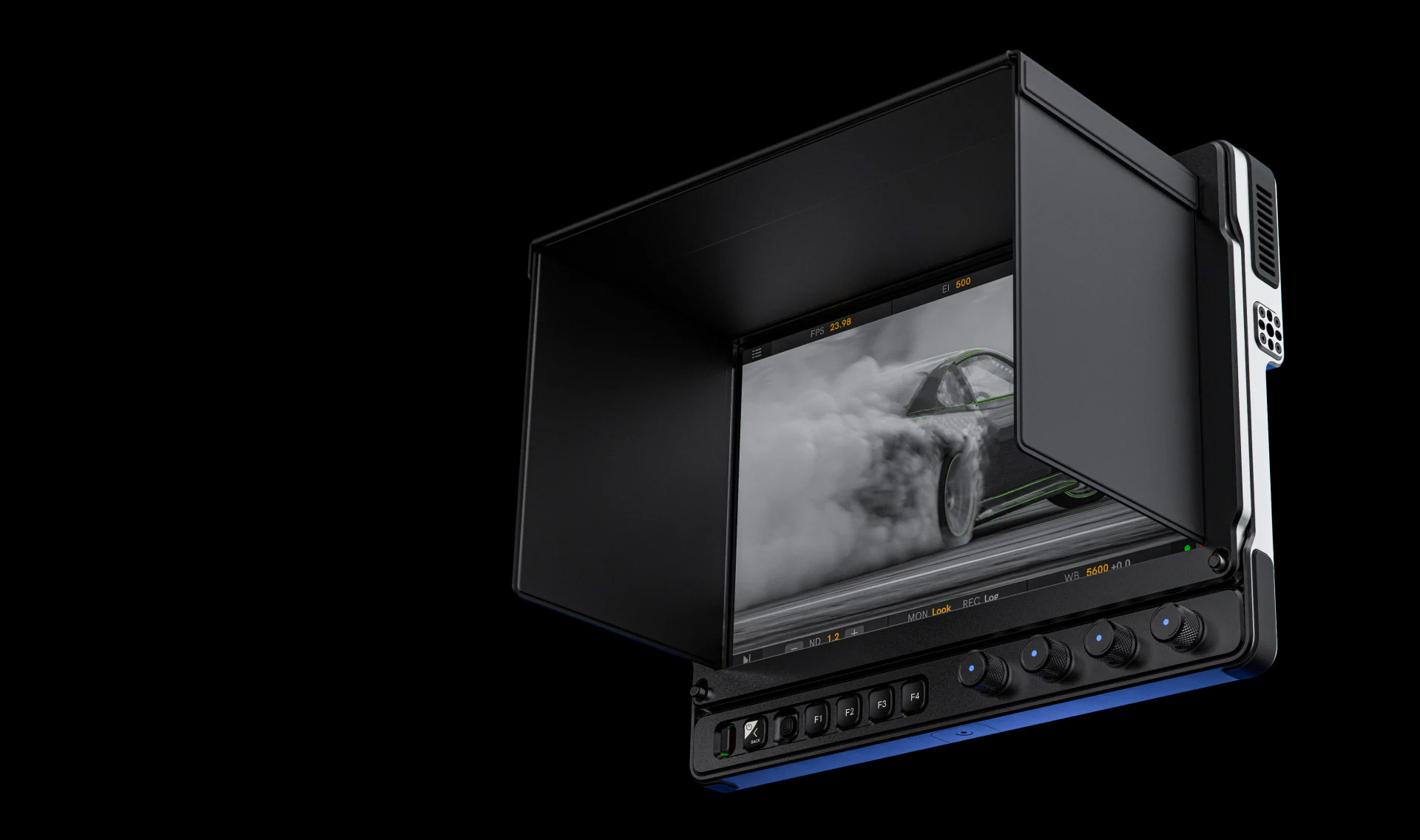

The Ultra 10 Sunhood connects to the monitor in seconds with a powerful array of integrated magnets. It requires no tools for installation or removal and provides total panel protection when closed.
PageOS is the first and only monitoring solution of its kind: an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over color, exposure, camera, LUTs, and so much more. Experience effortless navigation, exclusive industry-first integrated tools, and limitless creative possibilities.
| ENVIRONMENTAL | |
|---|---|
| IP Rating | IP54 |
| Item Weight (oz) | 52.8 |
| Dimensions (H x W x L) | 1.73 x 9.92 x 10.89 (in) |
| Compliance | FCC, IC, CE, RoHS |
| Operating Temperature | 30F to 100F |
| Storage Temperature | 0F to 120F |

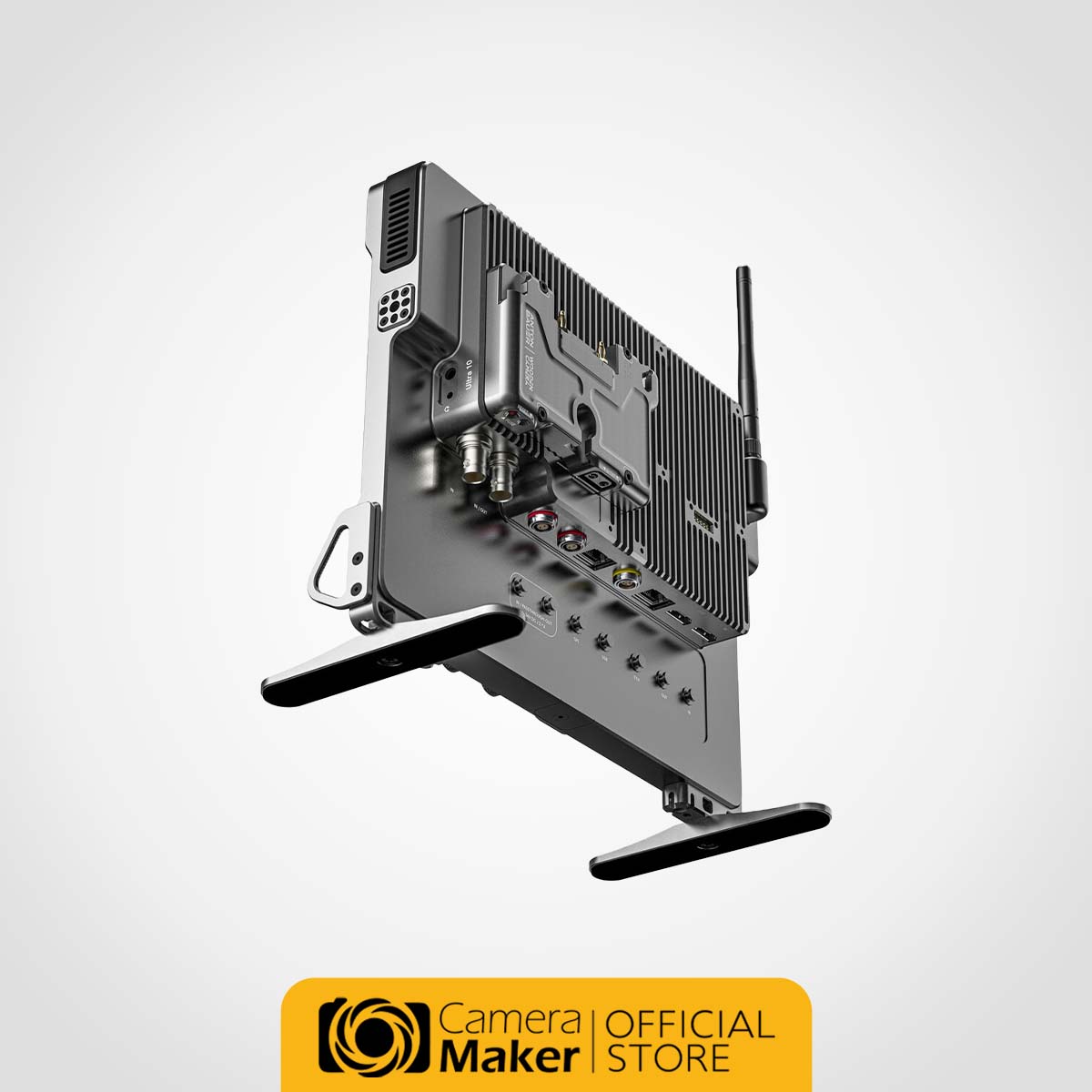

| Mount Points | Four 1/4-20 Mount Points (Left, Right, Bottom, and Back) |
| Construction | Anodized aluminum chassis |
| DISPLAY | |
| Panel Type / Size | IPS LCD / 10.1″ |
| Resolution | 1920×1200 |
| Contrast | 1000:1 |
| Color Depth | 10-bit Processing (8-bit panel) |
| Backlight / Refresh Rate | LED Edgelit / Synchronizes with input from 48Hz to 60Hz |
| Color Gamut | 100% rec709 |
| INPUT SIGNAL | |
| 6G-SDI Input Types | YCC 4:2:2 @ 10 bits: DCI-4Kp30, DCI-4Kp29.97, DCI-4Kp25, DCI-4Kp24, DCI-4Kp23.98, 2160p30, 2160p29.97, 2160p24, 2160p23.98 YCC 4:4:4, YCC+A 4:4:4:4, RGB, RGB+A @ 10 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 YCC 4:4:4, YCC+A 4:2:2:4, RGB @ 12 bits: DCI-2Kp60, DCI-2Kp59.94, DCI-2Kp50, DCI-2Kp48, DCI-2Kp47.95, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.95 |
| 3G/HD/SD-SDI Input | 3G: 1080p60/59.94/50, 1080i120/119.88/102 HD: 1080p30/29.97/25/24/23.98, 1080psf, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.100 SD: 480i59.94, 576i52 |
| HDMI Input Types | YCC 4:2:2 @ 12 bits, 8/10/12/16 bit color in RGB & YCC 4:4:4: 3840×2160 30p, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i52 |
| OUTPUT SIGNAL | |
| SDI Output Types | 3G: 1080p60/59.94/50, 1080i120/119.88/102 HD: 1080p30/29.97/25/24/23.98, 1080psf, 1080i60/59.94/50, 720p60/59.94/50/30/29.97/25/24/23.100 SD: 480i59.94, 576i52 |
| HDMI Output Types | YCC 4:2:2 @ 12 bits, 8 bit color in RGB & YCC 4:4:4: 2160p30/29.97/25/24/23.98, 1080p120/119.88/100, 1080i120/119.88/100/60/59.94/50, 720p240/239.76/200, 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p240, 480p239.76, 480p120, 480p119.88, 480p60, 480p59.94, 576p200, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 576i200, 576i100, 576i51 |
| Audio Input/Output | HDMI & SDI Up to 8 channels – Monitor through Speakers in Front Bezel or Through Headphone Jack |
| DATA I/O & CONNECTIVITY | |
| Monitoring I/O | SDI: 1x BNC 12G input and 1x BNC 12G selectable input/output HDMI: 1 input and 1 output: HDMI Type-A (full size) Audio: 1x 3.5mm 3-pin Stereo Headphone Jack Ethernet: RJ45 and GPI USB: 1x USB 2.0 Micro-B receptacle |
| POWER | |
| Connector / Voltage | 2-Pin Locking Connector / DC in: 10V-34V, Battery terminals: 6.0V-16.8V |
| Consumption | 17.3 watts (at 2160p30, 100% bright, tools enabled) |
| Battery Types | V Mount, Gold Mount Micro Battery Plates |
| Power Supply | Recommend DC 12~15V at ~2.5 amp or greater |
| SOFTWARE | |
| Image Tools | Pixel Zoom (1.1-8.0x), Frame Guides, DSLR Scale, Custom Scale, Anamorphic De-Squeeze (0.75x – 2.5x), Image Rotate/Flip, Cross Conversion (HDMI ↔ SDI), Focus Assist, Peaking, False Color (Rainbow, Arri, Custom 10 nodes), Zebra, Waveform, Vectorscope, RGB Parade, Histogram, Image Capture |
| LUTs & Color Pipe | – 33pt User & Cal LUTs (active even if media removed) – Loadable as Looks or Systemwide – Unique Calibrations saved per Color Pipe |
| Multi-View | 2 camera feeds simultaneously |
