Pre Order
– Display 7-inch touchscreen, 1920×1200, 323 PPI
– Brightness 1000 nits
– Input SDI, HDMI, Micro USB
– Output SDI, HDMI, 1/8” Headphone Jack, Camera Control
– Power Input 2mm barrel connector (DC 10-34v)
– Battery Support Sony L-Series Dual Battery Bracket
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

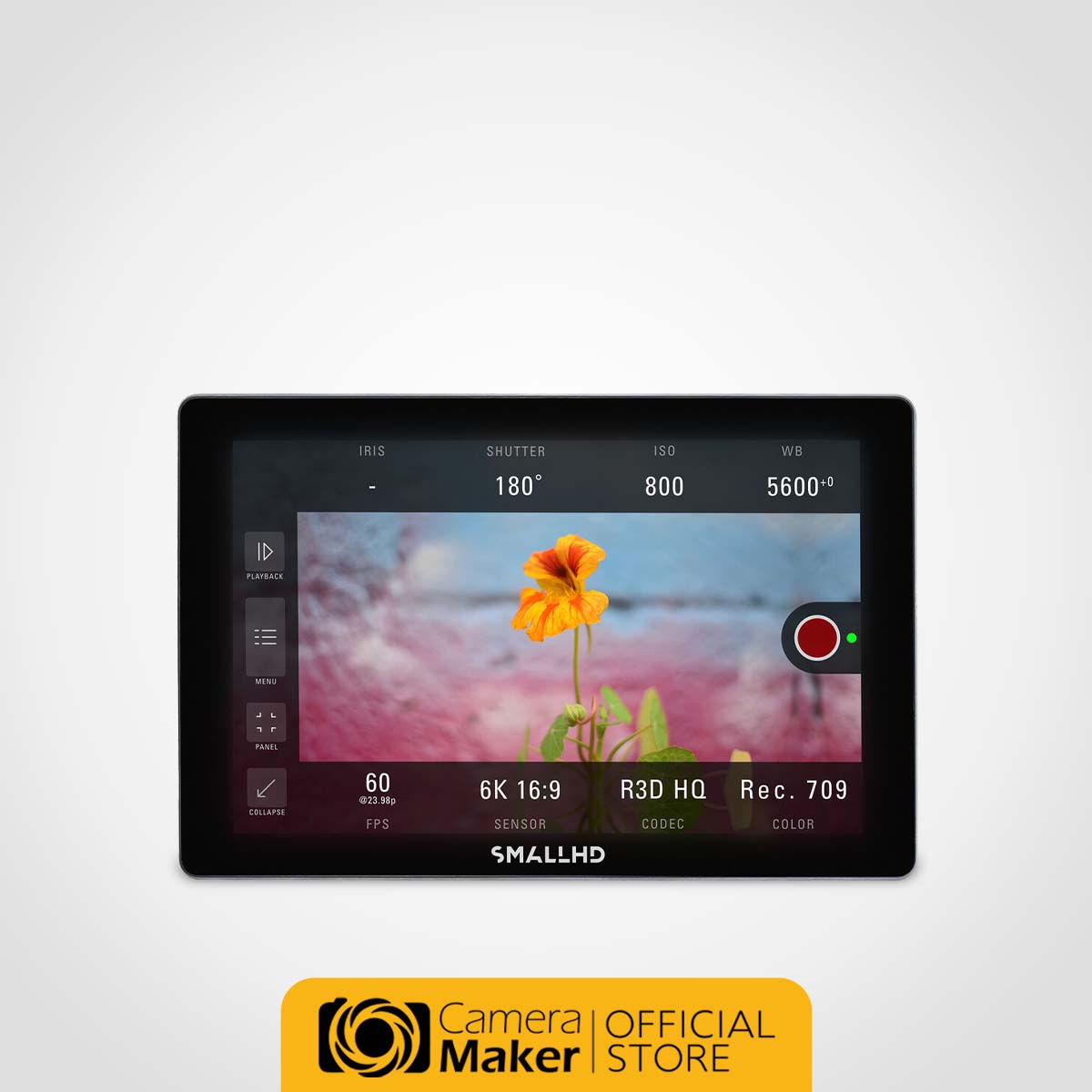

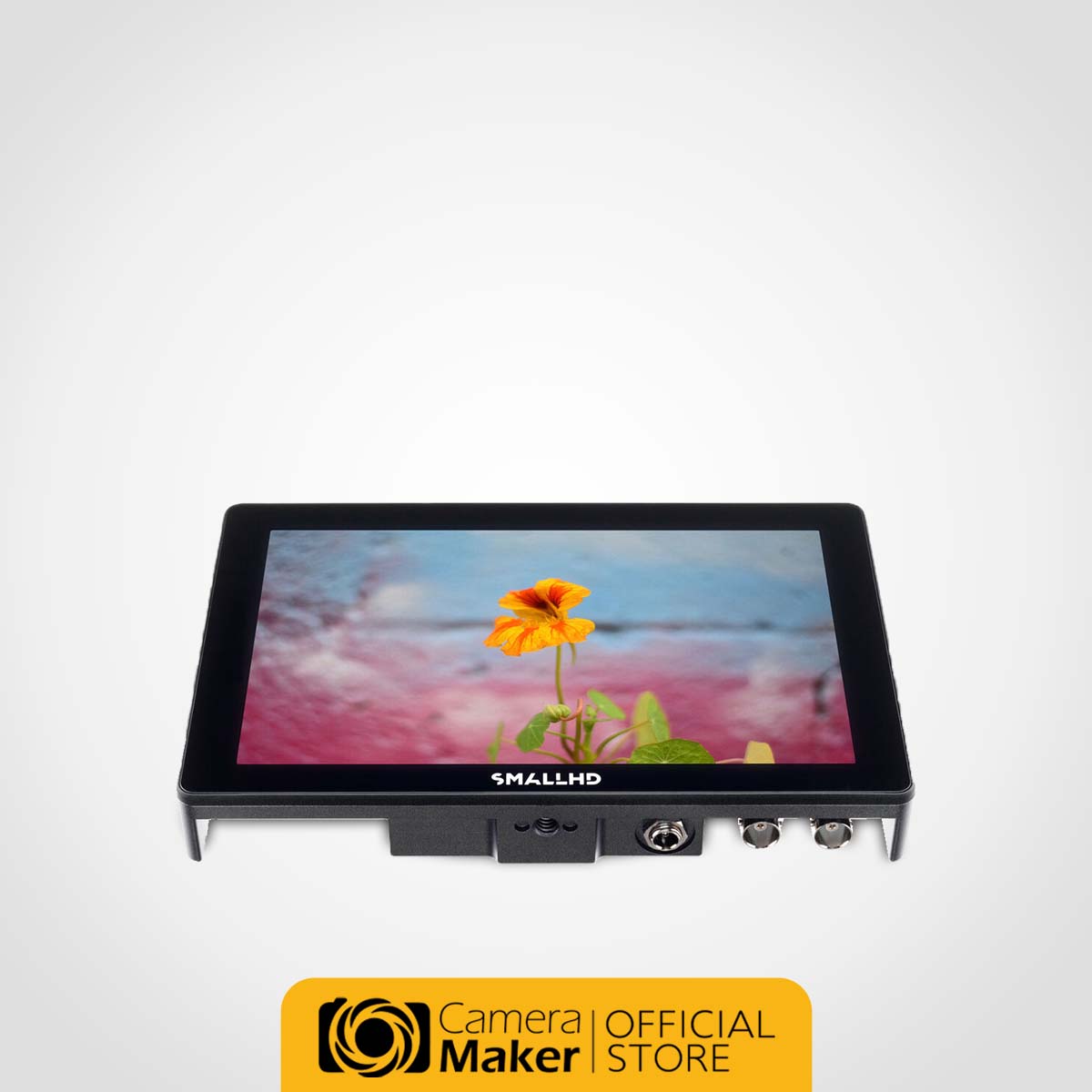

Indie 7 is the vivid, lightweight entry model into SmallHD’s professional 7-inch touchscreen monitor series. This hyper-responsive touchscreen monitor is powered by the user-customizable PageOS software, with a host of internal imaging assistance tools such as Focus Assist, Exposure Assist, and more. Housed in a lightweight, rugged, and thin aluminum chassis, the Indie 7 is designed for heavy production use.
Indie 7 provides a personalized viewing experience designed to improve your workflow. Backed by 1000 nits of brightness, the Indie 7 can be viewed in direct sunlight, allowing you to monitor your production regardless of environment or time of day.

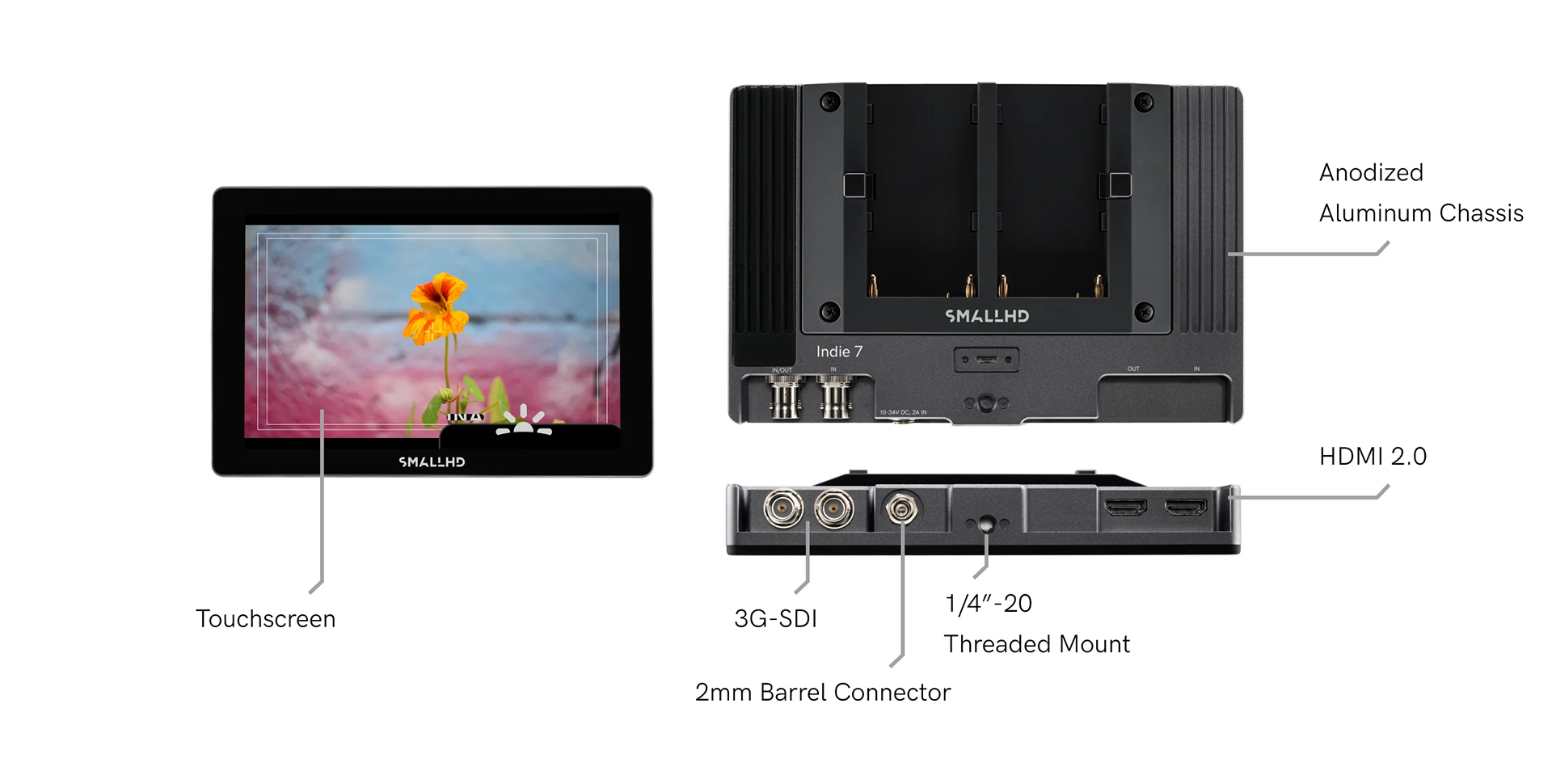

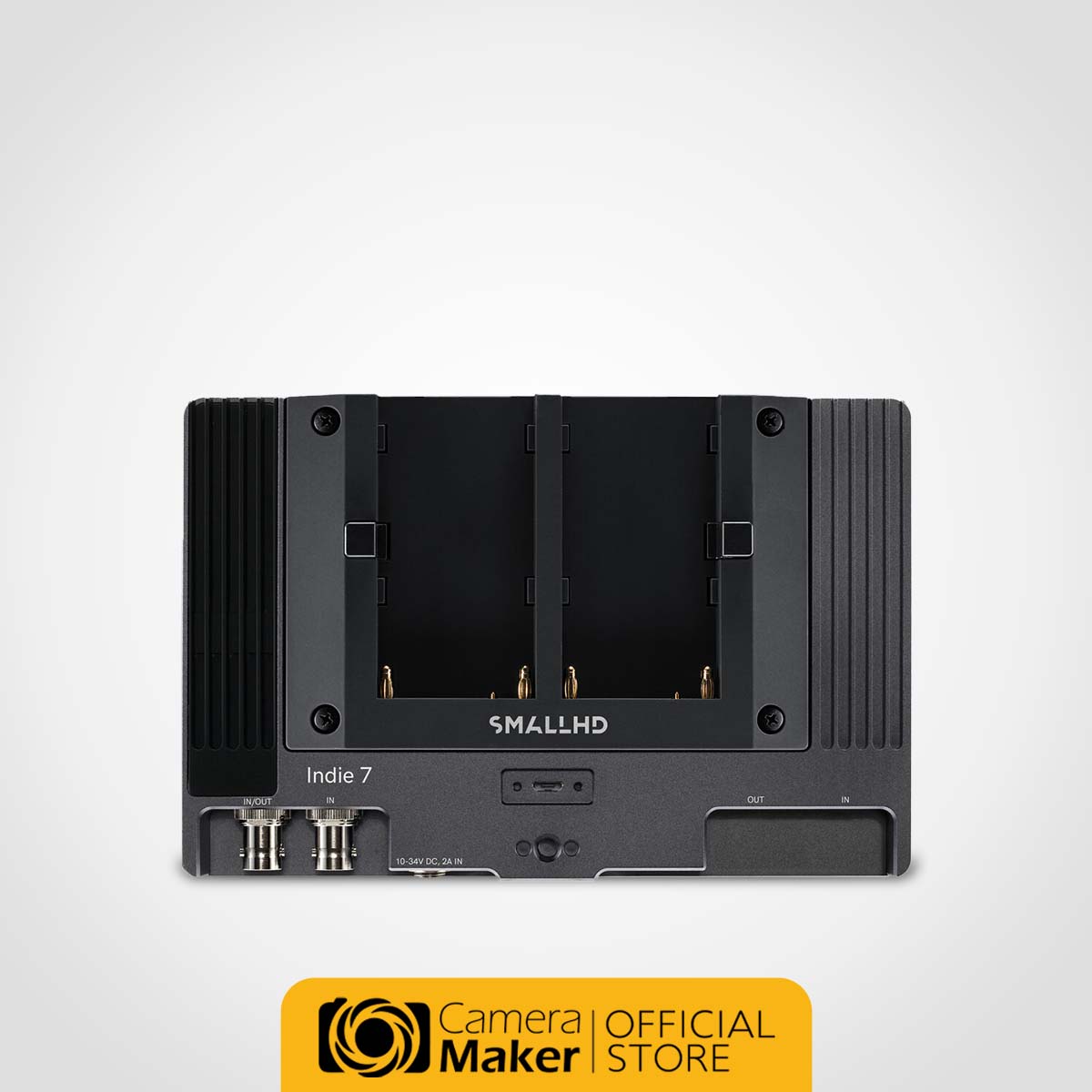

The Indie 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input, a 2mm barrel connector port, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.

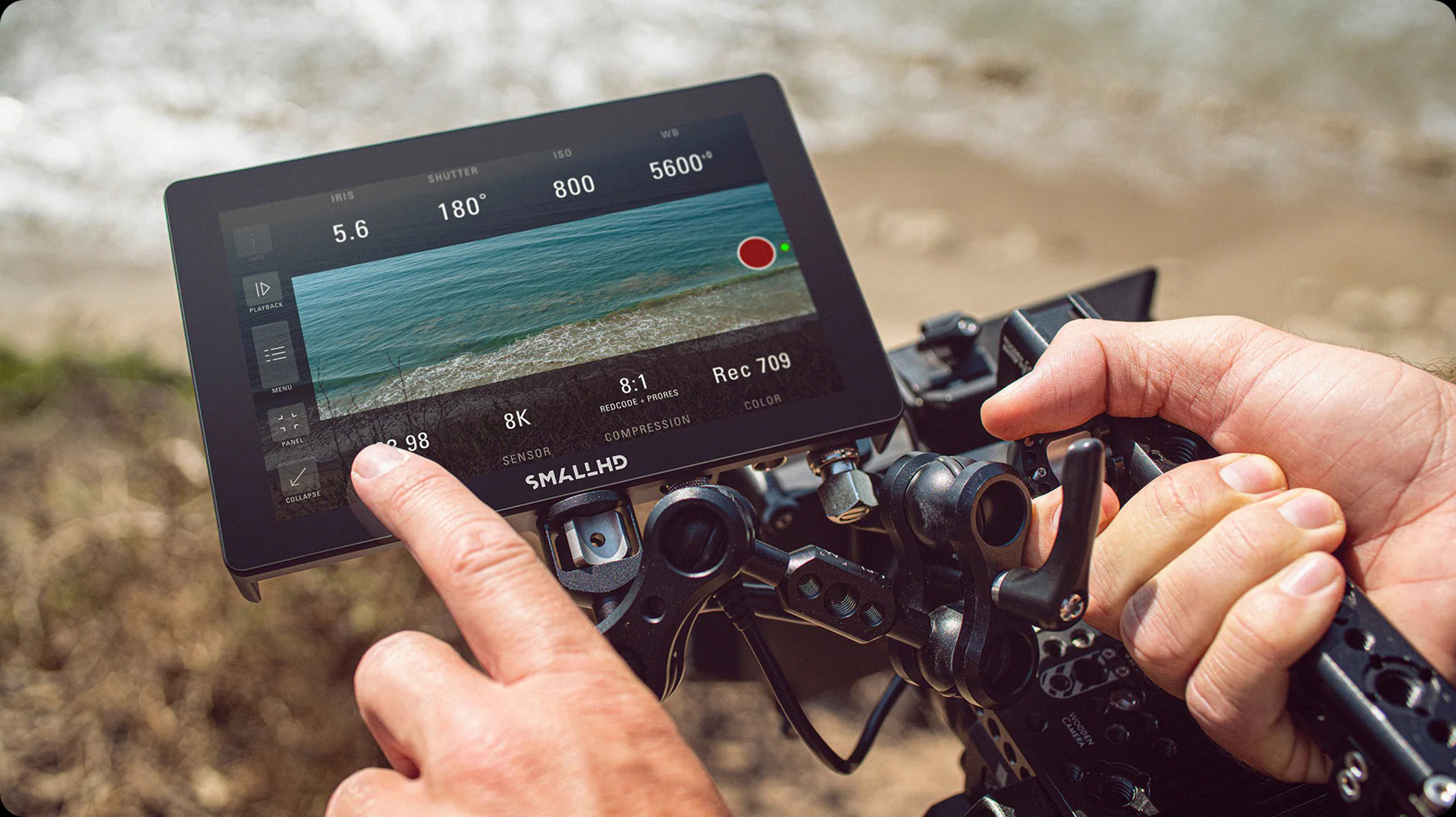

Indie 7 provides creative professionals with access to the smartest monitoring toolset in the industry. Built around a lightweight, anodized aluminum chassis. Indie 7 is designed specifically to withstand heavy run-n-gun production use.

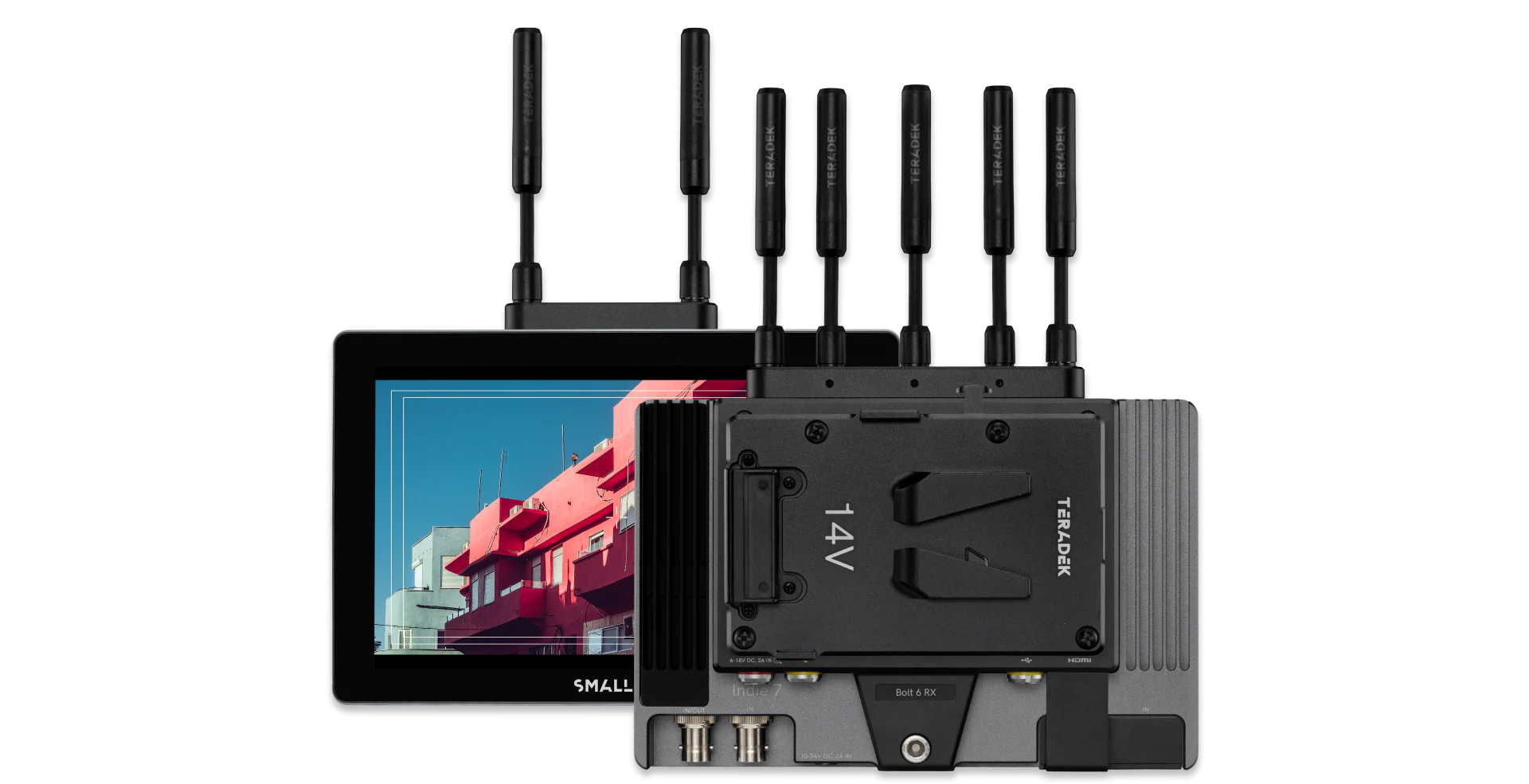

Receive pristine wireless video from any Bolt 6 or Bolt 4Ktransmitter at a distance of up to 750ft (228m) or 1500ft (457m). This hardware addition to Indie 7 attaches to the back of the monitor for integrated, cable-free workflows. Included with Gold or V-Mount power options.

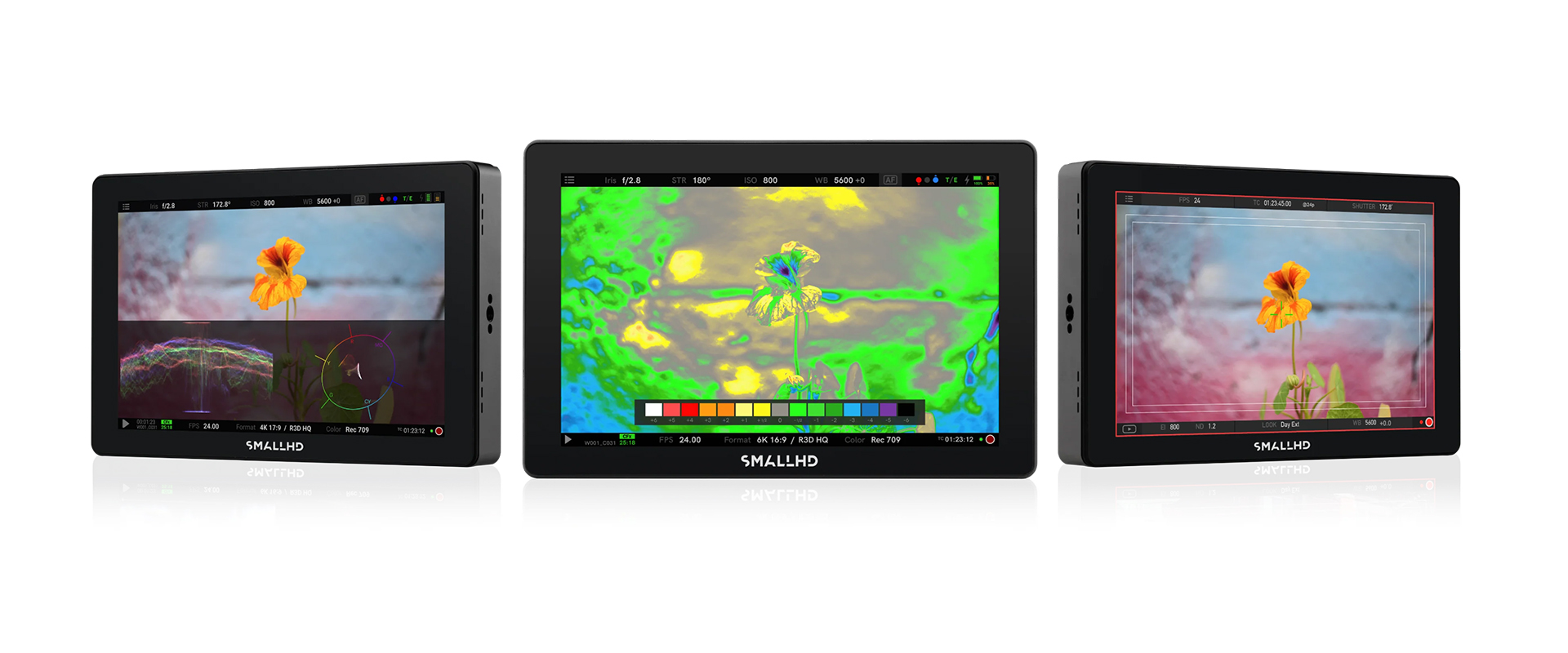

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays
| DISPLAY | |
|---|---|
| Panel Type | IPS LCD Touchscreen |
| Diagonal Size | 7.02 inches |
| Resolution | 1920 x 1200 |
| Max Brightness | 1000 Nits |
| Color Gamut | 100% Rec.709 |
| Color Depth | 10-bit Processing (8-bit panel) |
| SIGNAL INPUT / OUTPUT | |
| SDI | 1x 3G-SDI Input, 1x 3G-SDI Selectable In/Out |
| HDMI | 1x HDMI Input, 1x HDMI Output (Full Size) |
| HDMI Input Formats | Up to 4K (3840×2160) 30p |
| Audio | Front Bezel Speakers & 3.5mm Headphone Jack |
| Cross Conversion | Yes: HDMI to SDI & SDI to HDMI |
| POWER & BATTERY | |
| Input Voltage | 10V – 34V DC |
| Power Connector | Barrel (2.0mm ID, 5.5mm OD) |
| Power Consumption | 17.3 watts (at 2160p30, 100% brightness) |
| Battery Compatibility | L-Series (Dual Bracket Included), V-Mount/Gold Mount (Optional) |
| SOFTWARE & CONTROL | |
| Operating System | PageOS |
| Monitoring Tools | Waveform, Vectorscope, Histogram, RGB Parade, False Color, Zebra, Focus Assist, Peaking |
| Camera Control | RED® KOMODO™, RED DSMC2® (Software License Sold Separately) |
| PHYSICAL SPECS | |
| Construction | Anodized Aluminum Chassis |
| Dimensions (W x H x D) | 7.09 x 4.67 x 1.32 inches |
| Item Weight | 18.9 oz (Approx. 535 g) |
| Mount Points | 4x 1/4-20 Points (Left, Right, Bottom, and Back) |
| Compliance | FCC, IC, CE, RoHS |
