– Display 5-inch, 1280×720, 294 PPI
– Brightness 800 nits
– Input Full-size SDI, Micro USB
– Output ⅛” Headphone Jack, 7.2v Power
– Power Sony L Series Battery (Not Included)
– Dimensions 0.75 x 3.3 x 5.25″ / 1.91 x 8.4 x 13.34 cm
– Weight 187.11g (Item Only without battery)
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

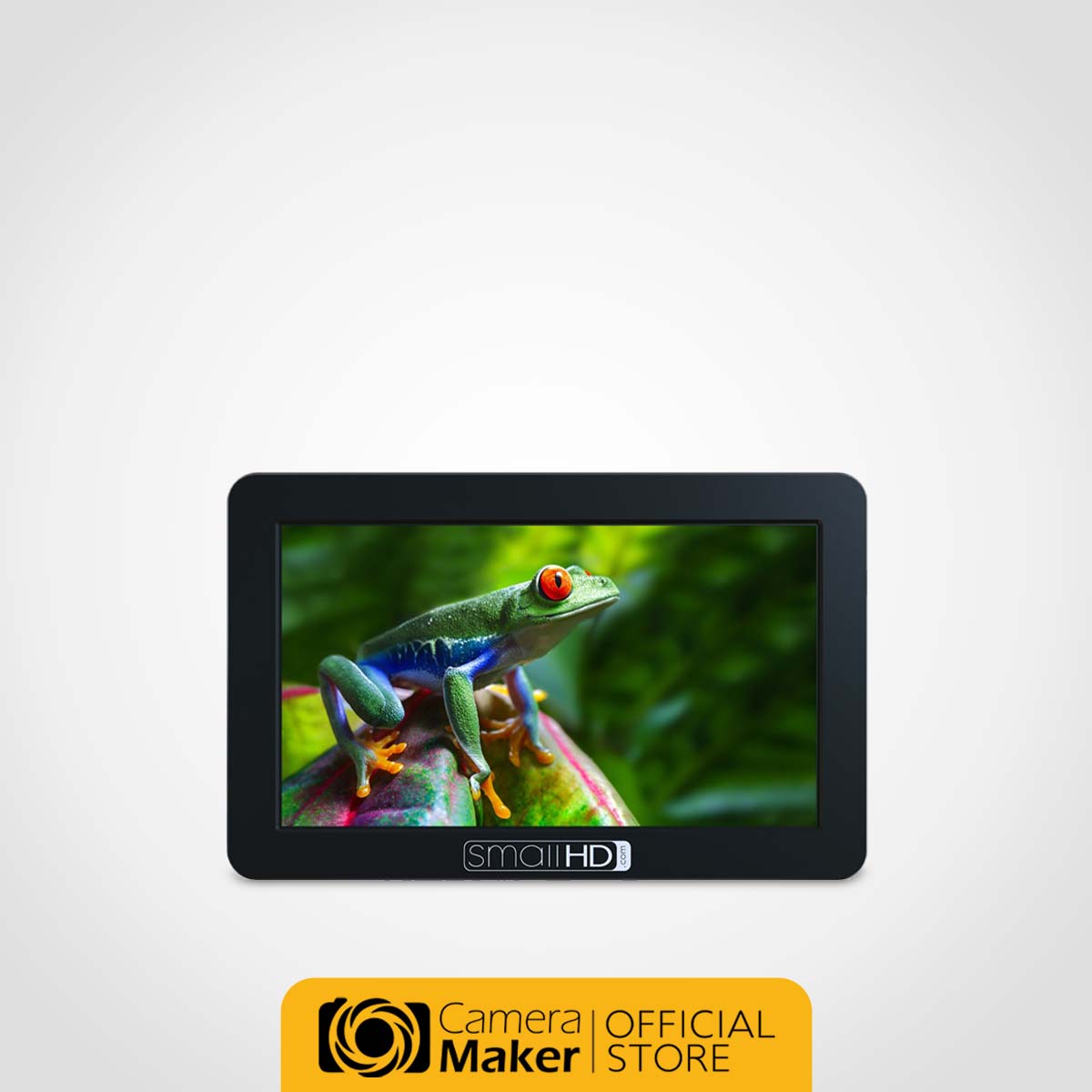

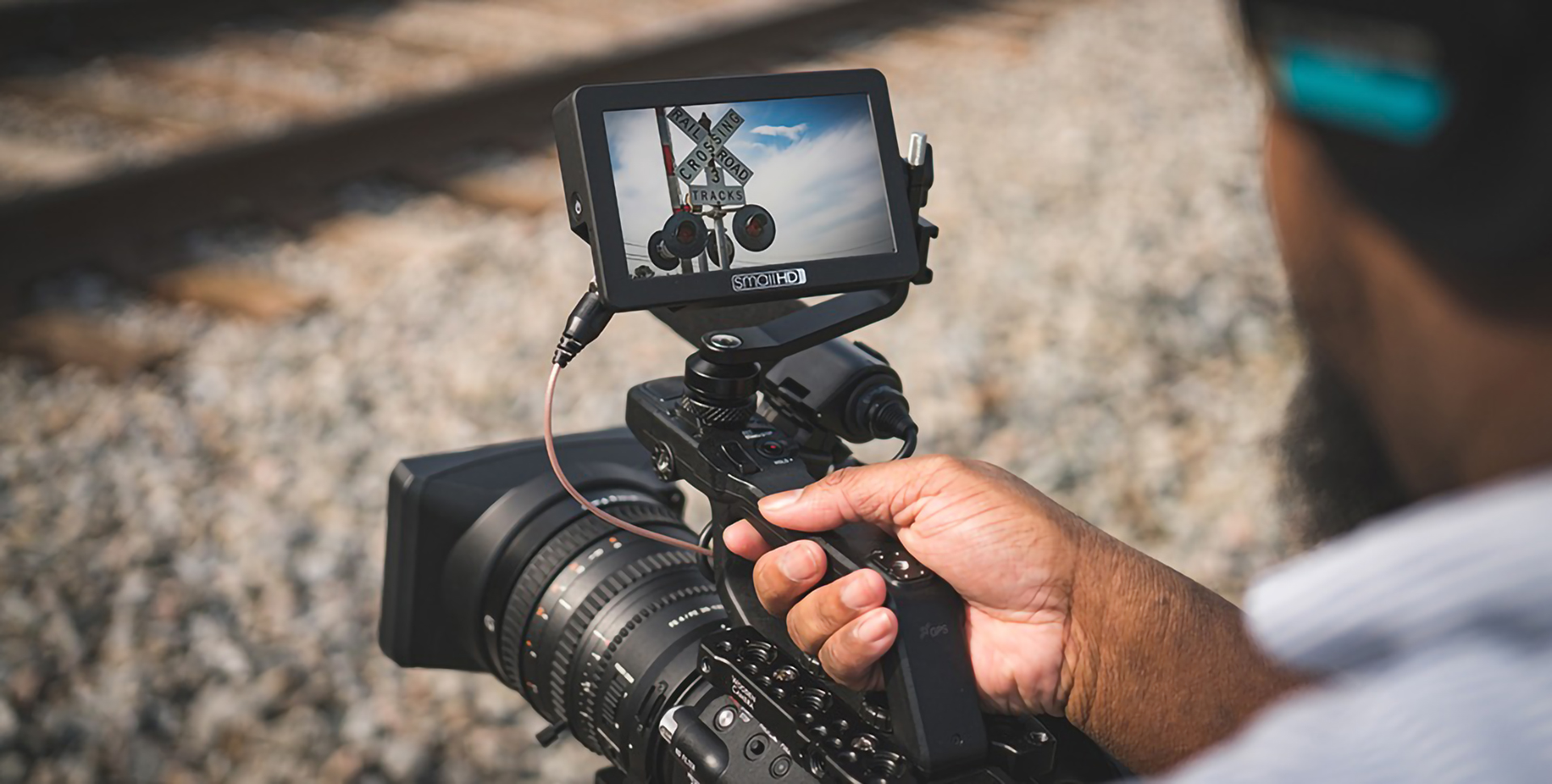

The SmallHD FOCUS SDI monitor provides a daylight viewable display in a convenient form factor. Easily attach the FOCUS to your camera or rig using the included SmallHD Tilt Arm: a lightweight, camera-top mounting solution.

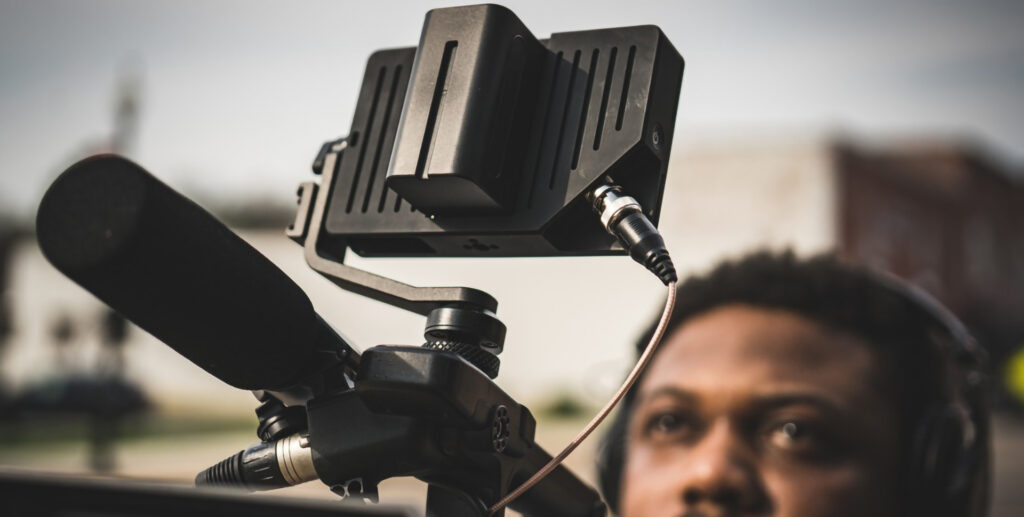

The FOCUS SDI monitor has an integrated, center-aligned, Sony L Series battery plate. Users will enjoy hours of monitor use (at full brightness) without having to swap batteries.
Beyond the impressive hardware features of the FOCUS, is SmallHD OS3: a professional software toolset with an easy to manage, touchscreen interface. High resolution Scopes, Waveform, False Color, Focus Peaking, and real-time 3D LUTs are just some of the tools you can easily customize and access quickly.
| Panel Type | IPS LCD Touchscreen |
| Size Diagonal | 5 |
| Resolution | 1280×720 |
| Pixel Density (PPI) | 294 |
| Aspect Ratio | 16:9 |
| Active Area | 5 |
| Brightness | 800 nits |
| Contrast | |
| Color Gamut | 70% NTSC |
| Color Depth | 10-bit processing |
| Viewing Angle | 160 Degrees |
| Backlight Type | White LED |
| Adjustable Backlight | Yes |
| Temperature Adaptive Color | No |
| 3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
| HD-SDI | RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50 |
| SD-SDI | YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
| HDMI | Not Supported |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | SDI |
| 3G-SDI | Not Supported |
| HD-SDI | Not Supported |
| SD-SDI | Not Supported |
| HDMI | Not Supported |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | Stereo Out (headphones) |
| SDI | 1x Full-Size-SDI Input |
| HDMI | |
| Component | |
| Composite | |
| Audio | ⅛” Stereo mini-jack |
| Power In | 1x Sony L-Style Battery slot |
| Power Out | Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor. |
| USB | 1x Micro-USB for future use |
| Primary Control Interface | Capacitive Touchscreen |
| Record/Capture | Capture Tool |
| Storage | SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades |
| USB | |
| Wireless | Compatible with SmallHD BTR1 Wireless Remote |
| Wifi |
| Connector Type | 1x Sony L-Style Battery slot, 1x barrel connector for powering camera |
| Voltage | 6.0 – 8.4V |
| Power Consumption | 5.04W |
| Battery Plate Included | |
| Recommended Power Supply | Battery Only Device |
| Overload Protection | Yes |
| Smart Battery Compliant | |
| Battery Types | |
| Battery Chemistry | Li-ion |
| Output Voltage (VDC) | Mirrors Input Voltage from battery |
| Battery Capacity (mAh) | 2000mAh – 6300mAh |
| Battery Charging Time (hours) | Monitor does not support the charging of batteries |
| Compliance | CE, FCC, IC |
| Operating Temperature | 32F to 158F |
| Storage Temperature | |
| Screen Protection | Ships with UltraClear Screen Protector |
| Height | 3.34” (8.48cm) |
| Width | 5.24” (13.31cm) |
| Depth/Length | .98” (2.49cm) |
| Weight (Item Only without battery) | 6.6oz (187.11g) |
| Weight (Packaged) | 4.17oz (118.22g) |
| Mount Points | (3) ¼-20 thread points (top, bottom, & right side) |
| Pixel Zoom (type) | 2x & 4x with smooth pan via pinch zoom gesture |
| Frame Guides | Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Underscan Only |
| Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x |
| Image Rotate(Manual/Automatic) | Automatic or Manual Control |
| Image Flip (Manual/Automatic) | Automatic or Manual Control |
| Cross Conversion | |
| Focus Assist (Colors) | User Adjustable Color Style and Intensity |
| Peaking | User Adjustable Intensity |
| False Color | Spectrum, Arri Style and Fully User Customizable |
| Zebra | Dual – User Configurable |
| Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| PIP | No |
| RGB Parade | Fully User Customizable |
| Histogram | Luma & RGB Style |
| Horizon Indicator | No |
| Image Capture | With Dedicated Button and Image Gallery |
| Dailies Recording/Playback | |
| Master Recording | |
| Wifi Streaming | |
| Custom LUTS | Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Creation | No |
| LUT Downstream | Applied on Output Preview Page |
| LUT Import | Via SD Card or USB Storage Device |
| Onion Skinning | |
| Image Overlay | Opacity Slider and Blink Setting |
| Blue Only | No |
| Firmware | |
| Audio Meters | Up to 8 channel |
