Pre Order
– Display 7-inch, 1920X1200
– Brightness 1800 nits
– HDMI 1x HDMI In, 1x HDMI Out
– SDI 1x 3G SDI In, 1x 3G SDI In/Out
– Audio ⅛” Headphone Jack
– Power: 2-pin Locking Power Input (10V-34V, 2A DC), Sony/V-Mount Battery Brackets
*(Software License Sold Separately)*
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

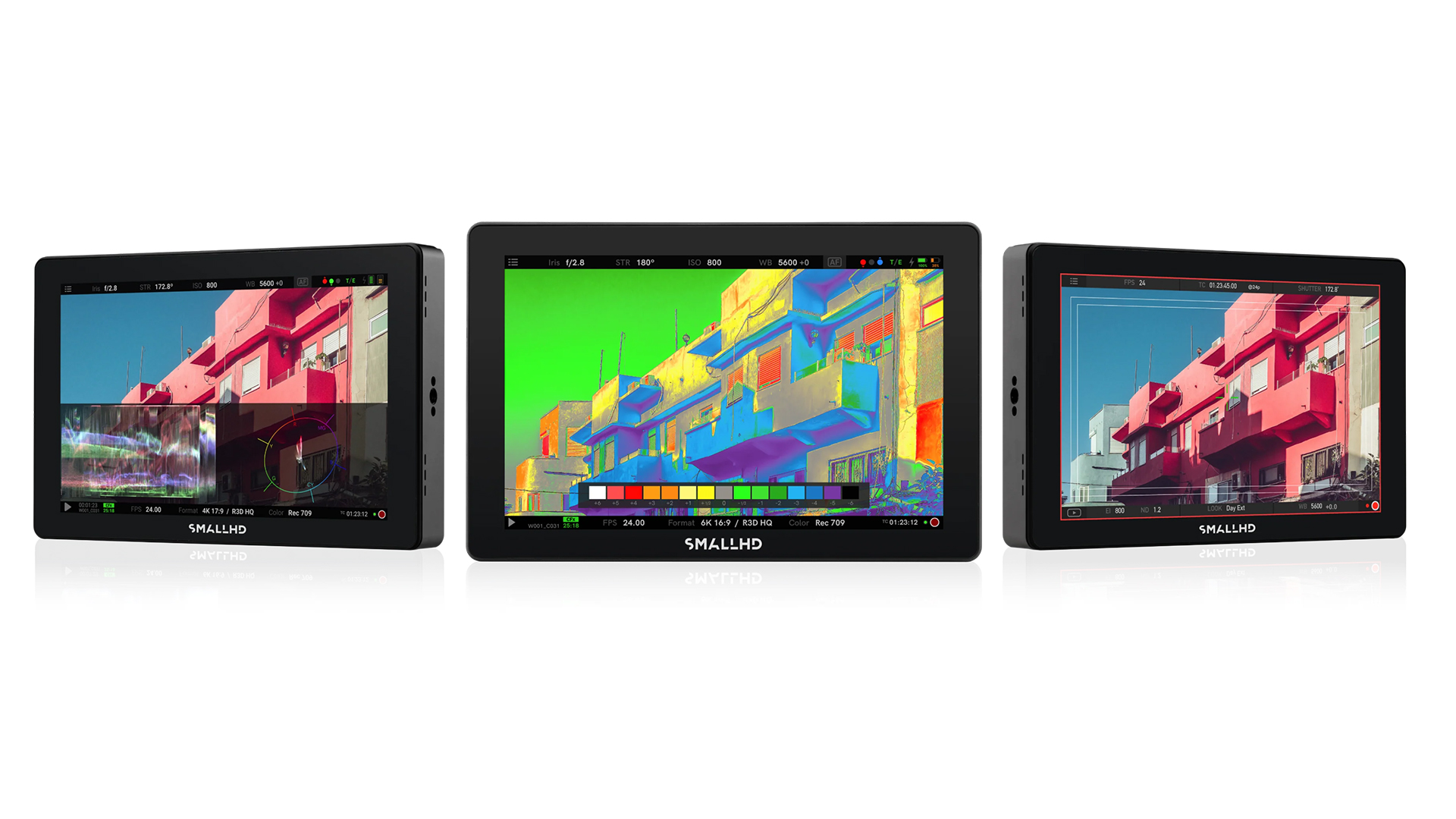

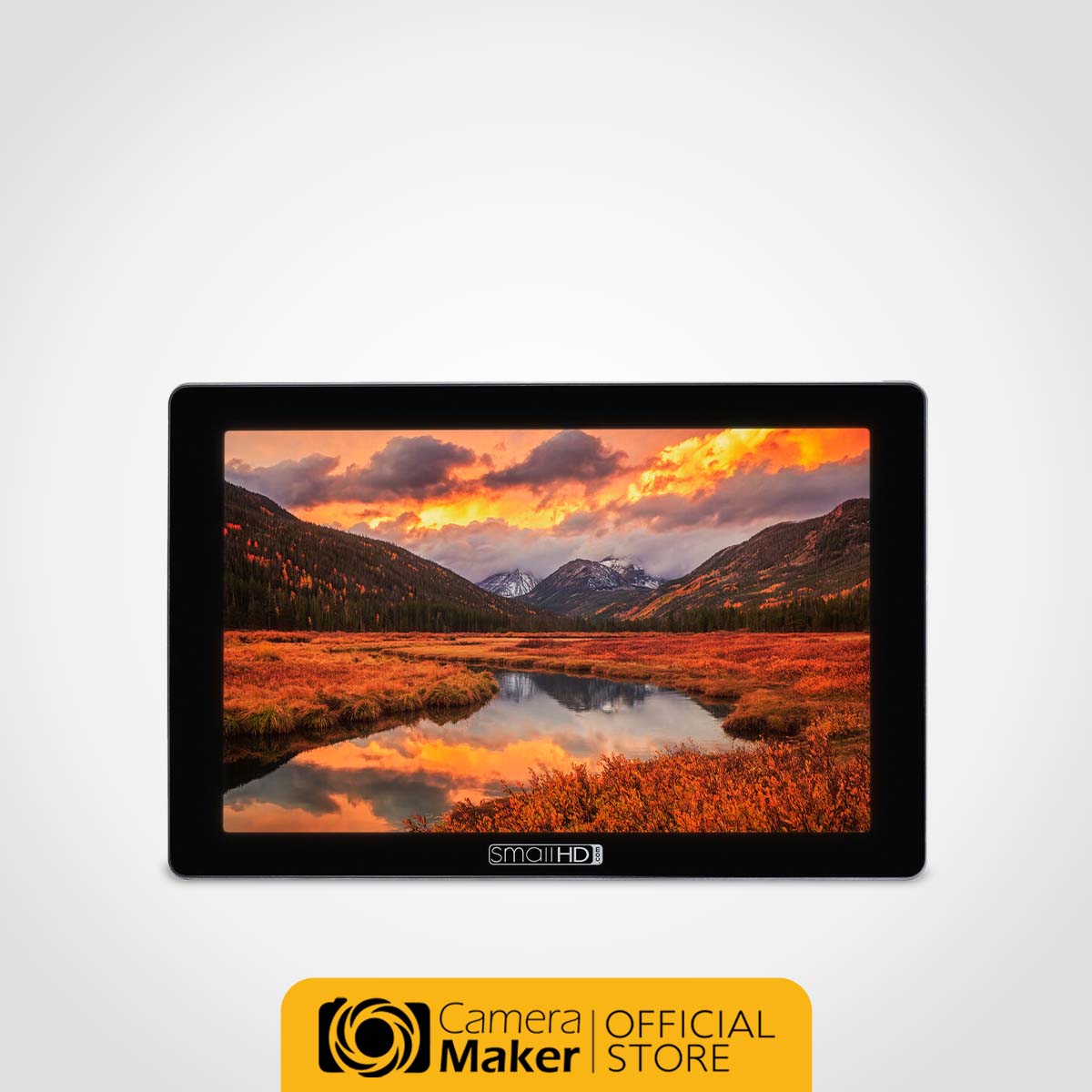

Cine 7 is a 7” on-camera HD monitor, offering a color accurate wide-gamut display and cinema camera control. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS.

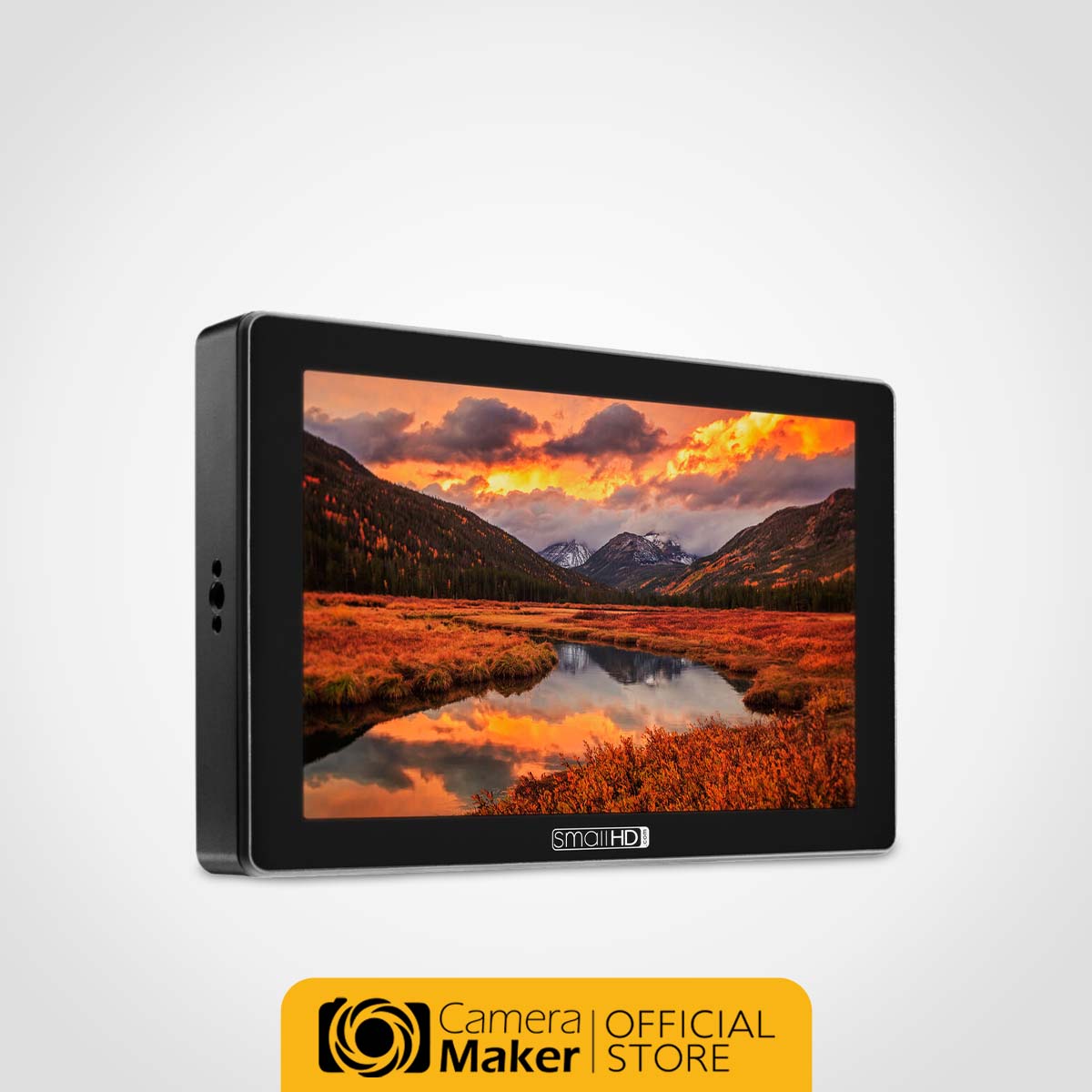

The Full HD 7-inch IPS LCD display with 1920×1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

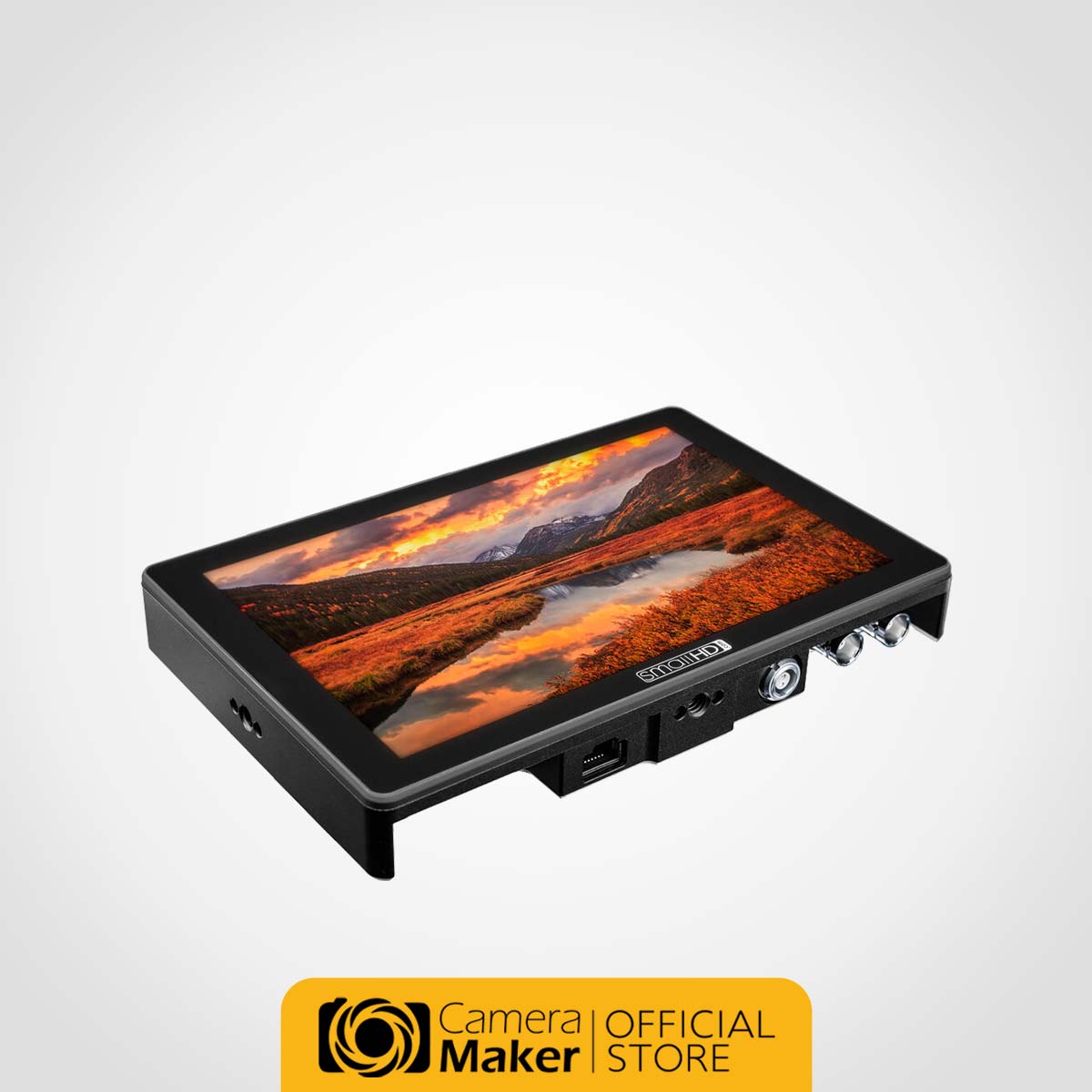

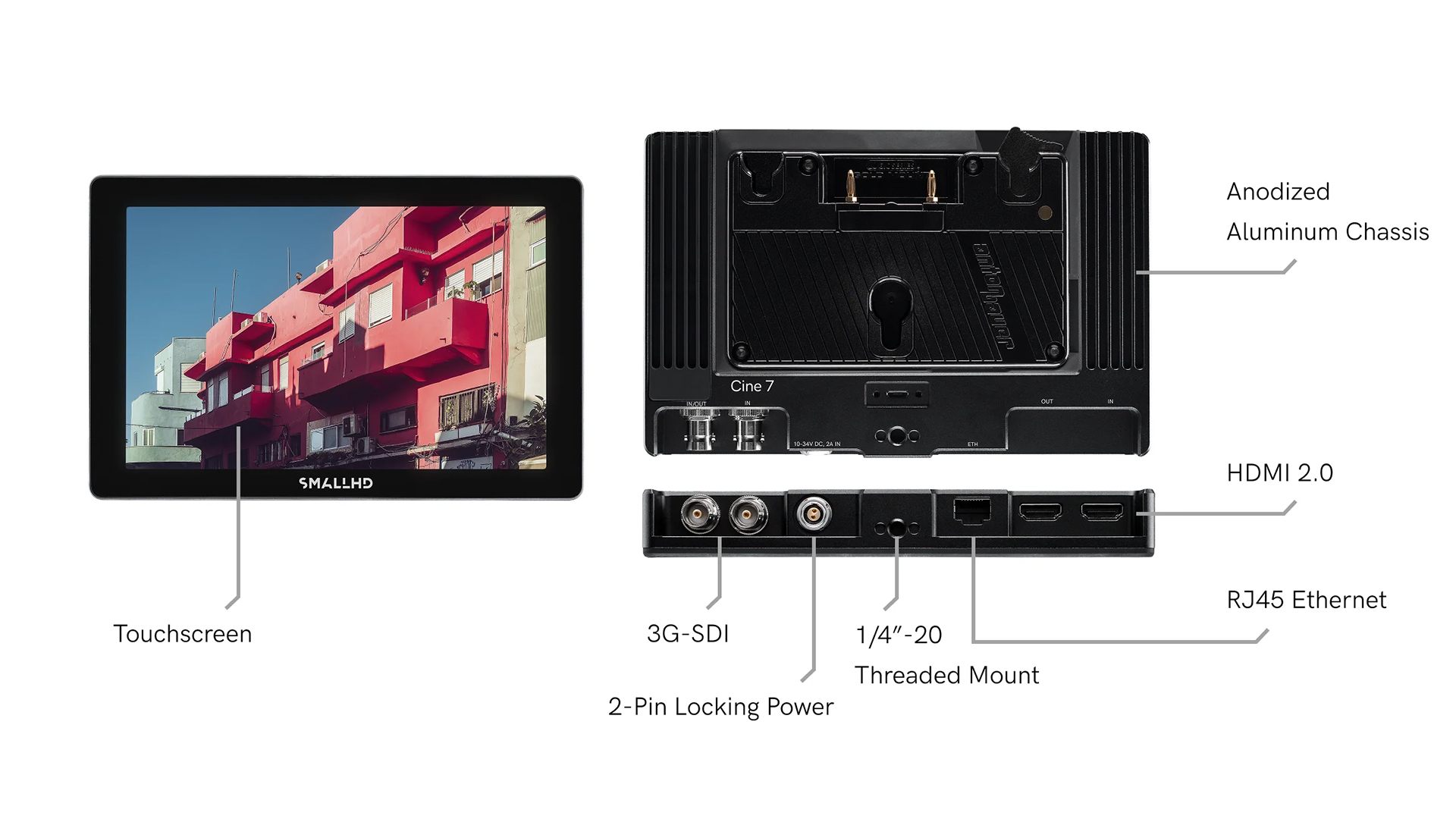

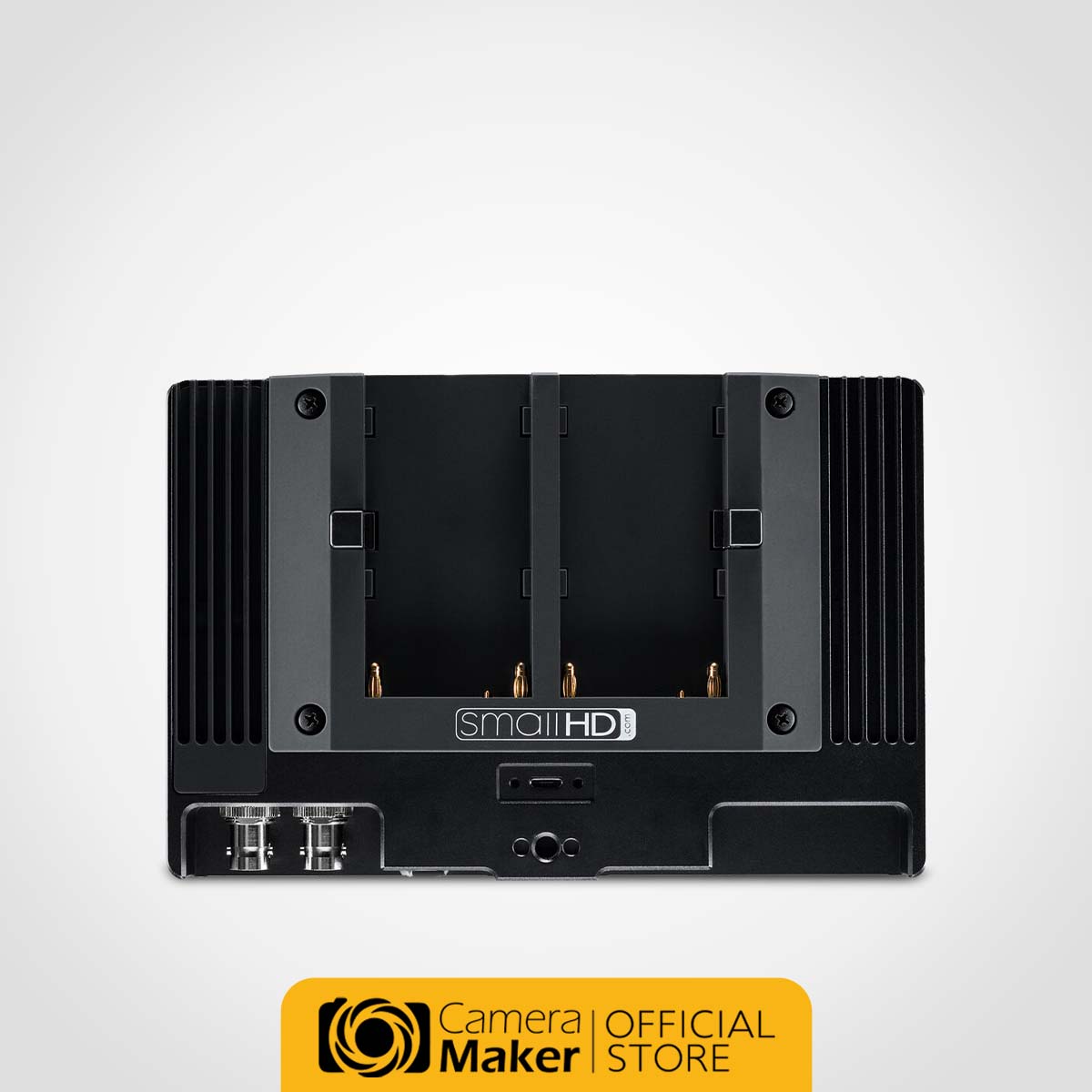

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
For the production professional who demands performance, brightness, and intuitive control options in a touchscreen 7-inch monitor.
Cine 7 is offers 1800nits of brightness – plus control license options for a variety of Canon, Sony, ARRI, and RED® cameras. Experience all your favorite PageOS tools, functions, and settings pages on our premium 7-inch touchscreen monitor.
1800nits Max Brightness
3G-SDI 1080p60
DCI-P3 Color Gamut
Camera Control Canon, Sony, ARRI, RED®
1920×1200 Resolution
10-Bit Color Processing

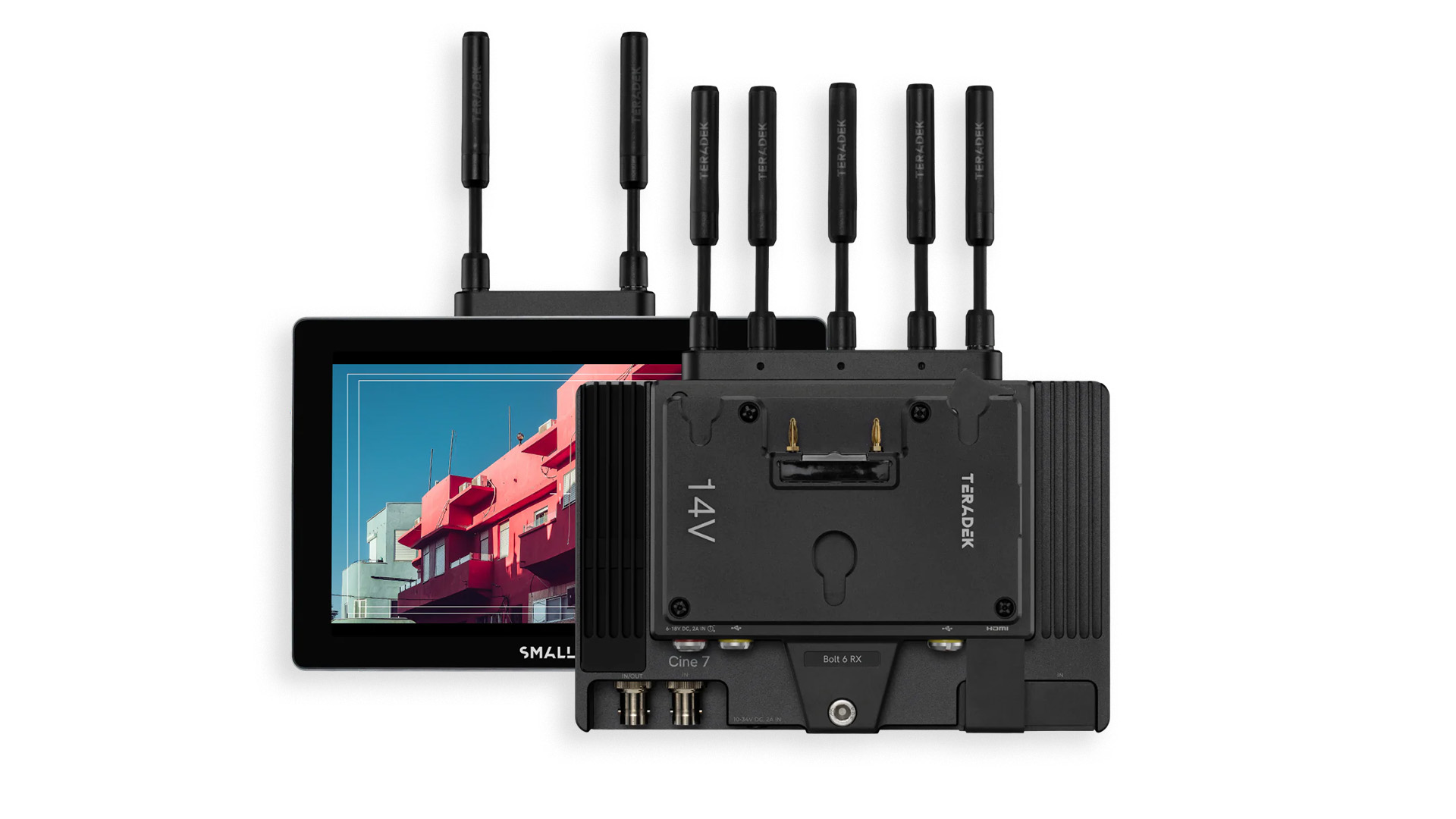

Receive pristine wireless video from any Bolt 6 or Bolt 4K transmitter at a distance of up to 750ft (228m) or 1500ft (457m). This hardware addition to Cine 7 attaches to the back of the monitor for integrated, cable-free workflows. Included with Gold or V-Mount power options.

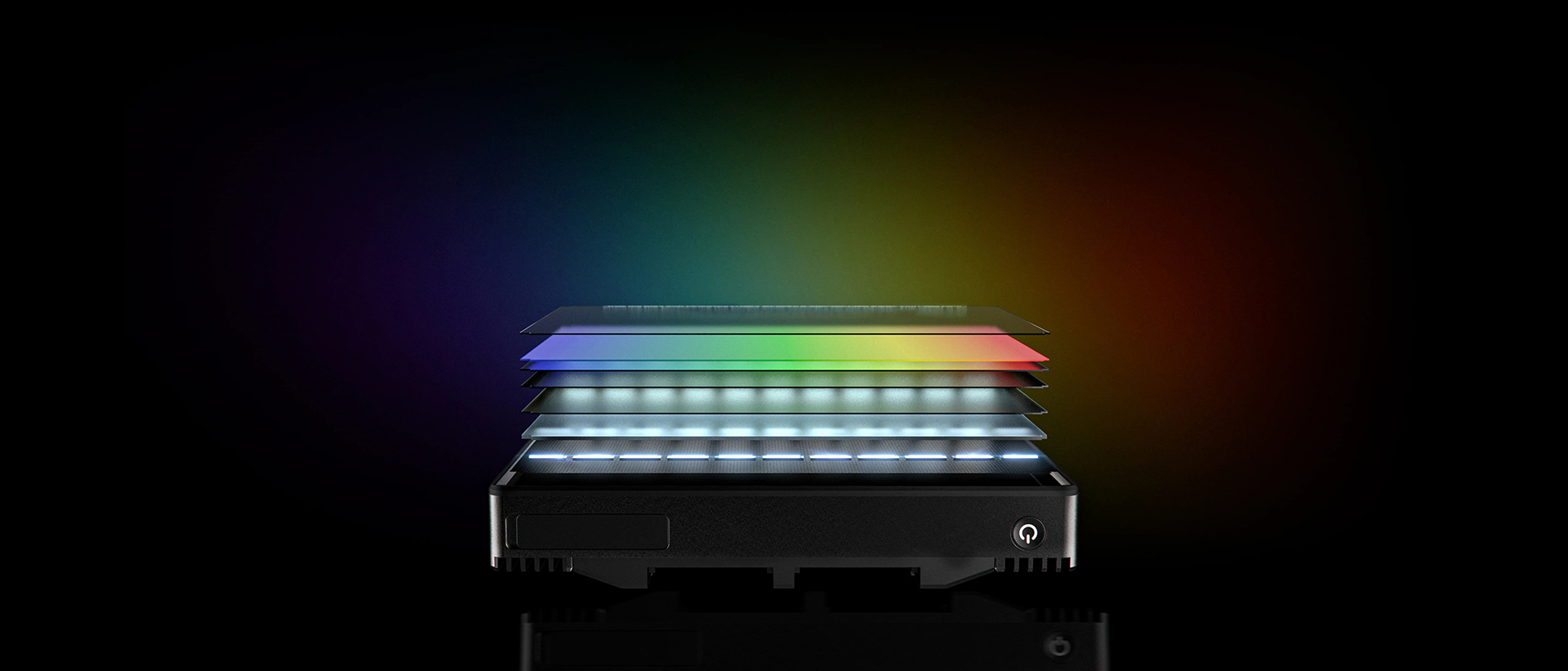

SmallHD LEDs for Cine 7 panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light through a quantum-dot film, ensuring the purest color accuracy on our panels. The result is an extremely bright monitor with excellent image fidelity.

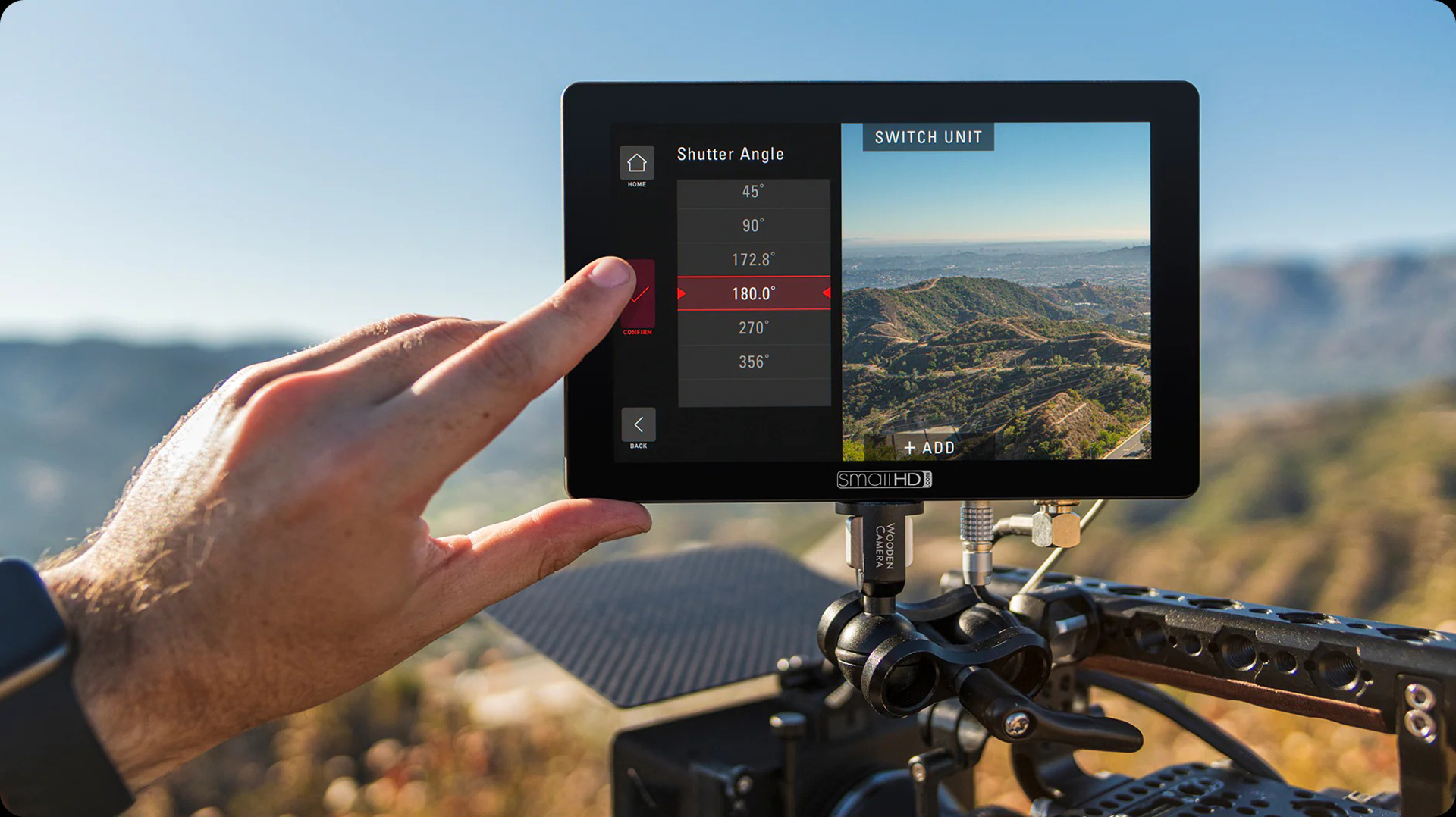

Smarter, more intuitive software tools for at-a-glance adjustments, effortless navigation, and more accurate exposure and color control. Personalized Page Profile, Focus and Exposure Assist, Lookaround Camera Control, Tetrahedral LUT Interpolation, Advanced Teradek RT Overlays
| DISPLAY | |
|---|---|
| Panel Type | IPS LCD (Touchscreen) |
| Diagonal Size | 7.02 inches |
| Resolution | 1920 x 1200 |
| Max Brightness | 1800 nits (Daylight Viewable) |
| Color Gamut | 100% DCI-P3 Coverage |
| SIGNAL INPUT / OUTPUT | |
| SDI | 1x 3G-SDI Input, 1x 3G-SDI Selectable In/Out |
| HDMI | 1x HDMI Input, 1x HDMI Output (Full Size Type-A) |
| Audio | Front Bezel Speakers & 3.5mm Headphone Jack |
| Cross Conversion | Yes: HDMI to SDI & SDI to HDMI |
| POWER & BATTERY | |
| Input Voltage | 10V – 34V DC (via 2-pin Locking Input) |
| Battery Compatibility | L-Series (NP-F), V-Mount, Gold Mount |
| Power Connector | LEMO / 2-pin Locking |
| CAMERA CONTROL | |
| Compatibility | ARRI, RED® KOMODO™, RED DSMC2®, Sony VENICE |
| Software License | Sold separately |
| PHYSICAL SPECS | |
| Construction | Anodized Aluminum Chassis |
| Dimensions (W x H x D) | 7.09 x 4.67 x 1.32 inches |
| Item Weight | 20 oz (Approx. 567 g) |
| Mount Points | 4x 1/4-20 Points (Left, Right, Bottom, and Back) |
