Pre Order
– Display 13.3-inch, 3840 x 2160 (4K), 1500 nits
– Color Depth 10-bit (8+2) for color-accurate images
– Backlight Type LCD
– SDI 4x 12G-SDI in, 4x 12G-SDI out
– HDMI 1x HDMI 2.0 Input, 1x HDMI 2.0 Output
– Power Input 1x 4-pin XLR (12V-34V)
– Build Anodized Aluminum Chassis (Rugged & Portable)
– Weight: 6.8 lbs / 3.09 kg
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

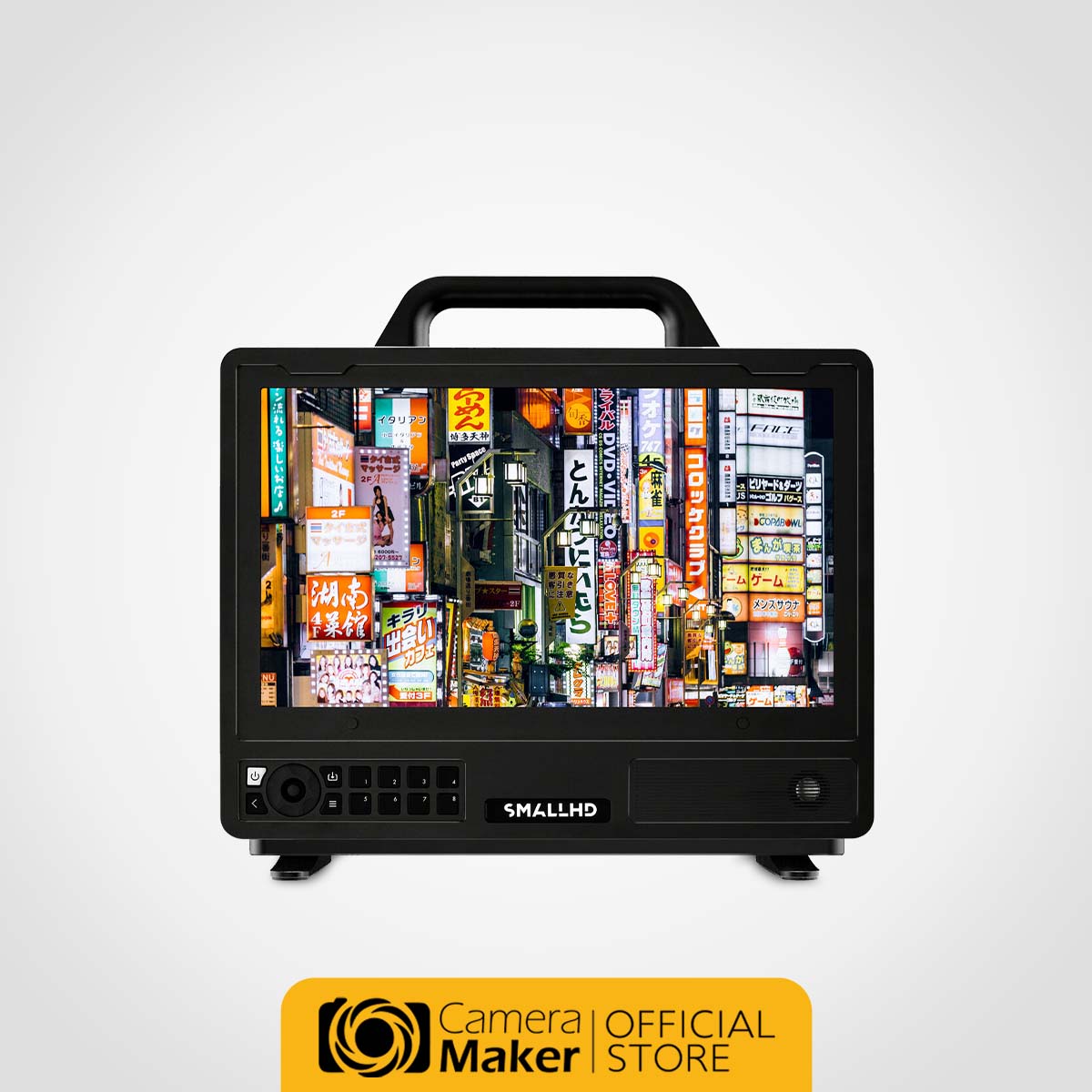

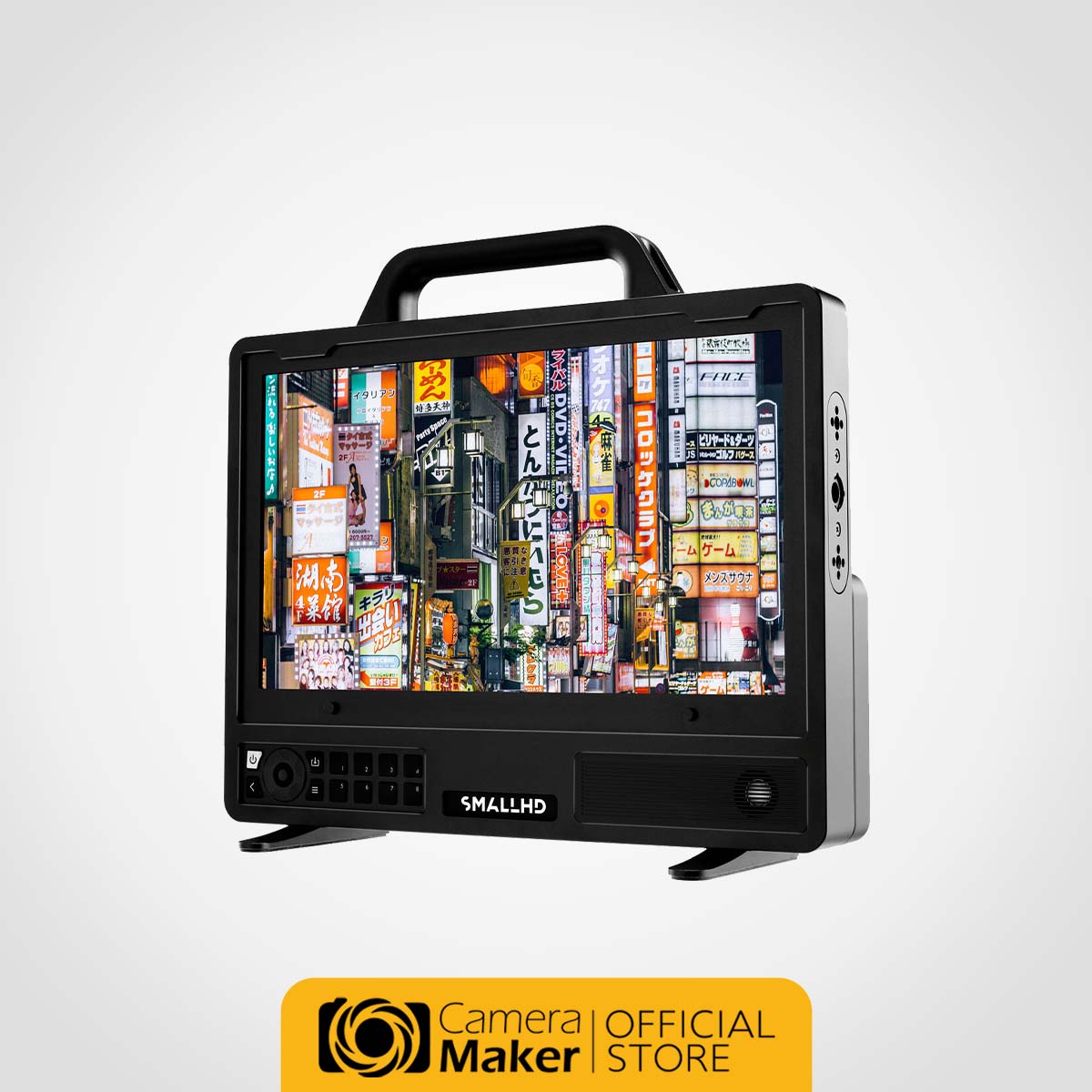

Cine 13 is an agile, brilliantly bright, and pixel-dense 4K production monitor designed for those on-set creatives who require critical focusing capability and a large display. Low-profile in design, this field companion can be rigged for almost any situation. And, weighing in at only 6.8lbs, the Cine 13 is making monitoring in 4K more portable than ever.
The Cine 13” 4K High-Bright Monitor boasts over 1500nits of brightness, ensuring an unobstructed look at your production in full sunlight without the need for a sunhood or viewing tent. The 13-inch screen has a 3840 x 2160 resolution and full 4K clarity, as well as 10-bit color depth for color-accurate images.

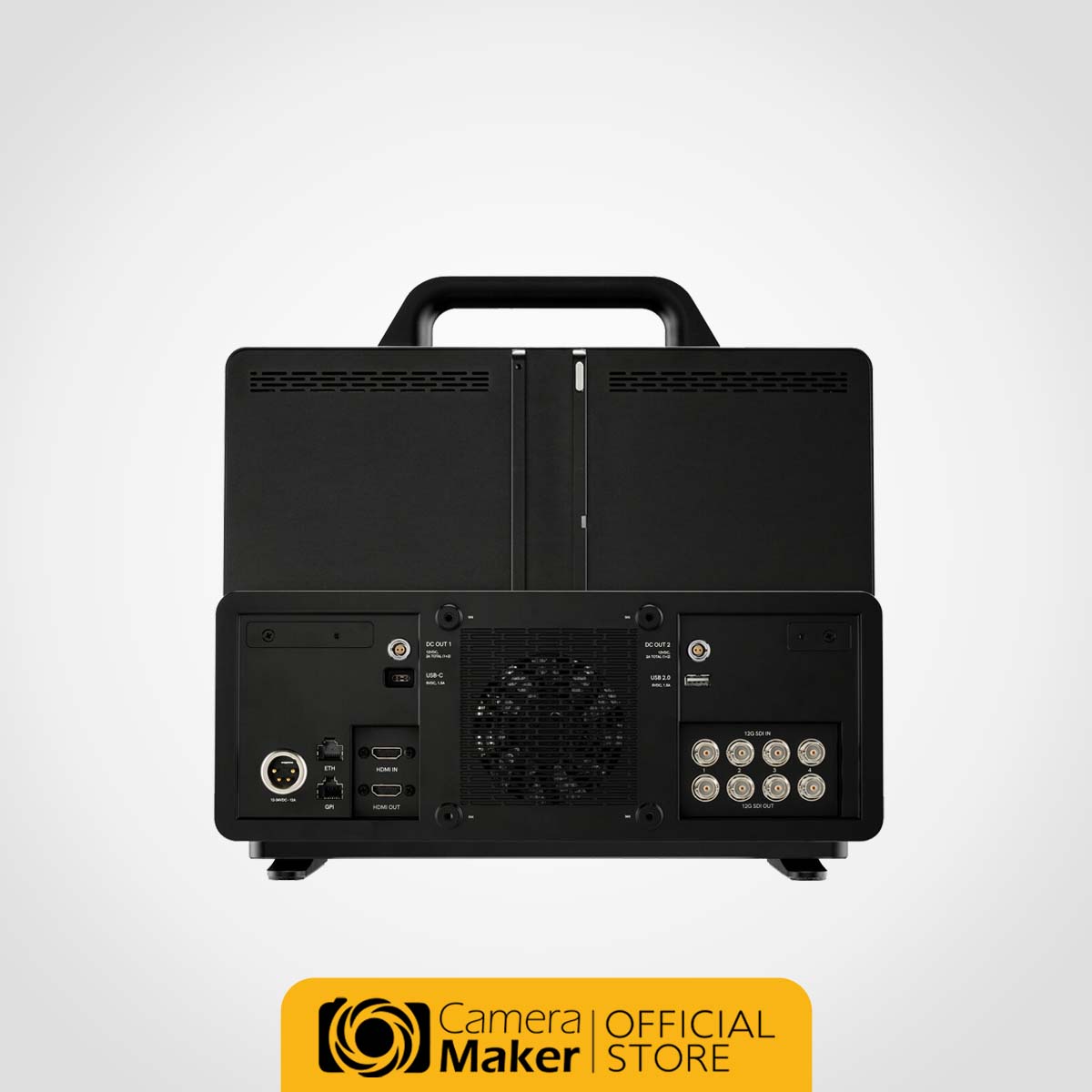

Cine 13 features four 12G SDI inputs and outputs as well as one HDMI 2.0 input. The Unibody Smart Chassis offers an Arca Slide on Rail for battery and accessory mounting, a lower mounting rail for ultimate flexibility, and 2x 2-pin accessory power outputs. Hot-swappable dual inputs allow you to add on Gold Mount or V-Mount battery plate attachments.
Daylight-bright Cine 4K Monitors are color-accurate, lightweight, durable, and easily adapt to a wide range of production use cases: Video Village, AC, DP, DIT, or as a director’s monitor.
Panel Size 13.3in
Max Brightness 1500nits
Color Gamut 100% Rec. 709
Panel Resolution 3840 x 2160
All our production monitors run on PageOS, which features the powerful new functionality of Multi-View & seamless integration with Calman® calibration software on 4K production monitors. Additionally, PageOS features highly-anticipated tools like Look-Around Camera Control on all pages, EL Zone false color, Tetrahedral LUT interpolation, improved HD upscaling
A Unibody Smart Chassis, a full complement of I/O options, integrated mounting points, and a field-tested reputation for lightweight durability.
The LEDs SmallHD sources for Cine Series panels have the highest tolerance for color uniformity. These LEDs are built into an edge-lit panel stack that diffuses and focuses the light with a quantum-dot film layer to ensure the purest color accuracy. The result is an extremely bright monitor with excellent image fidelity.
| Diagonal Size | 13.3″ |
| Resolution | 3840 x 2160 (4K) |
| Max Brightness | 1500 nits |
| Contrast Ratio | 1300:1 |
| Color Depth | 10-bit (8+2) |
| Refresh Rate | 48Hz to 60Hz (Synchronized) |
| SDI Input |
• 12G / 6G / 3G / HD / SD-SDI Support • Up to 4Kp60 (10-bit 4:2:2 YCC) |
| HDMI Input |
• Up to 4Kp60 (12-bit 4:2:2 / 8-bit 4:4:4) • High-speed frame rate support for 1080p, 720p, and SD |
| Audio |
• Front Bezel Speakers • 1x 3.5mm Stereo Headphone Jack • Up to 8-channel metering |
| Data I/O | 1x SD Card Slot, 1x RJ45 Ethernet, 1x RJ45 GPI |
| Input | 1x XLR 4-pin (12V – 34VDC, 18A max) |
| Output |
2x 2-pin (12V/2A combined) 1x USB-A (Front 2.4A / Rear 1.5A) 1x USB-C (5V/1.5A) |
| Consumption | 36.7W (Monitor only) / Up to 117.9W (w/ accessories) |
| Construction | Anodized aluminum chassis with plastic accents |
| Item Weight | 6.8 lbs / 3.09 kg |
| Dimensions (H x W x D) |
• 10.1 x 13.2 x 2.3″ (Body only) • 12.4 x 13.2 x 4.7″ (With feet and handle) |
| Operating Temp. | 32°F – 100°F (0°C – 37°C) |
| Compliance | FCC, IC, CE, RoHS, SRRC, MIC |
