Pre Order
– Daylight Viewable: 1500 cd/m² Brightness
– Color Accuracy: 100% DCI-P3 Color Gamut
– Versatile I/O: 3G-SDI & HDMI with Real-Time Cross Conversion
– Rugged Build: Aircraft-Grade Aluminum Chassis
– Dimensions: 7.09 x 4.67 x 1.29″ / 18.01 x 11.86 x 3.28 cm
– Weight: 18.9 oz / 536 g
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
The 702 Touch is the smart, ruggedly built SDI/HDMI touchscreen monitor designed for full-time
creative professionals. The 702 Touch is extremely durable without adding bulk and daylight
viewable without consuming enormous amounts of power. With flexible signal options, world-class
software tools, and intuitive touchscreen controls, the 702 Touch offers ultimate versatility. Built
with an aluminum chassis, this monitor is rugged, designed to be packed, transported, and used in
the field.
Daylight Viewable: With a maximum brightness of 1500 cd/m², this monitor is fully capable of performing in bright outdoor environments.
Color Precision: While the display is 8-bit, the internal processing is 10-bit, ensuring smooth gradients and accurate color reproduction across its 100% DCI-P3 color gamut.
Equipped with SmallHD’s renowned software, the 702 Touch allows you to navigate via a high-response touchscreen.
Pages System: Replace confusing menus with up to 12 customizable “Pages.”
One-Touch Tools: Quickly toggle between Focus Assist, Zebra, Waveform, and Custom LUTs with a simple swipe.
Versatile I/O: Features full-size 3G-SDI and HDMI inputs and outputs with cross-conversion capability.
Battery Options: Includes a Dual L-Series battery plate as standard, with support for interchangeable Gold Mount or V-Mount plates (sold separately).
Audio Monitoring: Includes a 1/8″ (3.5mm) headphone jack for real-time audio check.
Display: 7″ 1920 x 1200 Touchscreen
Brightness: 1500 cd/m² (Daylight Viewable)
Contrast: 1000:1 Contrast Ratio
Processing: 10-Bit Internal Processing
Color Gamut: 100% DCI-P3 Accuracy
Build: Rugged Aluminum Chassis
| Panel Type | IPS-Type LCD |
| Display Size | 7.0″ / 17.8 cm |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 179° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 cd/m2 |
| Contrast Ratio | 1000:1 |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Pixels Per Inch (ppi) | 322 ppi |
| Color Gamut | 100% DCI-P3 |
| Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform |

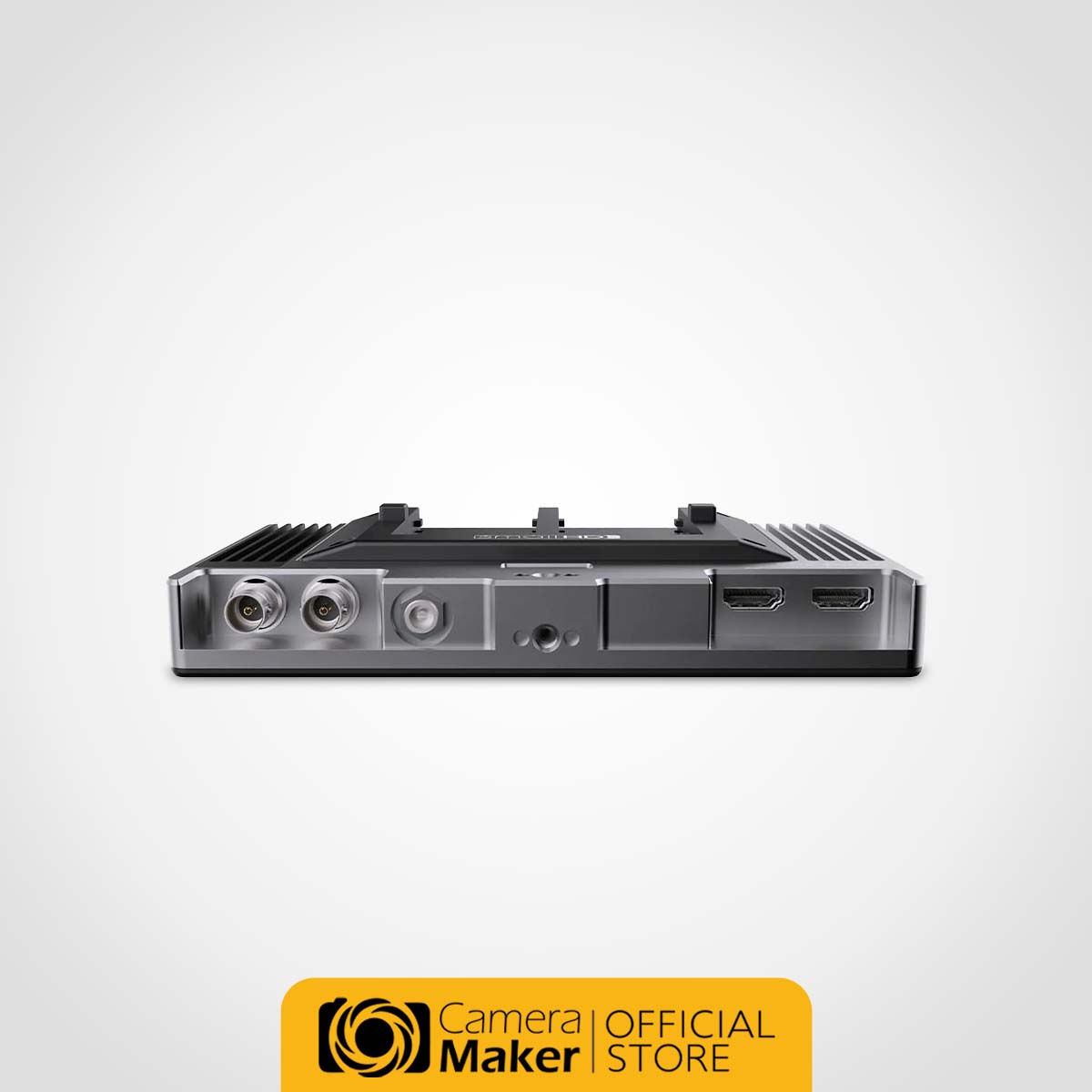

| Video | 1 x BNC (3G-SDI) Output 1 x BNC (3G-SDI) Input/Output 1 x HDMI Type A Output 1 x HDMI Type A Input |
| Embedded Audio | HDMI / SDI |
| Audio | 1 x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speaker | None |
| Power Output | 1 x 5.5 mm Barrel (34 VDC) |
| Other I/O | 1 x USB 2.0 (Micro-USB) |
| Video Format | SDI (10-Bit 4:2:2 YCC) • 1080p : 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 • 1080PsF : 23.98 / 24 / 25 / 29.97 / 30 • 1080i : 50 / 59.94 / 60 / 100 / 118.88 / 120 • 720p : 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 HDMI (8/10/12-Bit) • Supports formats up to 1080p60 with High-speed frame rate support for 720p and SD resolutions. |
| Battery Type | 1 x L-Series, V-Mount, or Gold Mount (Interchangeable Mount) |
| Power Consumption | 17 W (Maximum) |
| Mounting | 4 x 1/4″-20 Female |
| Material | Aluminum |
| Dimensions | 7.09 x 4.67 x 1.29″ / 18.01 x 11.86 x 3.28 cm |
| Weight | 18.9 oz / 536 g |
