– EK 100 G4 Camera Mountable Receiver
– SKM 100 G4 Handheld Transmitter
– MMD 835-1 Cardioid Dynamic Capsule
– 1680 Tunable Frequencies Across 42 MHz
– Auto Frequency Scan Finds Open Bands
– 3-Level Squelch to Block Interference
– 20 Banks with 12 Channel Presets Each
– Compander for Clearer Sound
– Auto-Lock Prevents Accidental Adjustment
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

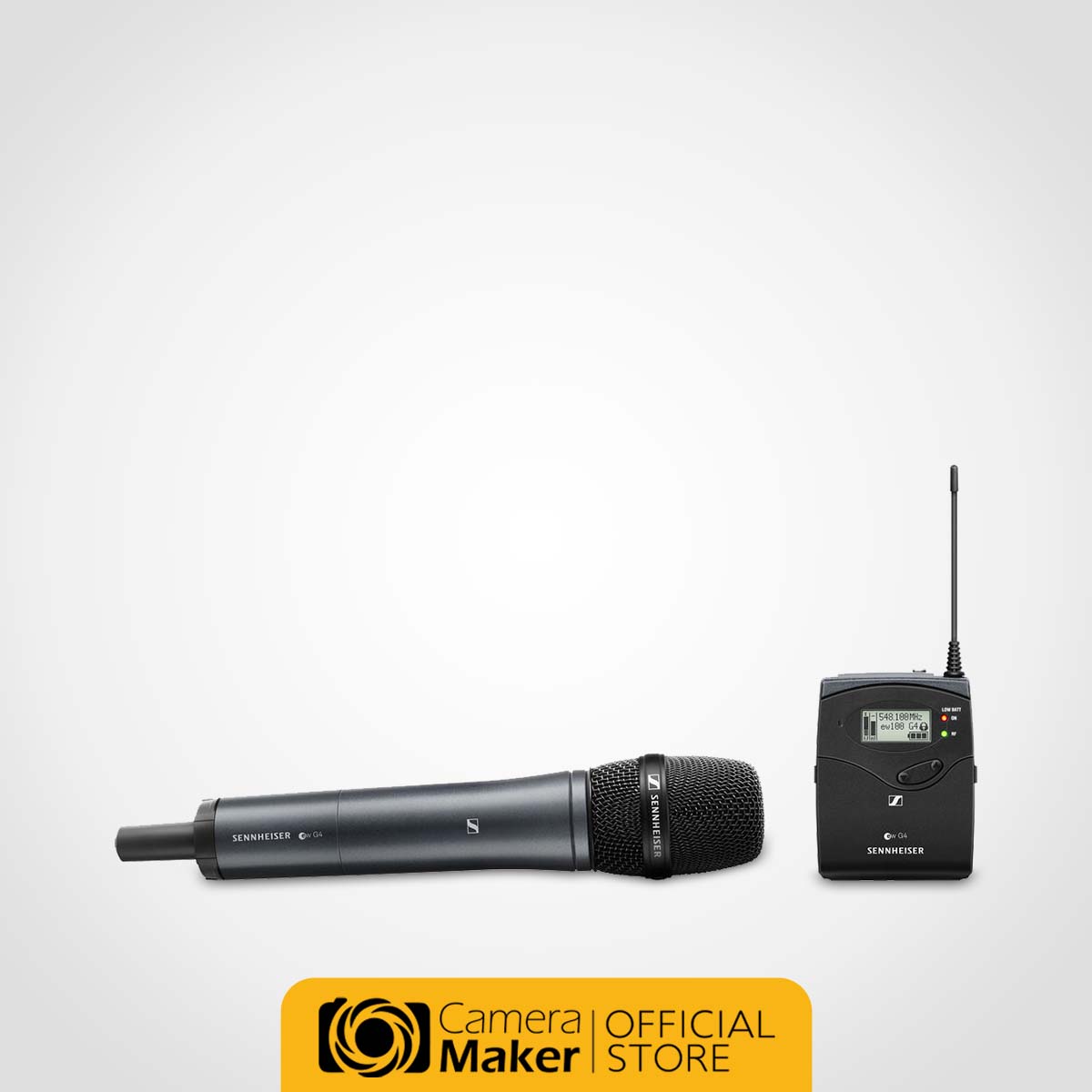

Rugged all-in-one wireless system with high flexibility for broadcast quality sound. Set consists of 1 SKM 100 G4 handheld microphone, 1 MMD 835-1 (cardioid, dynamic), 1 EK 100 G4 portable receiver, output cables, camera mount.
1 x EK 100 G4 Camera-Mount Receiver

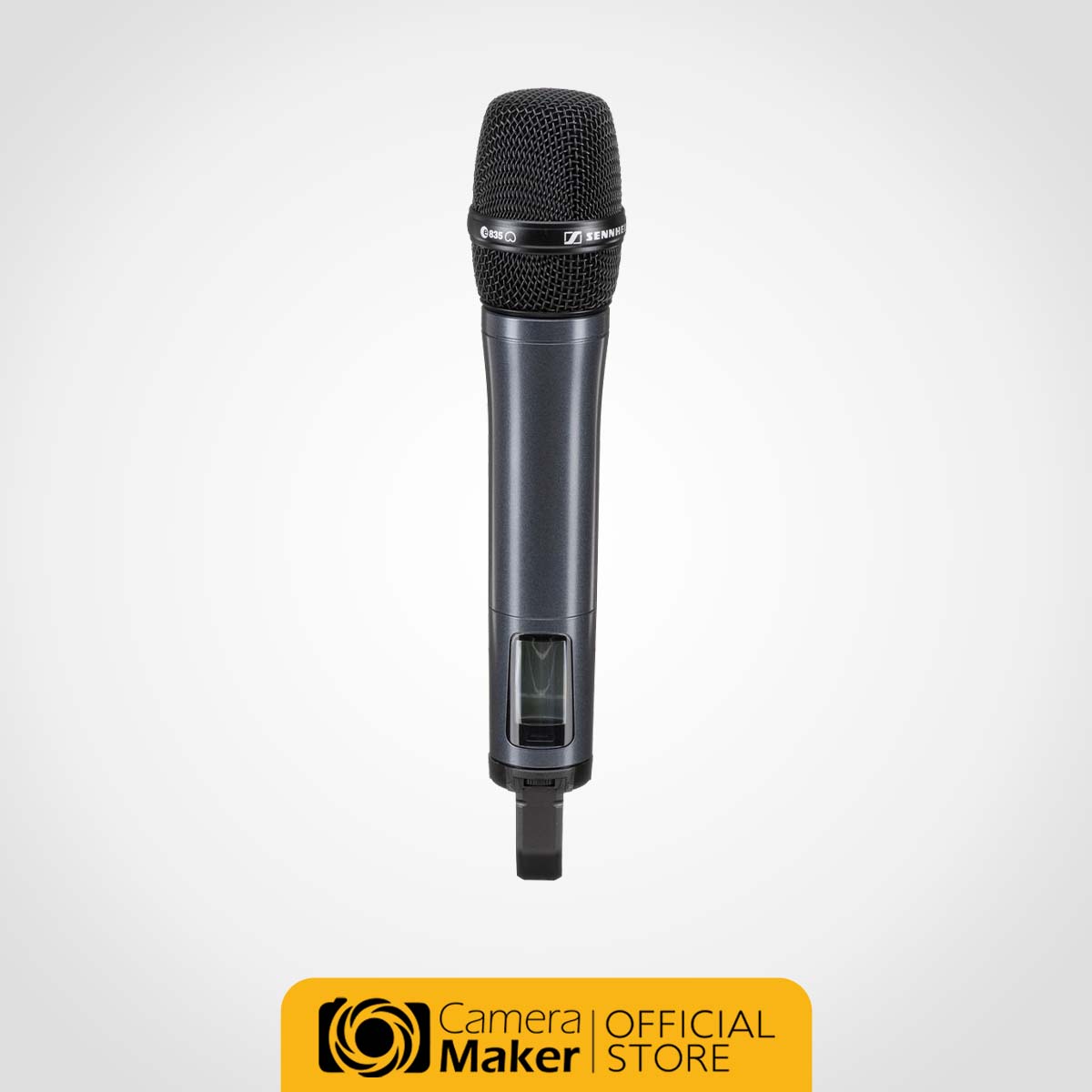

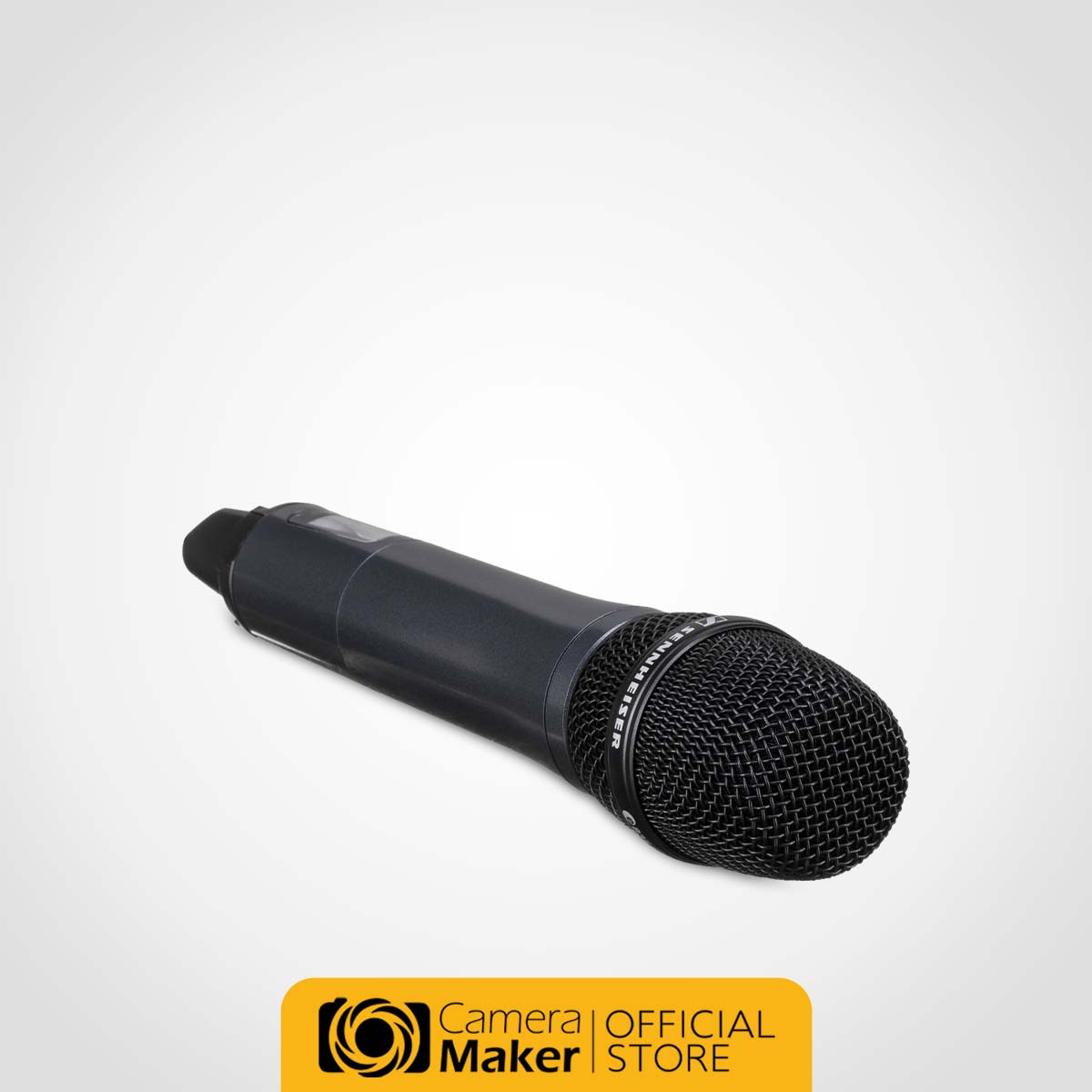

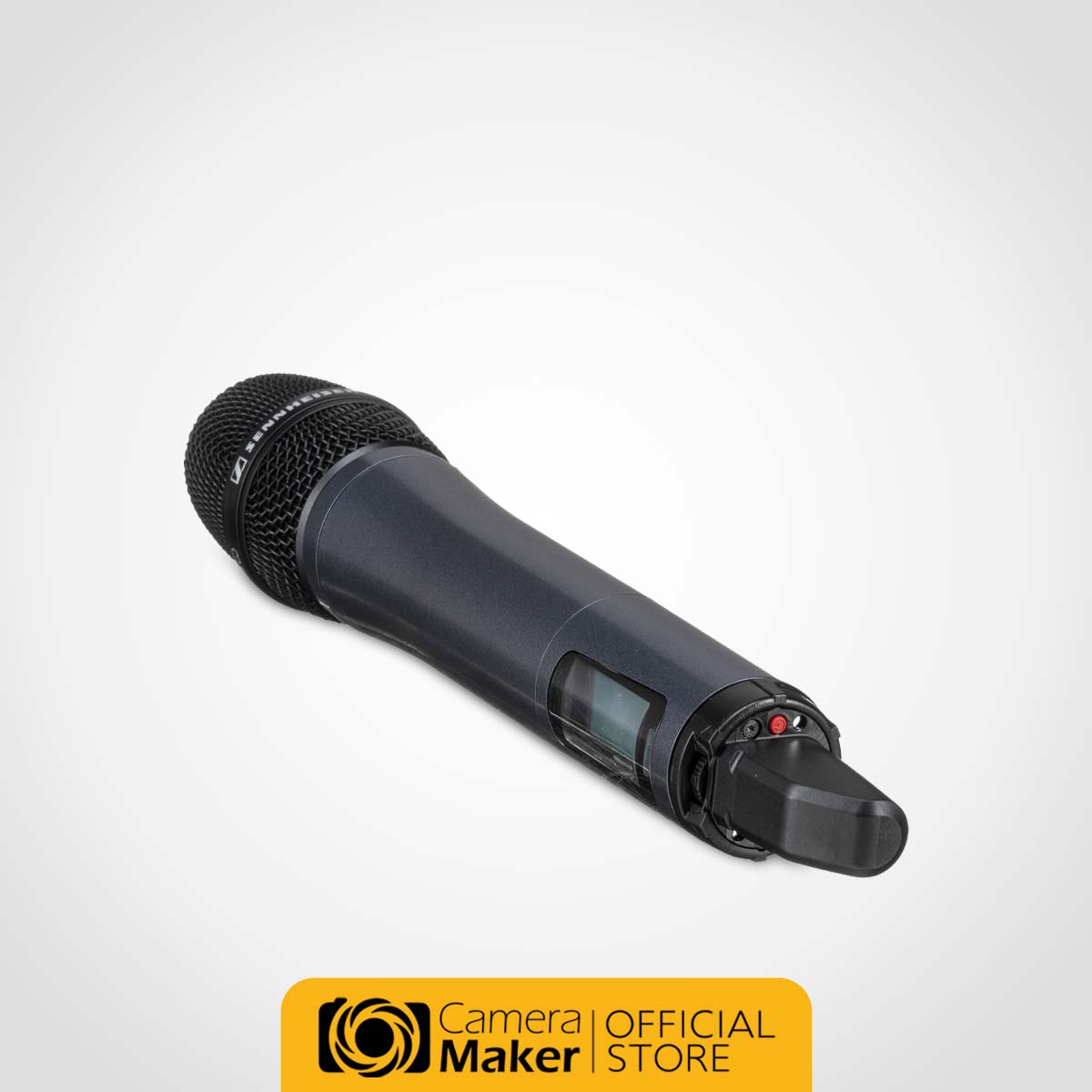

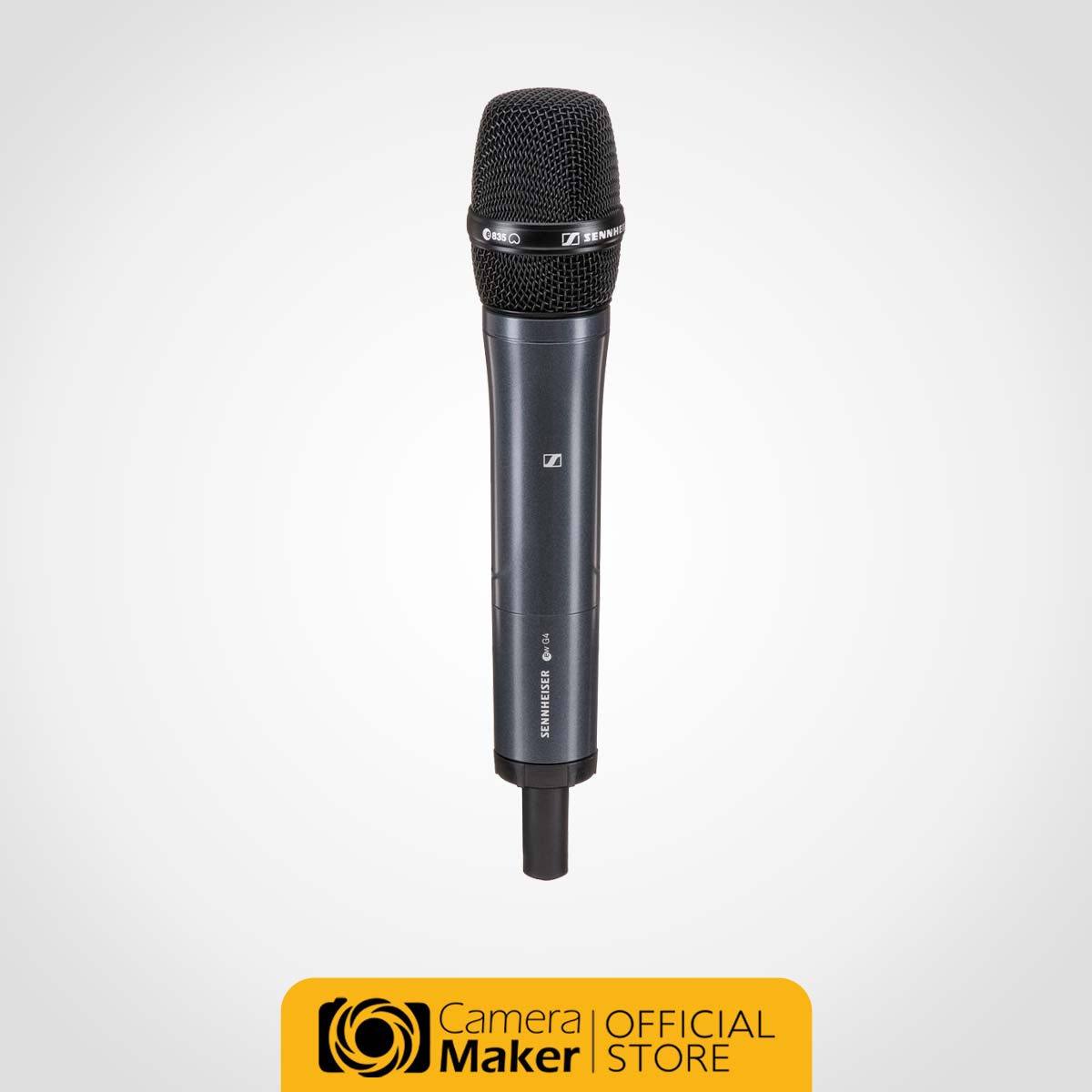

1 x SKM 100 G4 Handheld Transmitter
1 x MMD 835-1 Microphone Head (Dynamic, Cardioid)
1 x MZQ 1 Microphone Clamp
1 x CA 2 Shoemount Adapter
1 x CL 1 3.5 mm Jack Cable
1 x CL 100 XLR to 3.5 mm Jack Adapter Cable
4 x AA Batteries
Quick Guide & Safety Guide
The EK 100 G4 Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. Featuring an updated high-contrast LCD display, blue sync LED, and a dedicated escape button, it can be used when paired with a microphone and transmitter (sold separately) for capturing audio in live sound, broadcast, film, business, and educational applications.
The EK 100 G4 wireless receiver is lightweight and built with an all-metal housing. It is equipped with 1680 tunable UHF frequencies and synchronizes with G4 transmitters at the touch of a button. A 3.5mm audio-output jack delivers a clean output signal using the included adapter output cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
Key Features:
Microphone module from the renowned evolution 800 series with consistent pick-up pattern (cardioid) and powerful sound for a wide variety of applications. Compatible with all handheld transmitters from the ew G3, ew G4, D1, AVX, SpeechLine Digital Wireless and 2000 series.
| Modulation | Wideband FM |
| Frequency Band | 748.200 – 757.800 MHz (C-TH) |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Principle of Operation | Adaptive diversity |
| Sensitivity | < 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation) |
| Adjacent Channel Selectivity | ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | Low: 5 dBµV Middle: 15 dBµV High: 25 dBμV |
| Pilot Tone Squelch | Can be switched off |
| Antenna Inputs | 2 x BNC sockets |
| Compander | Sennheiser HDX |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum AF Output Voltage | 1/8″ /3.5 mm Jack: +12 dBu (mono, unbalanced) |
| Output Level Range | 42 dB, adjustable in steps of 6 dB |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA 1.5 V batteries, or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | Nominal Voltage: Typical 180 mA With Receiver Switched Off: ≤ 25 µA |
| Operating Time | Typically 8 hours |
| Dimensions (L x W x H) | 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm |
| Weight | 5.6 oz / 160 g |
| Modulation | Wideband FM |
| Frequency Range (C-TH) | 748.200 – 757.800 MHz (C-TH) |
| Transmission Frequencies | Max 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power at 50 Ω | Max. 30 mW |
| Pilot Tone Squelch | Can be switched off |
| Compander System | Sennheiser HDX |
| AF Frequency Response | 80 – 18,000 Hz |
| Signal-to-Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9 % |
| Input Voltage | 3 Veff |
| Input Impedance | 40 kΩ |
| Input Capacitance | Switchable |
| Input Sensitivity Range | 48 dB in 6 dB steps |
Overall Device
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA 1.5 V batteries or BA 2015 accupack |
| Operating Time | Typically 8 hours |
| Dimensions | Approx. Ø 50 x 265 mm |
| Weight (incl. batteries) | Approx. 15.9 oz (450 g) |
| Compatible Transmitters | SKM 100/300/500 G3/G4, SKM 2000/6000/9000, SKM D1/AVX, SL handheld DW |
| Type | Dynamic |
| Polar Pattern | Cardioid |
| Sound Pressure Level | 154 dB |
| Sensitivity | 2.1 mV/Pa |
