Pre Order

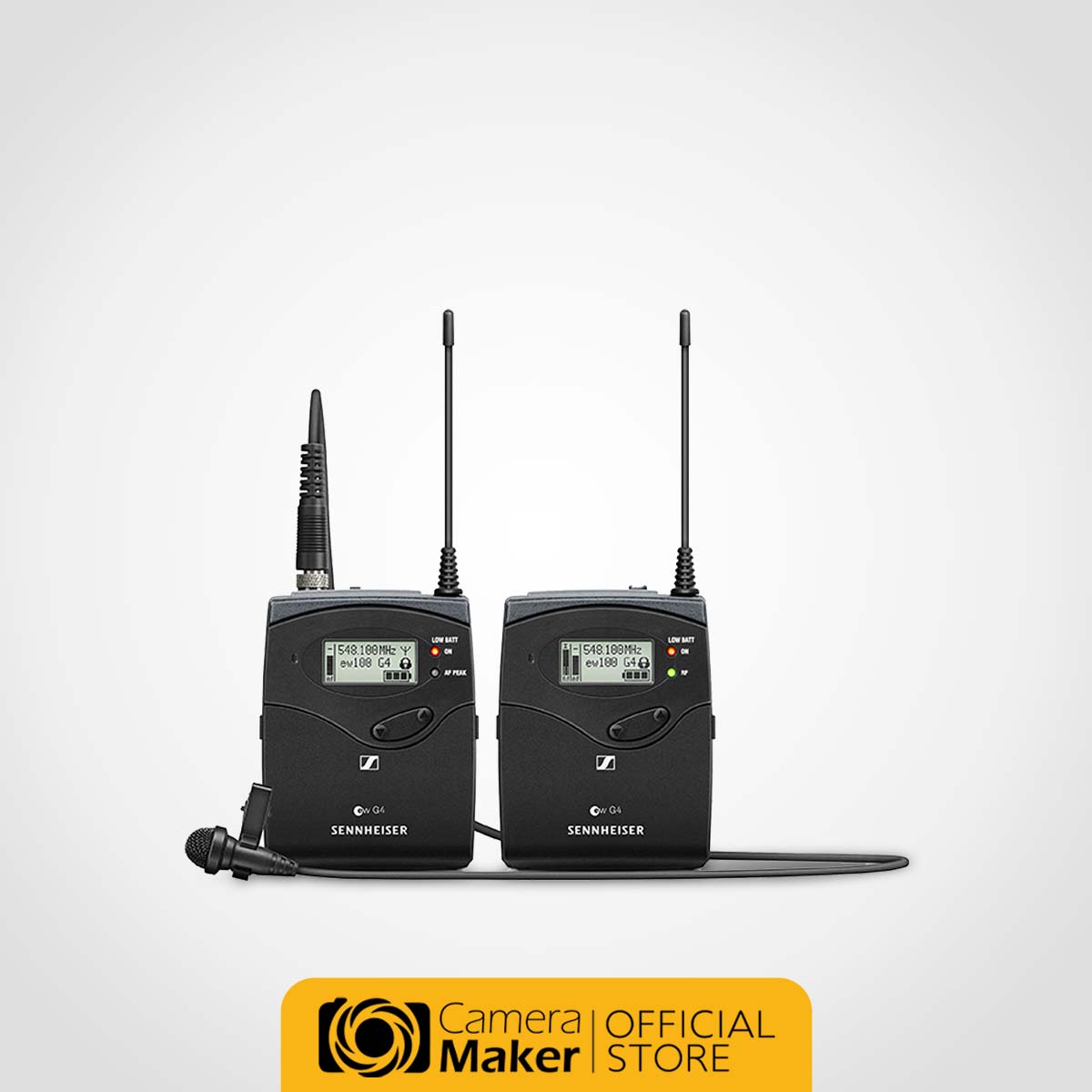

– EK 100 G4 Camera-Mountable Receiver
– SK 100 G4 Bodypack Transmitter
– ME 4 Cardioid Clip-on Lav Mic
– 1680 Tunable Frequencies Across 42 MHz
– Auto Frequency Scan Finds Open Bands
– 3-Level Squelch to Block Interference
– 20 Banks with 12 Channel Presets Each
– Compander for Clearer Sound
– Auto-Lock Prevents Accidental Adjustment
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
The EK 100 G4 Wireless Camera-Mount Receiver from Sennheiser is the latest addition to their evolution family of wireless microphones and is fully compatible with all previous series. Featuring an updated high-contrast LCD display, blue sync LED, and a dedicated escape button, it can be used when paired with a microphone and transmitter (sold separately) for capturing audio in live sound, broadcast, film, business, and educational applications.
The EK 100 G4 wireless receiver is lightweight and built with an all-metal housing. It is equipped with 1680 tunable UHF frequencies and synchronizes with G4 transmitters at the touch of a button. A 3.5mm audio-output jack delivers a clean output signal using the included adapter output cables. The receiver operates on 2 standard AA batteries, and an optional 12 VDC adapter is also available. The included shoe-mount adapter allows you to mount the receiver on a camera for convenient portable use.
The SK 100 G4 Wireless Bodypack Transmitter from Sennheiser is the latest addition to their evolution family of wireless microphones. It can be used when paired with a companion receiver and microphone, as part of a wireless RF transmission system for live stage, theater, presentation, and rehearsal applications.
The transmitter features 1680 frequencies tunable in 25 kHz steps with 20 fixed frequency banks and up to 12 compatible frequency presets. There is 1 user bank with up to 12 user programmable frequencies. The transmitter’s menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more.
Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or by one Sennheiser BA 2015 rechargeable accupack. It is built with a rugged metal housing. The SK 100 G4 transmitter will operate about 8 hours and is equipped with a 1/8″ line/mic input jack. With 25 Hz to 18 kHz AF frequency response, the SK 100 G4 is designed to deliver a natural audio quality.
Key Features:
Robust bodypack transmitter for daily use on stage.
Easy and flexible wireless synchronization between transmitter and receiver via infrared.
Fast frequency allocation for up to 12 receivers via updated linking functionality.
Up to 20 compatible channels.
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
Transmission Range: up to 100 meters / 330 feet
High RF output power (up to 30 mW) depending on country regulations.
Small cardioid clip-on microphone especially for speech applications in noisy environment. Feedback-rejecting.High speech intelligibility. Easy attachment on clothing.
Features
| Modulation | Wideband FM |
| Frequency Band | 748.200 – 757.800 MHz (C-TH) |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Principle of Operation | Adaptive diversity |
| Sensitivity | < 1.6 μV for 52 dBA eff S/N (with HDX, peak deviation) |
| Adjacent Channel Selectivity | ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 65 dB |
| Blocking | ≥ 70 dB |
| Squelch | Low: 5 dBµV Middle: 15 dBµV High: 25 dBμV |
| Pilot Tone Squelch | Can be switched off |
| Antenna Inputs | 2 x BNC sockets |
| Compander | Sennheiser HDX |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum AF Output Voltage | 1/8″ /3.5 mm Jack: +12 dBu (mono, unbalanced) |
| Output Level Range | 42 dB, adjustable in steps of 6 dB |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA 1.5 V batteries, or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | Nominal Voltage: Typical 180 mA With Receiver Switched Off: ≤ 25 µA |
| Operating Time | Typically 8 hours |
| Dimensions (L x W x H) | 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm |
| Weight | 5.6 oz / 160 g |
| Modulation | Wideband FM |
| Frequency Range | 748.200 – 757.800 MHz (C-TH) |
| Transmission Frequencies | Maximum 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Frequency Stability | ≤ ±15 ppm |
| RF Output Power | Maximum 30 mW at 50 Ohms |
| Pilot Tone Squelch | Can be switched off |
| Compander | Sennheiser HDX |
| AF Frequency Response | Mic: 80 Hz to 18 kHz Line: 25 Hz to 18 kHz |
| Signal to Noise Ratio | ≥ 110 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Maximum Input Voltage | Microphone/Line: 3 V eff |
| Input Impedance | Microphone/Line: 40 kOhms, unbalanced / 1 MOhms |
| Input Capacitance | Switchable |
| Input Sensitivity Range | 60 dB, adjustable in 3 dB steps |
| Temperature Range | 14 to 131°F (-10 to 55°C) |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Nominal Voltage | 3 V battery / 2.4 V rechargeable battery |
| Current Consumption | At Nominal Voltage: Approximately 180 mA With Transmitter Switched Off: ≤ 25 µA |
| Operating Time | Typically 8 hours |
| Dimensions (W x L x H) | 3.2 x 2.5 x 0.6″ (82 x 64 x 24 mm) |
| Weight | 5.6 oz (160 g) |
| Transducer principle | pre-polarized condensor microphone |
| Pick-up pattern | cardioid |
| Sensitivity (free field, no load) (1 kHz) | 40 mV/Pa |
| Max. SPL at 1 kHz | 120 dB |
| Frequency response | 50 to 18,000 Hz |
| Equivalent noise level A-weighted | 31 dB |
| Connector | 3.5 mm jack |
| Cable length | approx. 1.60 m |
| Diameter of microphone | 13 mm |
| Supply voltage | 10 V |
