Pre Order
– Dimensions (W x L x H) 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm
– Weight 4.4 oz / 125 g
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **

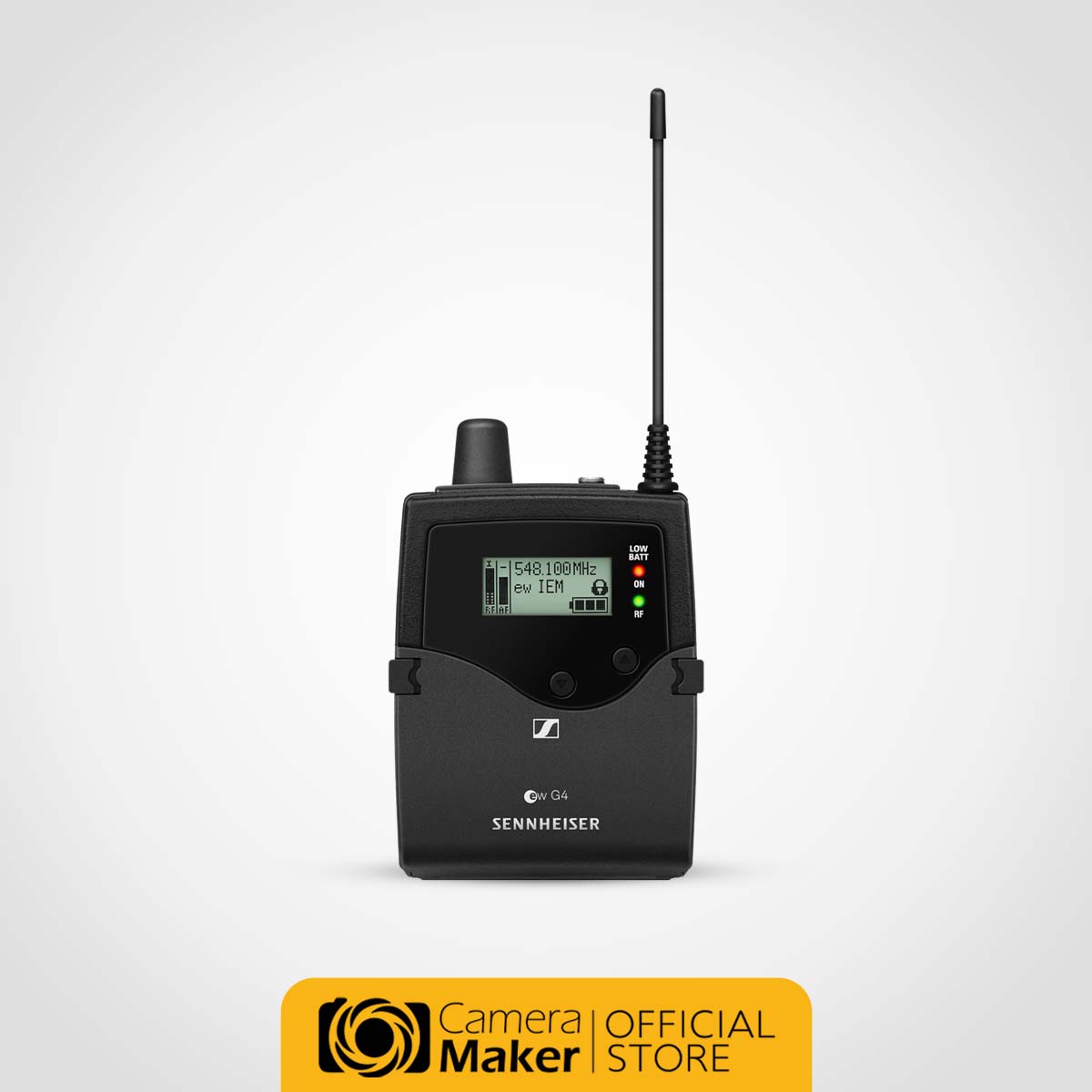

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

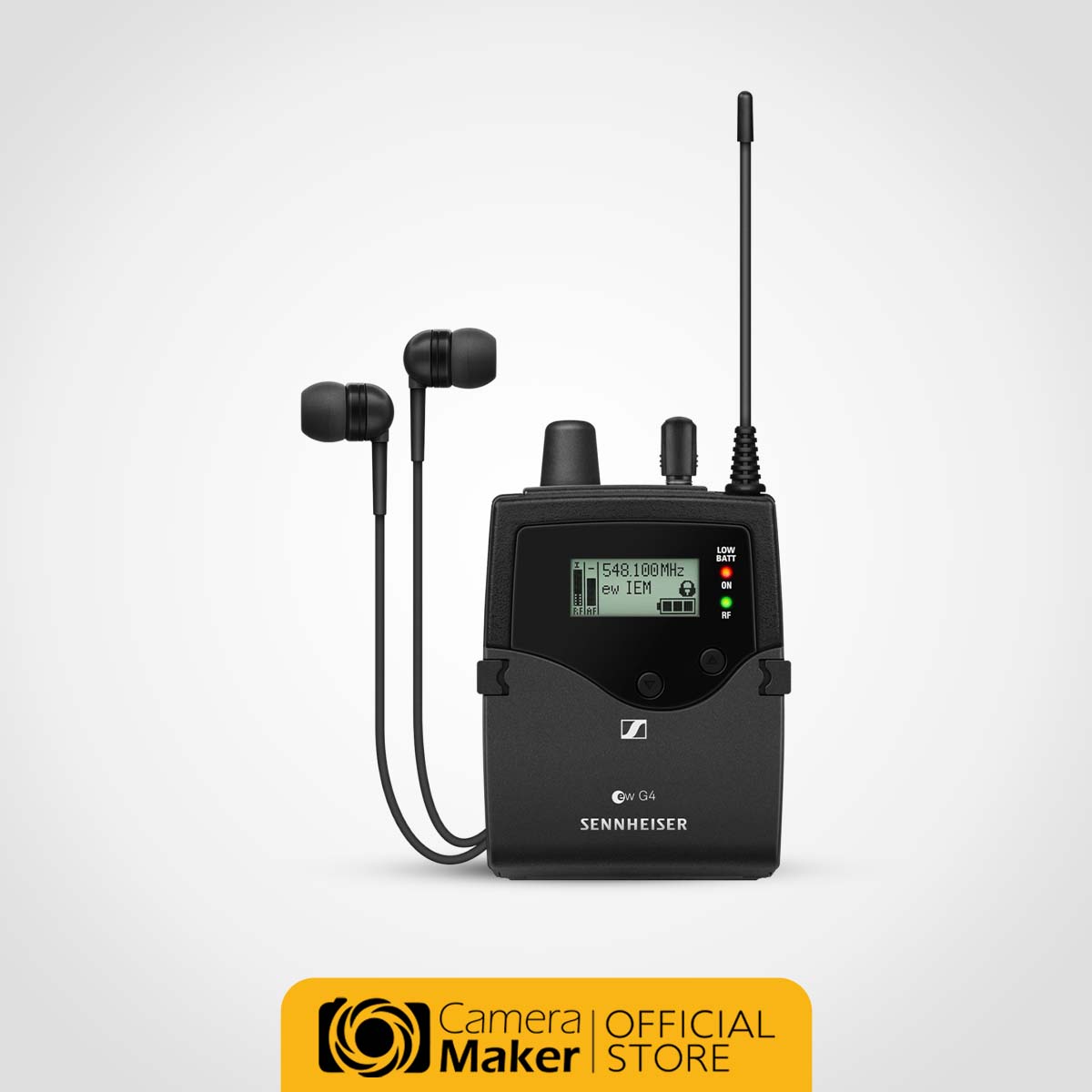

– EK IEM G4 Stereo Bodypack Receiver
– 1 x Pair of IE 4 Earphones
– Up to 16 Compatible Channels
– 42 MHz Bandwidth
Receiver
| Frequency Band | 748.2 to 757.8 MHz |
| Receiving Frequency | Maximum 1680 receiving frequencies, adjustable in 25 MHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels |
| Switching Bandwidth | Up to 42 MHz |
| Nominal/Peak Deviation | ±24 kHz / ±48 kHz |
| Receiver Type | Adaptive diversity |
| Sensitivity | < 4 μV, typ. 1.6 μV for 52 dBA (with HDX, peak deviation) rms s/n |
| Adjacent Channel Selectivity | Typically ≥ 65 dB |
| Intermodulation Attenuation | Typically ≥ 70 dB |
| Blocking | ≥ 80 dB |
| Pilot Tone | Squelch: Can be switched off |
| Squelch | 5 to 25 dBµV, adjustable in steps of 2 dB |
| Compander | Sennheiser HDX |
| Signal to Noise Ratio | Approximately 90 dBA (1 mV, peak deviation) |
| Total Harmonic Distortion (THD) | ≤ 0.9% |
| Audio Output Power | 2 x 100 mW at 32 Ohms (@ 2.4 V, 5% THD, nominal deviation) |
| Quality Setting Range | +8 dB at 80 kHz |
| Limiter | -18 dB to -6 dB, adjustable in steps of 6 dB, can be switched off |
| Temperature Range | 14 to 131°F / -10 to 55°C |
| Power Supply | 2 x AA batteries, 1.5 V or BA 2015 accupack |
| Current Consumption | At Nominal Voltage: Approximately 140 mA With Transmitter Switched Off: ≤ 25 µA |
| Operating Time | Approximately 4 to 6 hours (depending on volume level) |
| Dimensions (W x L x H) | 3.2 x 2.5 x 0.9″ / 82 x 64 x 24 mm |
| Weight | 4.4 oz / 125 g |
| Package Weight | 0.755 lb |
| Box Dimensions (LxWxH) | 14 x 3.25 x 2.85″ |
