Pre Order
– Very fast setup
– Plugs directly into XLR audio input
– Ultra compact receiver
– Switches on/off by P48 Phantom power
– Optimized dynamic range
– Auto frequency management
– AES 256 encryption
– License free
– Accessories included for DSLR use
– Metal housing
– Made in Germany
Weight
– Receiver 3.1 oz / 87 g (with Batteries)
– Handheld Transmitter 9.9 oz / 282 g (without Batteries)
– Bodypack Transmitter 3.1 oz / 87 g (without Batteries)
** ราคายังไม่รวมภาษีมูลค่าเพิ่ม **
The AVX-835 SET is the perfect digital wireless microphone for film projects. The system is fully self-configuring and ready to film within seconds, allowing you to concentrate on your creativity.
Plug and Record: Self-configuring digital transmission eliminates time-consuming radio frequency setup.
Ultra-Compact Receiver: Fits directly into the XLR audio input of your camera or recording device.
Innovative Rotatable Design: The receiver rotates around the XLR connector to avoid collision with other devices mounted on your camera.
Smart Power Management: Automatically switches on and off with your camera to save battery power.
Automatic Sensitivity: Perfectly matches your camera’s input sensitivity without the need to adjust audio levels on the microphone.
Robust Performance: Includes a heavy-duty handheld transmitter, ideal for street interviews and professional field use.

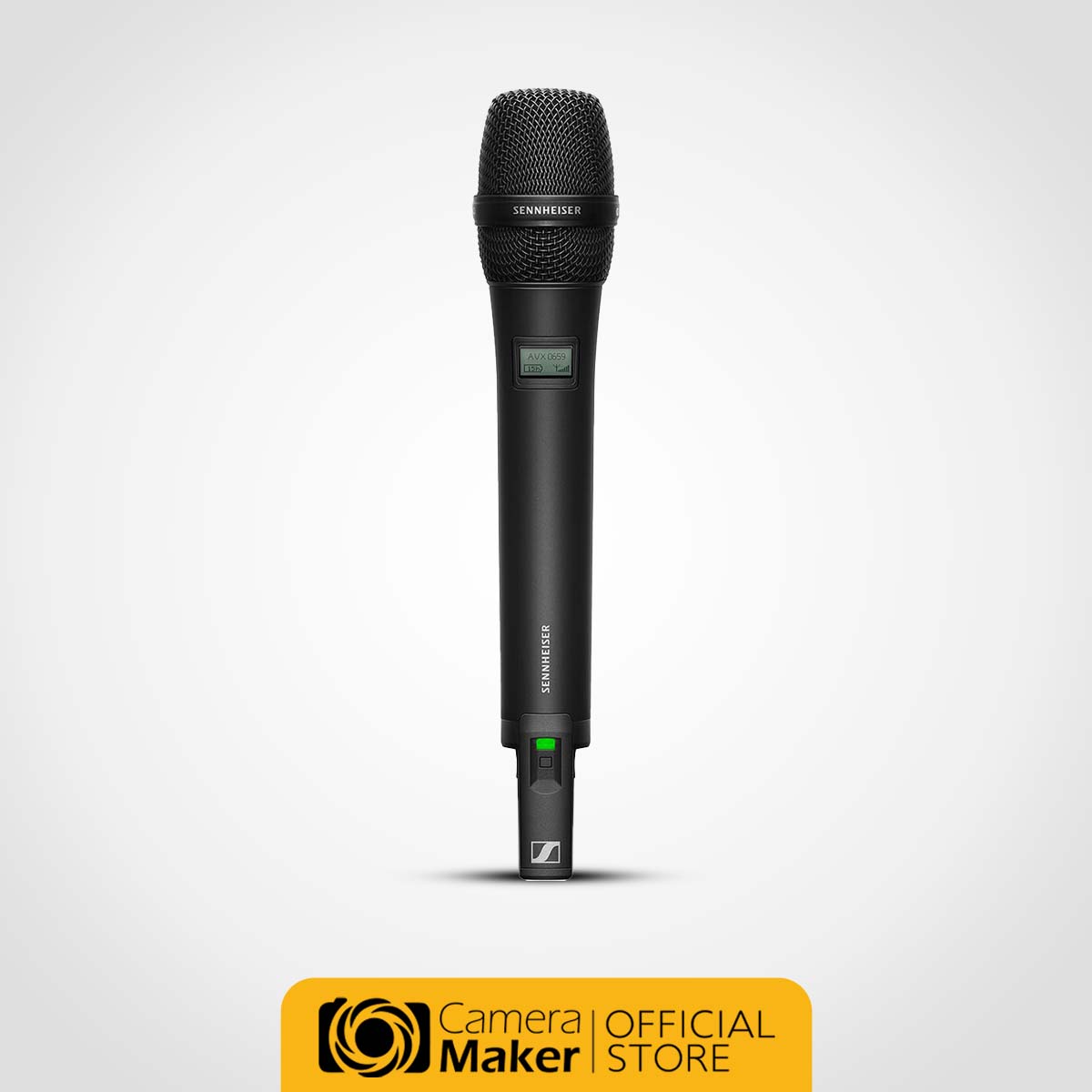

Handheld Transmitter (with MMD 835 capsule)

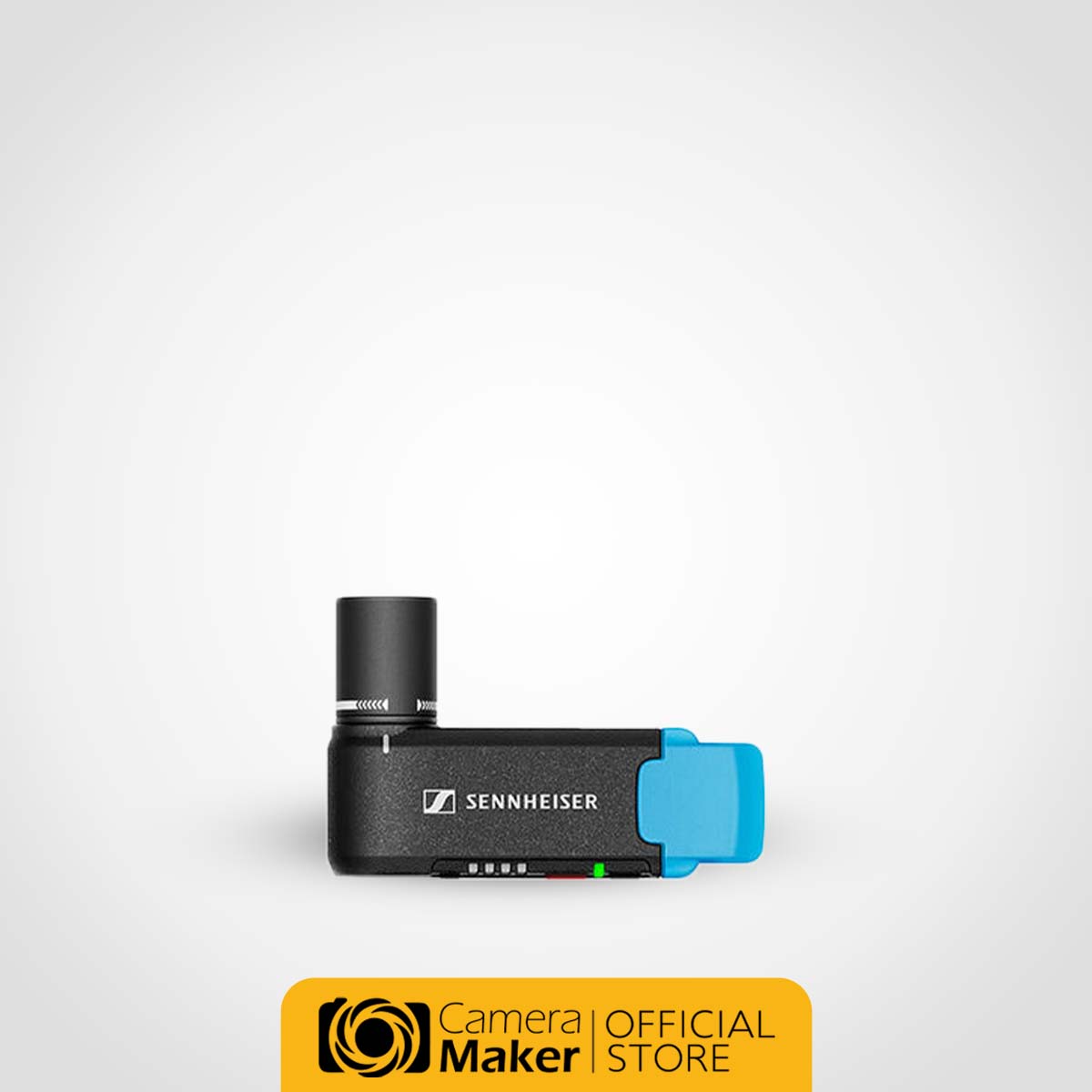

Plug-on Receiver (EKP XLR)
All necessary accessories to operate out of the box with both camcorders and DSLR cameras.
Professional Wedding Videos
Documentaries
Street Interviews
Corporate Videos
| AF Frequency Response | 20 to 20,000 Hz |
| Dynamic Range | > 120 dB (A) |
| Total Harmonic Distortion (THD) | typ. 0.1 % |
| Audio Sampling | 24 bit / 48 kHz |
| Signal-to-Noise Ratio | > 90 dB (A) |
| Modulation | GFSK with back channel |
| Transmission Method | TDMA fast switching antenna diversity |
| Latency | 19 ms |
| RF Frequency Ranges | 1880 – 1900 MHz (-3): Europe, Indonesia, HK, Singapore, Malaysia, Vietnam, Australia, NZ 1920 – 1930 MHz (-4): USA, Canada, Argentina, Mexico 1893 – 1906 MHz (-5): Japan 1880 – 1895 MHz (-6): Taiwan 1910 – 1920 MHz (-7): Brazil |
| Relative Air Humidity |
|
| Temperature Range | Operation: –10 °C to +55 °C / Storage: –20 °C to +70 °C |
| RF Sensitivity | < –90 dBm |
| RF Output Power (Back Channel) | typ. 15 dBm e.i.r.p. |
| Audio Output | XLR, balanced (Adjustable –30 dBu to 0 dBu in 4 steps) |
| Power Supply | BA 20 (Li-Ion 3.7 V) |
| Operating Time | > 4 hours |
| AF Connection Socket | XLR, male |
| Weight | Approx. 87 g (including BA 20) |
| Category | Details |
| RF Output Power | Adaptive, up to 250 mW (country-specific) |
| AF Frequency Response | 50 to 20,000 Hz |
| Input Sensitivity | Automatic sensitivity adjustment |
| Power Supply | Rechargeable: BA 10 (Li-Ion, 3.6 V)
Batteries: 2 x AA size battery (1.5 V) |
| Operating Time | Rechargeable: typ. 15 hours
Batteries: typ. 10 hours |
| Display | LCD |
| Weight | Approx. 282 g (including microphone head, without batteries) |
